Mopa Laser Trolley Fiber Laser Marking Machine 20w Jpt Mopa Fiber Laser Color Marking Machine Metal Stainless Steel

Short Description:

FP-20CS Trolley Fiber Laser Marking Machine has high photoelectric conversion rate, maintenance-free, long service life and high consistency of beam diameter. Especially suitable for high precision and fine marking. Various fine and complex patterns required by users can be marked on extremely small surfaces.


Product Detail

Product Tags

Product Advantages

It is suitable for all metal materials such as steel, iron, copper, aluminum, gold, silver, etc., and some non-metal materials including PC, ABS, etc. Mainly used in electronic products, hardware sanitary ware, clocks, jewelry and other fields that require high smoothness and fineness.

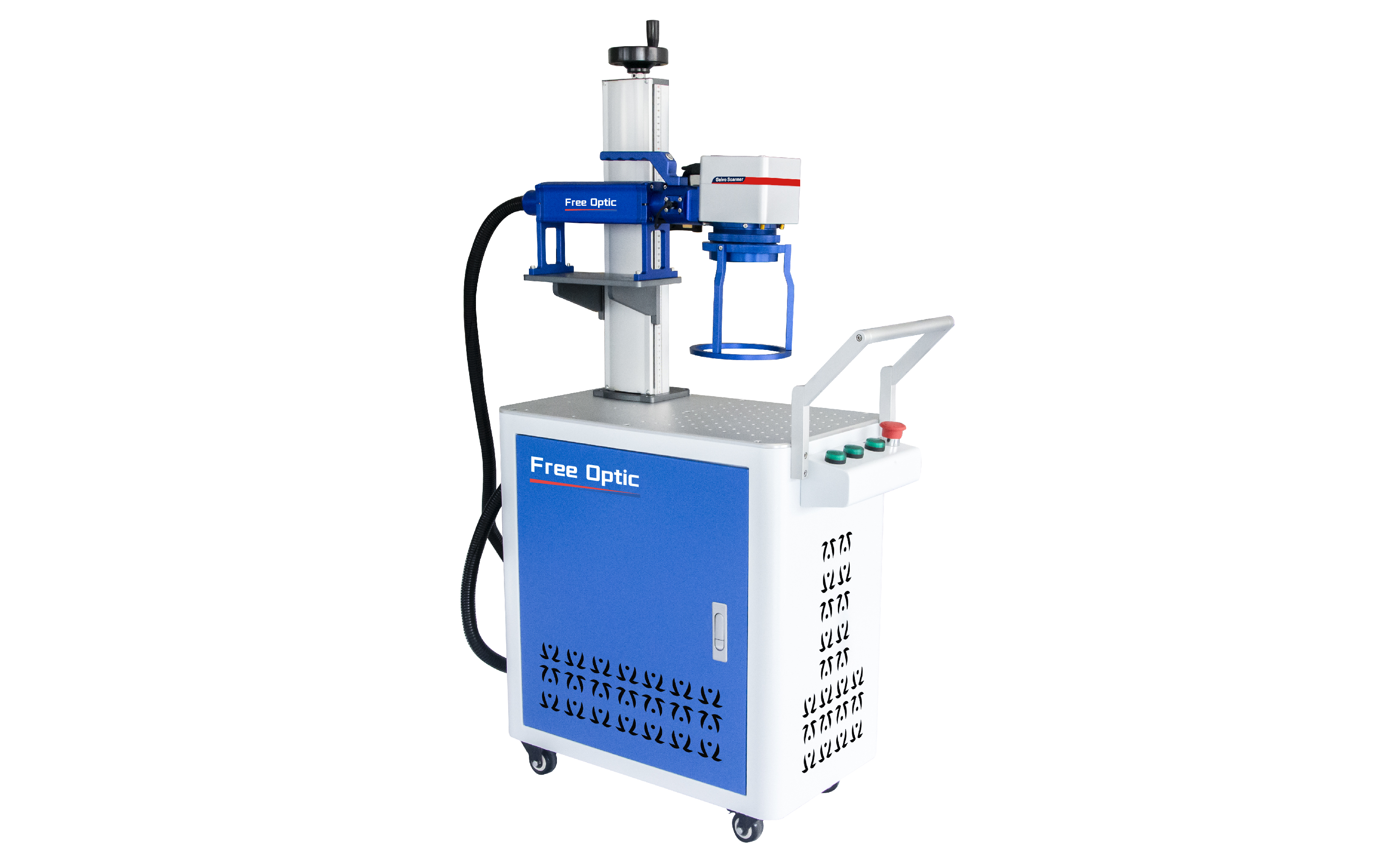

小推车2023_画板 1

Technical Parameters

FP-30CS Fiber Laser Marking Machine Technical Parameters
1 Model FP-30CS
2 Beam quality M': < 1.5 (TE MOO M)
3 Average output power 30W ( 20W, 50W, 100W optional)
4 Marking speed  ≥12000mm/s
5 Laser wavelength 1064nm
6 Laser repetition frequency range 30khz-100khz (adjustable)
7 Character size 0.2mmx0.2mm
8 Output spot diameter 0.017mm
9 Marking range 110x110mm (standard)
Optional: 150x150mm, 175x175mm
10 Repeatability 0.01mm
11 Output fiber length 3M
12 Power adjustment range 10-100%
13 Total power  ≤500W
14 Cooling system Air cooling
15 Output power stability 0-4℃
16 Power supply AC220V±10%, 50hz/60hz
17 File format BMP/DXF/PLT/JPEG/HPGL

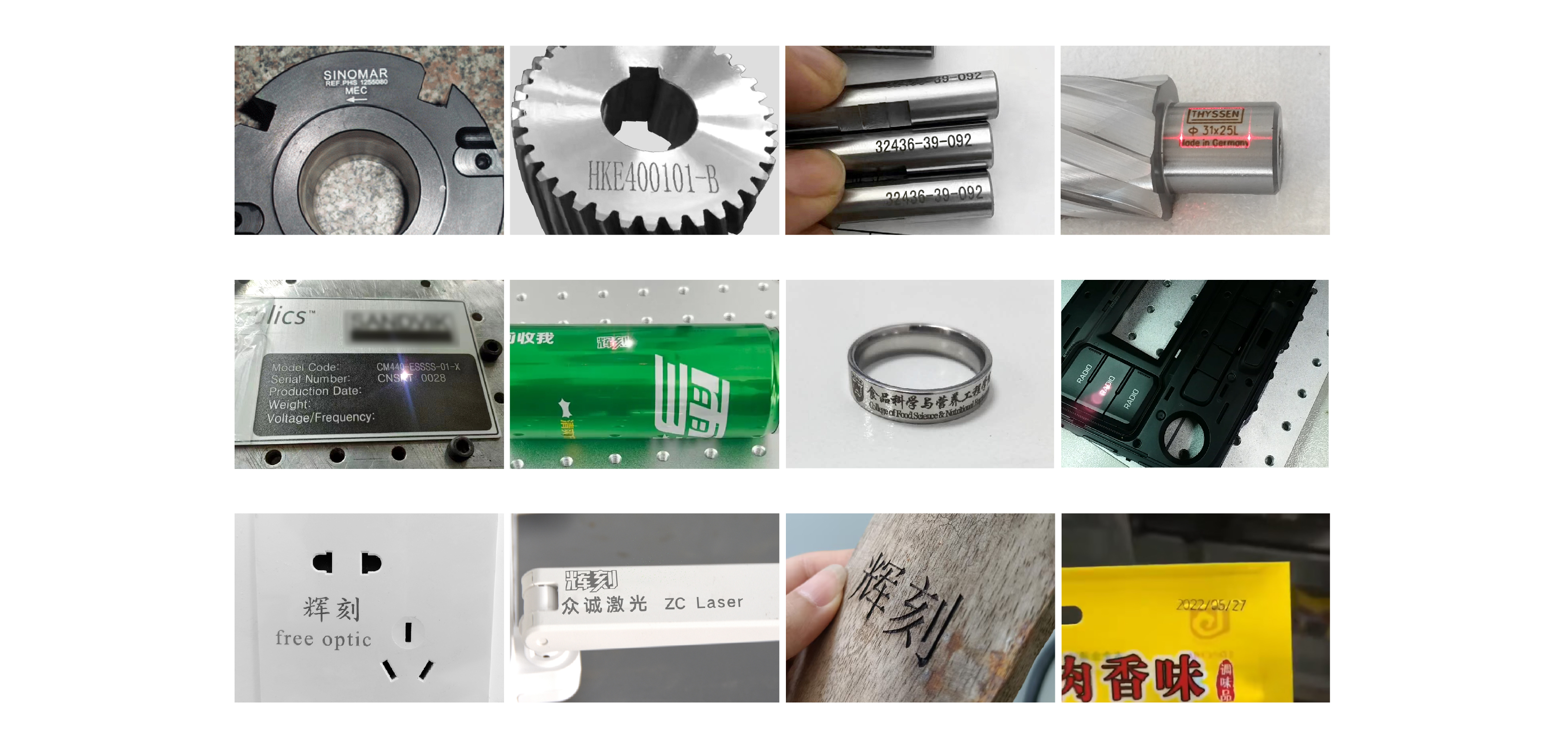

Scope Of Application

Application scope of fiber laser
marking materials

小推车2023_画板 1 副本

Product Characteristics

main (1)

Wide range of applications
Can mark all metals, rigid plastics, various coated products. It can mark graphics, QR codes, serial number marking, support all fonts, support network communication and secondary development of some special functions.

Permanent marker
Laser marking is a marking method that uses a high-energy-density laser to locally irradiate the workpiece to vaporize the surface material or undergo a chemical reaction of color change, thereby leaving a permanent mark.

Marking speed is fast
Using high-speed digital galvanometer, it can carry out assembly line flight marking.

Maintenance free
Because the equipment uses advanced fiber lasers, it has high photoelectric conversion efficiency, is easy to use, does not require optical adjustment or maintenance, has a compact structure, high system integration, and fewer failures.

Product Detail

Easy Operation
With the basics of computer use, you can start to operate the machine within 30 minutes of training.e use.

Easy maintenance
The whole machine adopts a modular assembly method, and each component can be disassembled independently, which is convenient for fault diagnosis and later maintenance.

Low failure rate
Each component adopts the domestic first-line brand to ensure the stability of the product, and the 48-hour aging test method can be packaged and shipped before leaving the factory.

Red light positioning
Using red light positioning system, convenient positioning and high positioning accuracy.

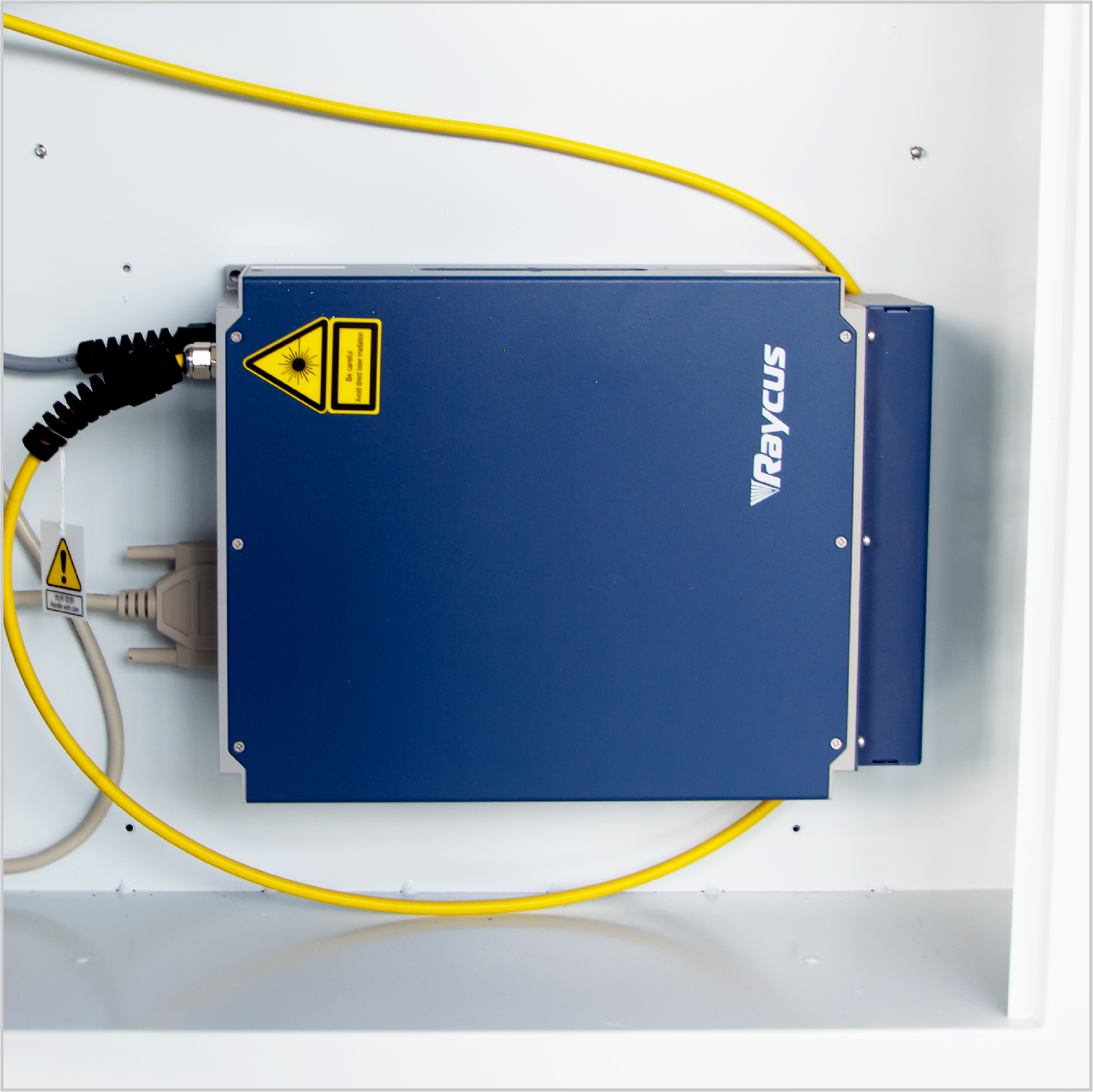

1-laser source

Laser source we use RAYCUS famous brand laser source, high stability, long life, no consumables.This is the key part of fiber laser marking machine.

2-Galvo head

High speed galvanometer scanning head adopts scanning laboratory technology, digital signal, high precision.

3-Ftheta lens

Smart f theta lens with working area 110*110,200 * 200,300 x 300(mm)
The fiber laser beam through its focus to the work piece surface, so the energy is enough.This optical accessories control marking area.Using high performance photoelectric digital mirror, excellent performance

4-EZCAD control card

Famous brand directional EZCAD control system, easy to operate.Humanized operation system is simple and
convenient for laser power, frequency, marking speed modulation. Compatible vector graphics commonly used (AI, DXF, DWG, PLT etc.)
compatible with commonly used graphics format (BMP, JPG, JIF... Etc..) bar code, two-dimensional code, serial number, line
marking, rotary marking and other complex processing. Additional red light indicates, easy contraposition and simulated marking.

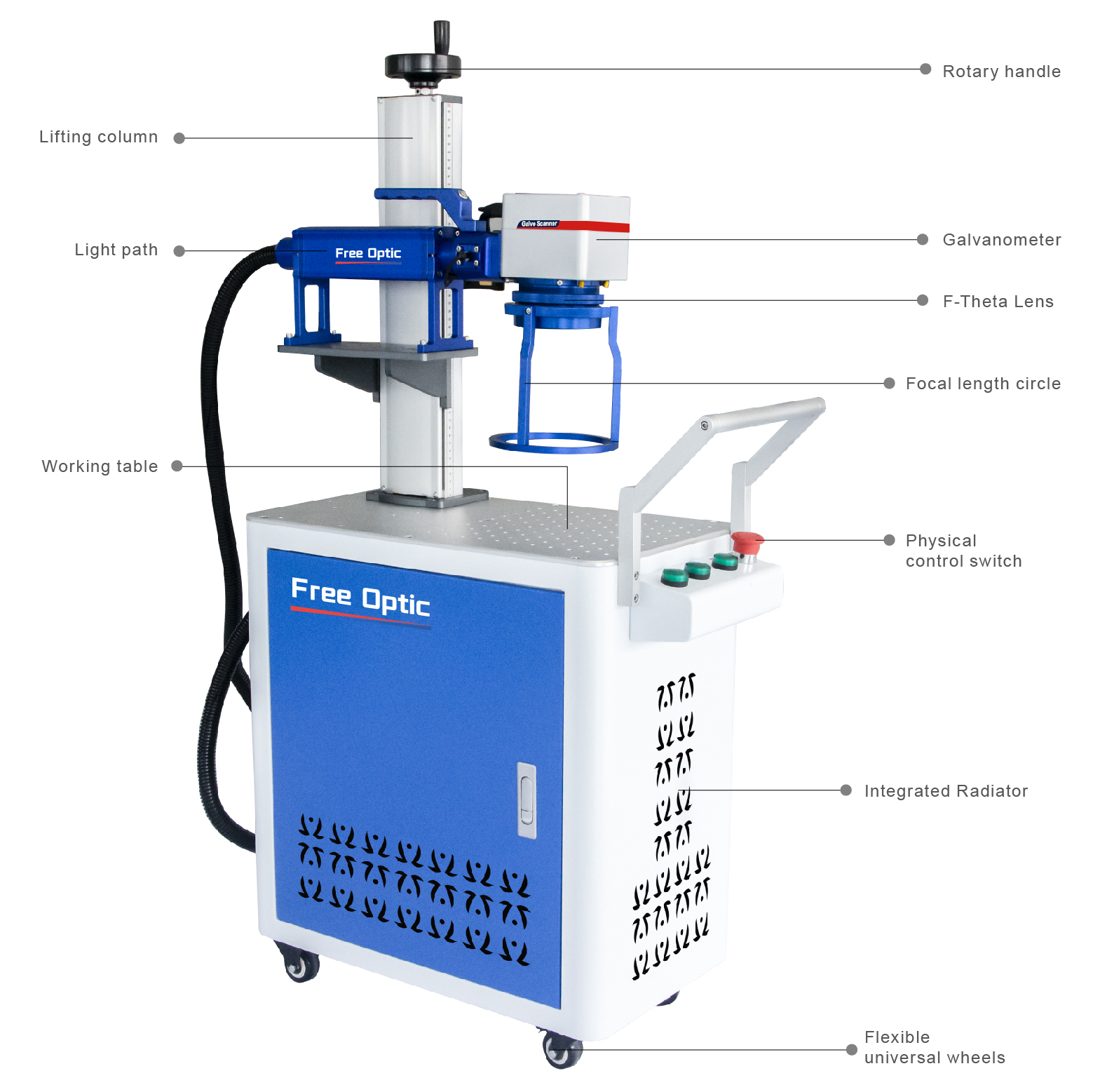

小推车2023_画板 1 副本 3

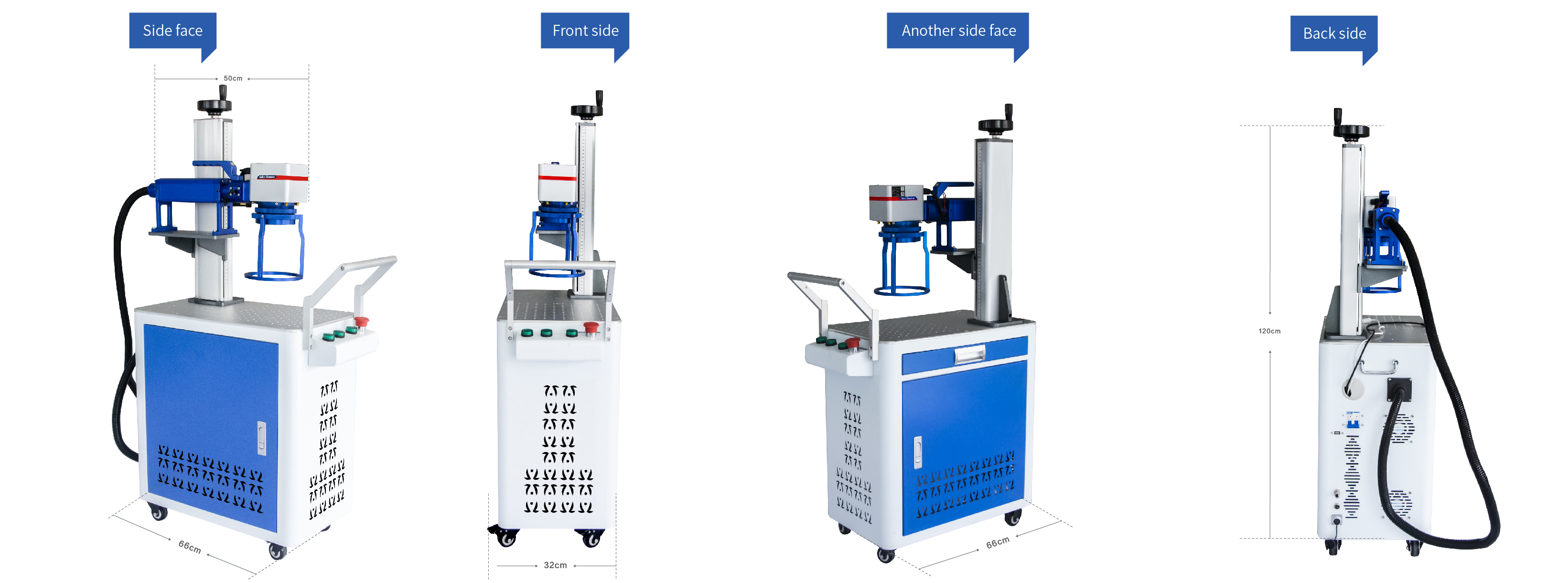

小推车2023_画板 1 副本 4

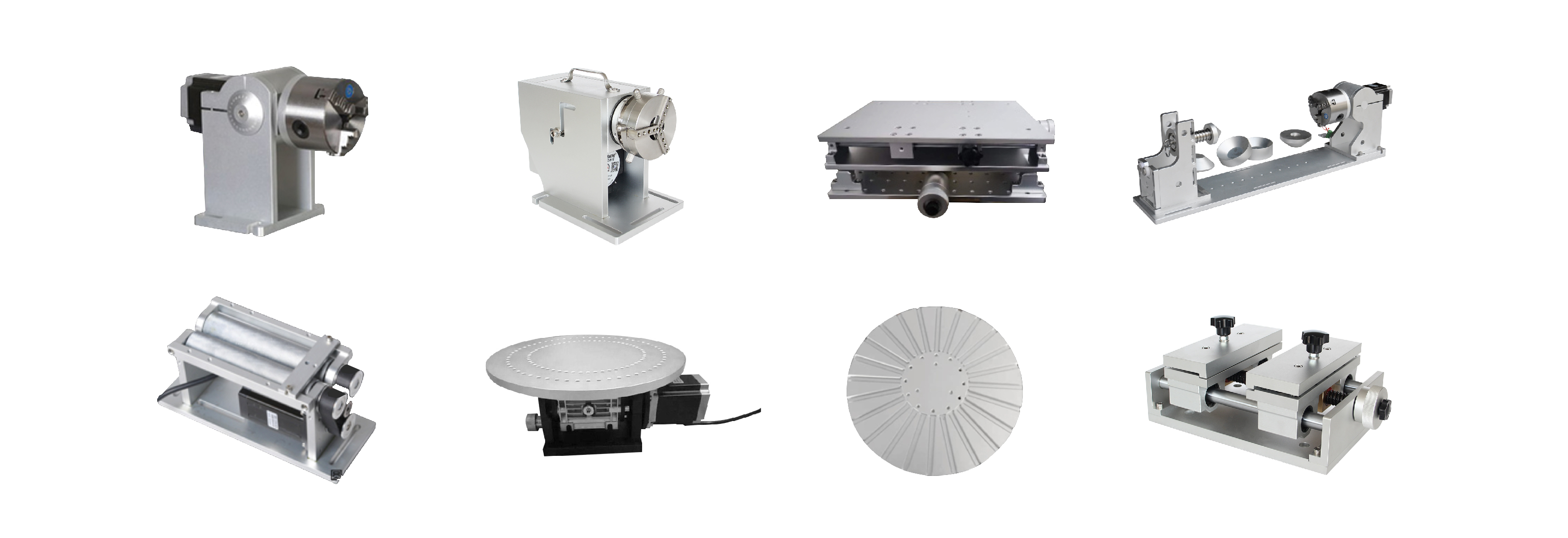

Configuration Options

小推车2023_画板 1 副本 5

Machine Details Display

小推车2023_画板 1 副本 6

High-speed digital galvanometer
Double red focus

 High Transparency F-theta Lens
The light spot is finer, the anti-dirty coating is wear-resistant and anti-corrosion, and the focus is clear

桌面打标机-最新_画板 1 副本 7
小推车2023_画板 1 副本 8

Portable and flexible
Easy to carry removable installation and portable marking

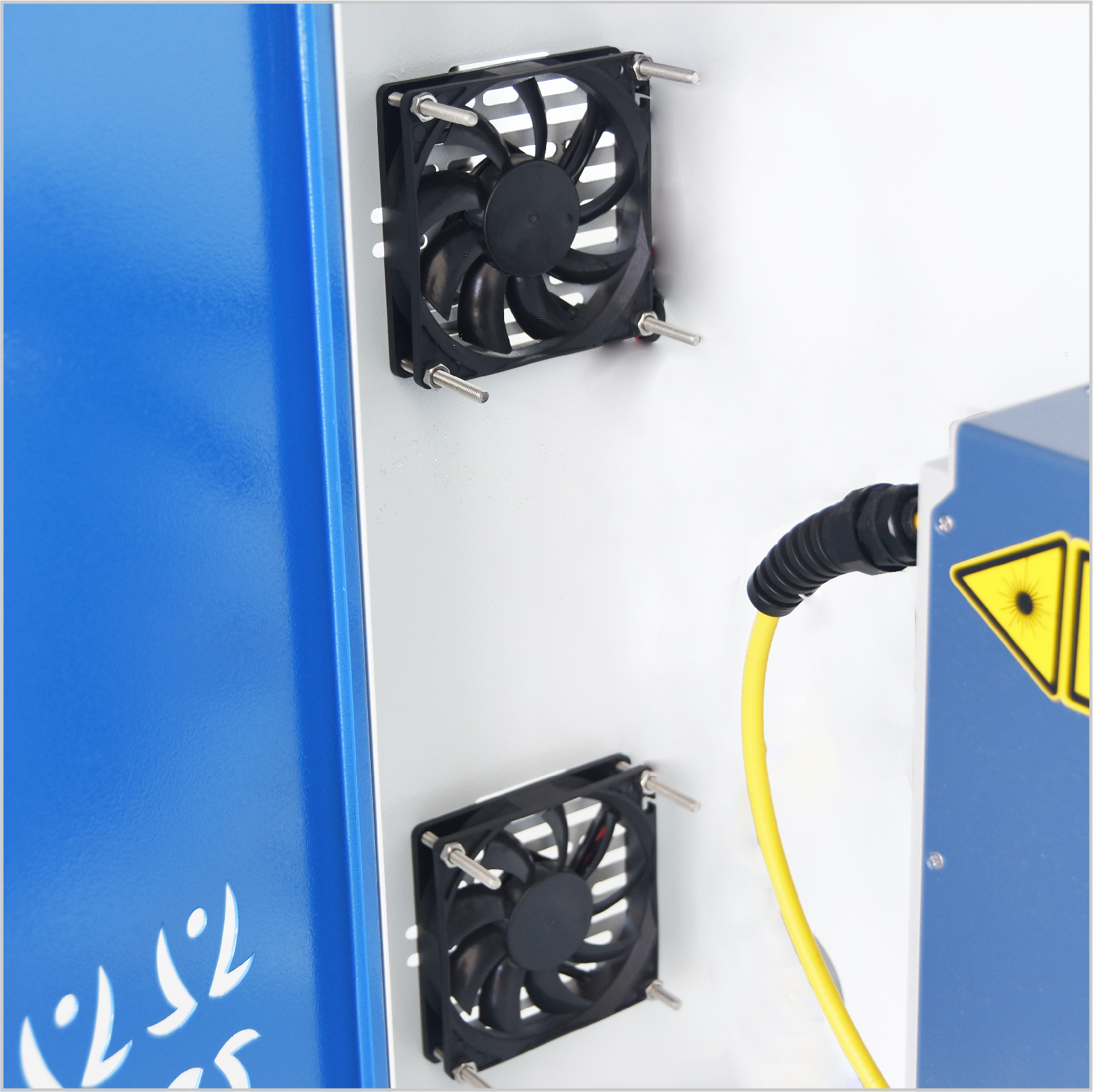

Built-in cooling system
Easily cope with high temperature and high humidity working environment

小推车2023_画板 1 副本 9
小推车2023_画板 1 副本 10

Modular chassis design
Easily troubleshoot and resolve equipment failures
