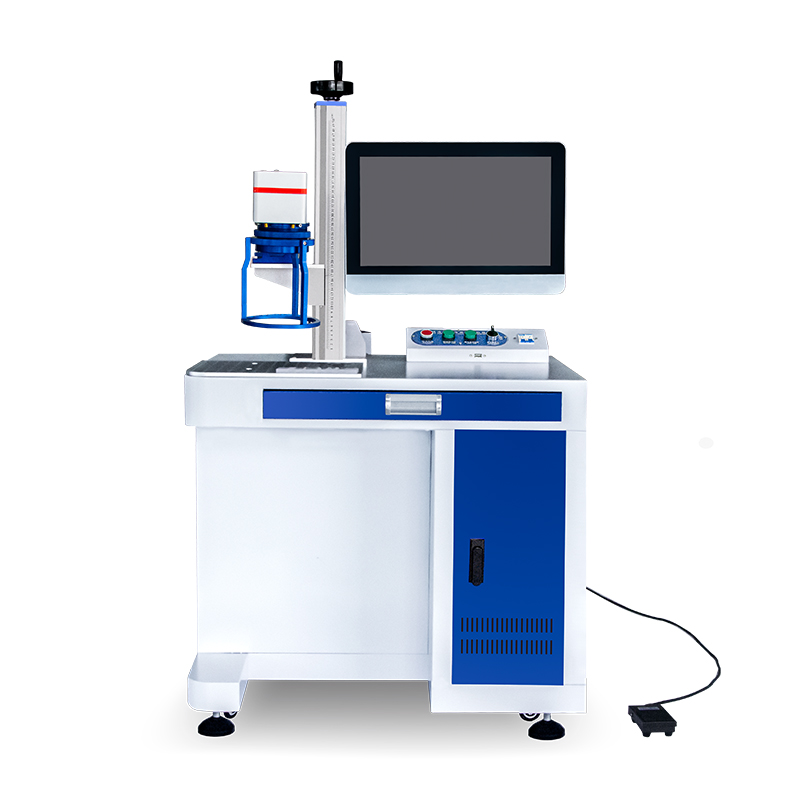

Portable and Handheld Laser Fiber Laser Engraving Machine Stand Desktop Fiber Laser Marking Machine

Short Description:

FP-20TS handheld desktop fiber laser marking machine has high photoelectric conversion rate, maintenance-free, long service life and high consistency of beam diameter. Especially suitable for high precision and fine marking. Various fine and complex patterns required by users can be marked on extremely small surfaces.


Product Detail

Product Tags

Product Advantages

It is suitable for all metal materials such as steel, iron, copper, aluminum, gold, silver, etc., and some non-metal materials including PC, ABS, etc. Mainly used in electronic products, hardware sanitary ware, clocks, jewelry and other fields that require high smoothness and fineness.

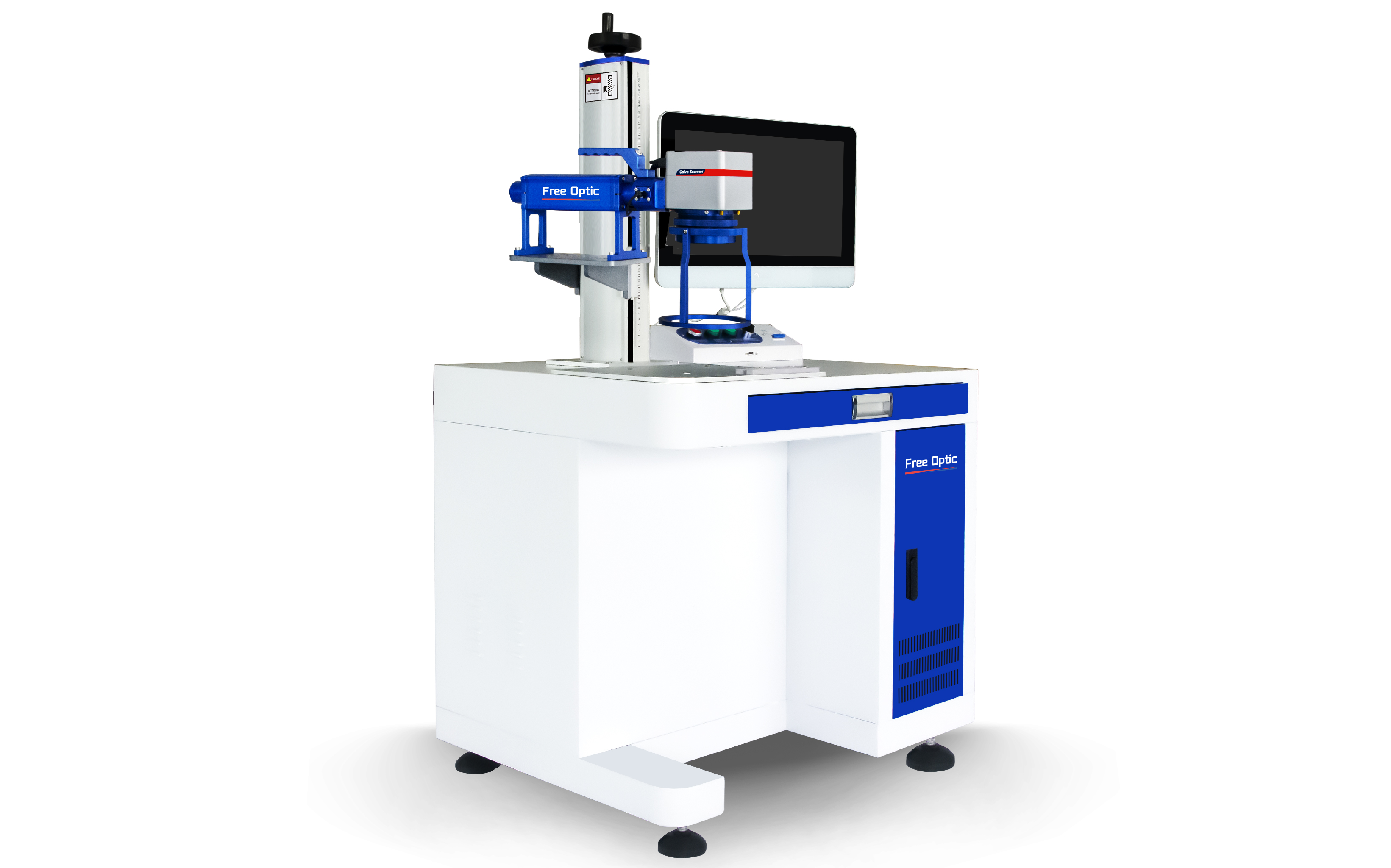

手持台式2023_画板 1

Technical Parameters

FP-30TS Fiber Laser Marking Machine Technical Parameters
1 Model FP-30TS
2 Beam quality M': < 1.5 (TE MOO M)
3 Average output power 30W ( 20W, 50W, 100W optional)
4 Marking speed  ≥12000mm/s
5 Laser wavelength 1064nm
6 Laser repetition frequency range 30khz-100khz (adjustable)
7 Character size 0.2mmx0.2mm
8 Output spot diameter 0.017mm
9 Marking range 110x110mm (standard)
Optional: 150x150mm, 175x175mm
10 Repeatability 0.01mm
11 Output fiber length 3M
12 Power adjustment range 10-100%
13 Total power  ≤500W
14 Cooling system Air cooling
15 Output power stability 0-4℃
16 Power supply AC220V±10%, 50hz/60hz
17 File format BMP/DXF/PLT/JPEG/HPGL

Scope Of Application

Application scope of fiber laser
marking materials

手持台式2023_画板 1 副本

Product Characteristics

main

Wide range of applications
Can mark all metals, rigid plastics, various coated products. It can mark graphics, QR codes, serial number marking, support all fonts, support network communication and secondary development of some special functions.

Permanent marker
Laser marking is a marking method that uses a high-energy-density laser to locally irradiate the workpiece to vaporize the surface material or undergo a chemical reaction of color change, thereby leaving a permanent mark.

Marking speed is fast
Using high-speed digital galvanometer, it can carry out assembly line flight marking.

Maintenance free
Because the equipment uses advanced fiber lasers, it has high photoelectric conversion efficiency, is easy to use, does not require optical adjustment or maintenance, has a compact structure, high system integration, and fewer failures.

Product Detail

Easy Operation
With the basics of computer use, you can start to operate the machine within 30 minutes of training.e use.

Low environmental requirements
0.5M², the whole machine is small and compact, and can adapt to harsh processing environments.

No consumables required
No need for any consumables, non-toxic, no environmental pollution, high environmental protection

Red light positioning
Using red light positioning system, convenient positioning and high positioning accuracy.

Extensions
Can be extended with additional functions. Such as circular marking, X Y electric workbench, automatic feeding flight marking, etc.

Computer program
Marking is carried out automatically, marking English, numbers, Chinese characters, graphics, and the printing content can be changed arbitrarily.

1. What should I do if I can't operate the machine for the first time?
Please don’t worry, the machine operation is very simple.
The operation video and usage manual will be provided with the machine together.
Our engineer will do training online if you need.

2. If the order is confirmed, how soon can it be shipped?
According to the quantity ordered. For less than 5 marking machines order, we can guarantee delivery within 7 working days.

~ai-a3bcb663-1c56-417f-bd84-75722c484645_
手持台式2023_画板 1 副本 4

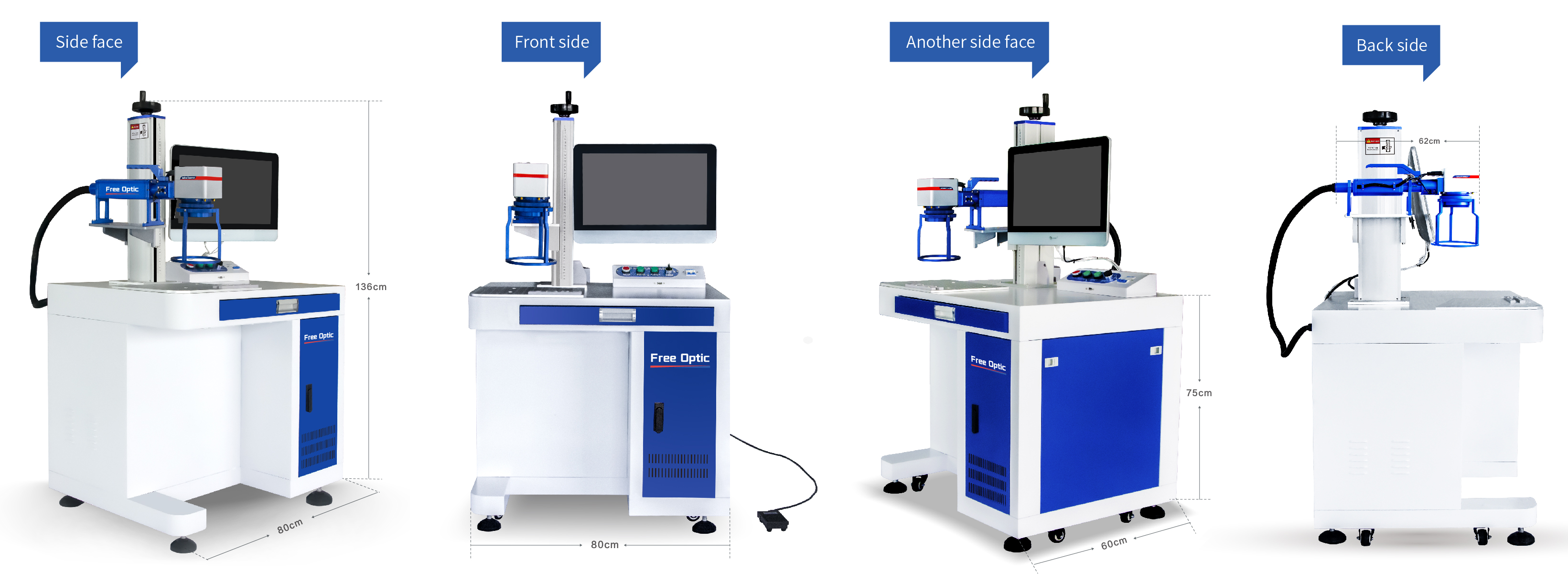

Configuration Options

手持台式2023_画板 1 副本 5

Machine Details Display

手持台式2023_画板 1 副本 6

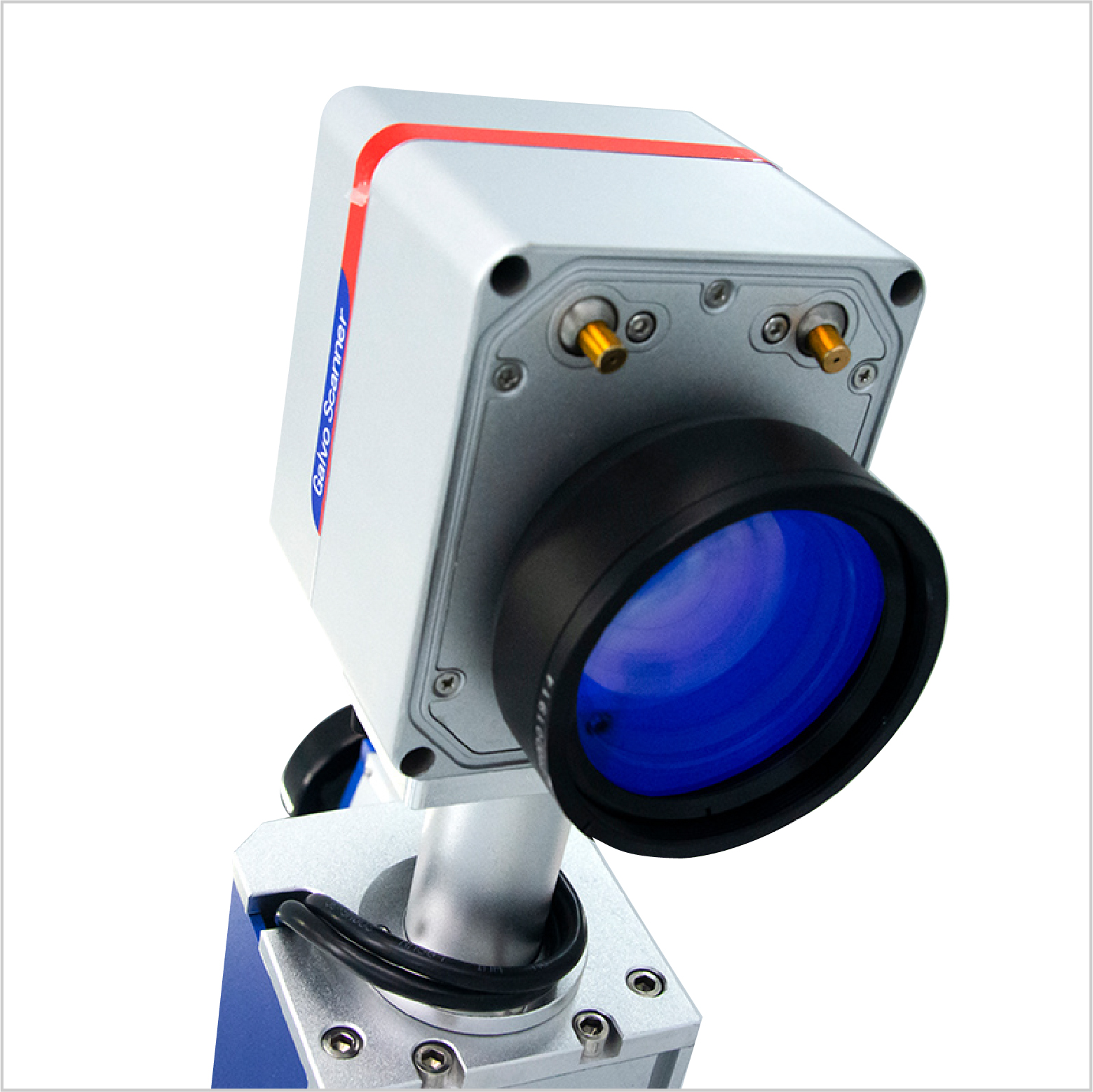

High-speed digital galvanometer
Double red focus

High Transparency F-theta Lens
The light spot is finer, the anti-dirty coating is wear-resistant and anti-corrosion, and the focus is clear

手持台式2023_画板 1 副本 7
手持台式2023_画板 1 副本 8

Anodized aluminum working table
Full anodized aluminum technology, fine polishing, stable work, craftmanufacturing

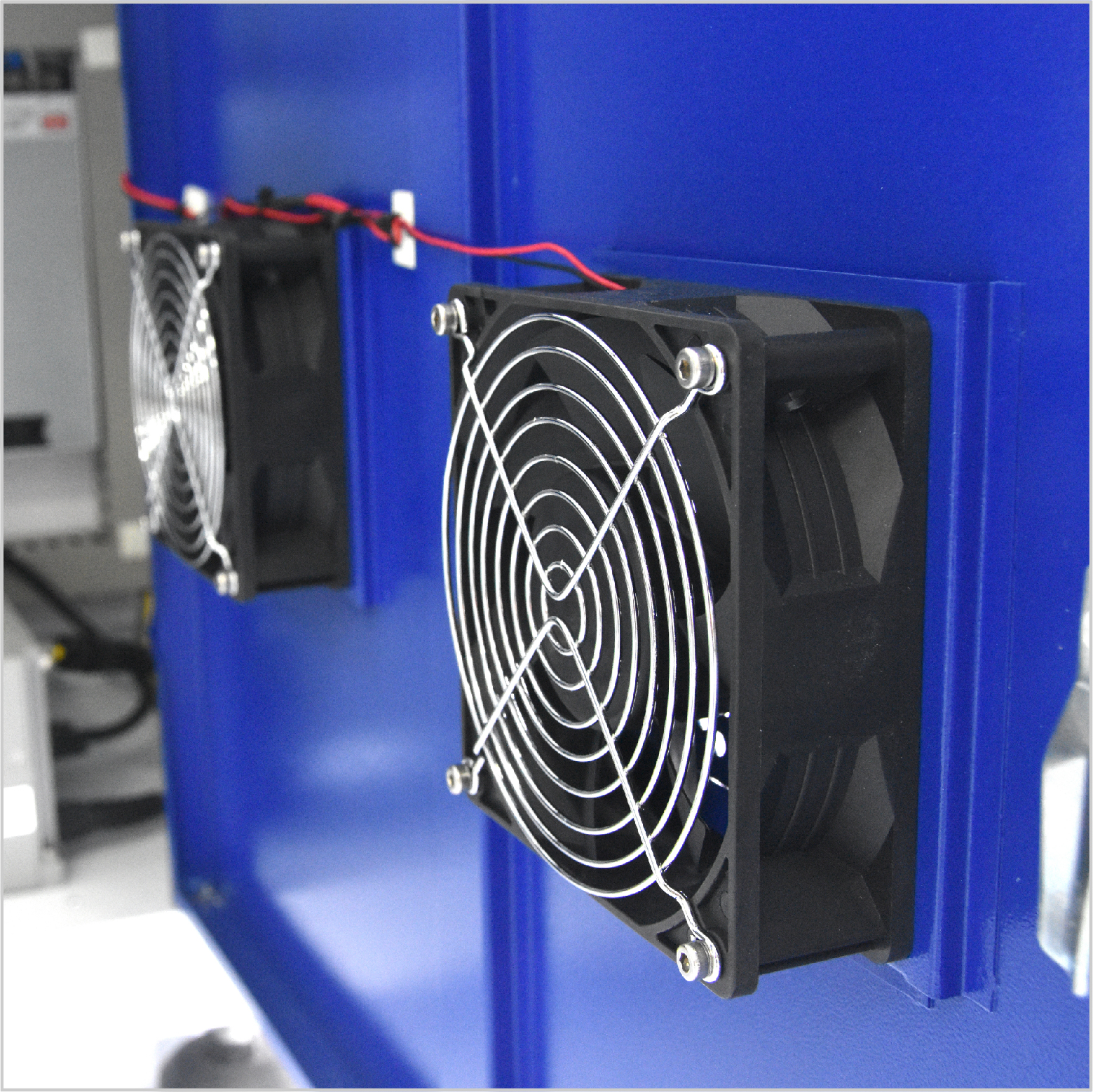

Built-in cooling system
Easily cope with high temperature and high humidity working environment

手持台式2023_画板 1 副本 9
手持台式2023_画板 1 副本 10

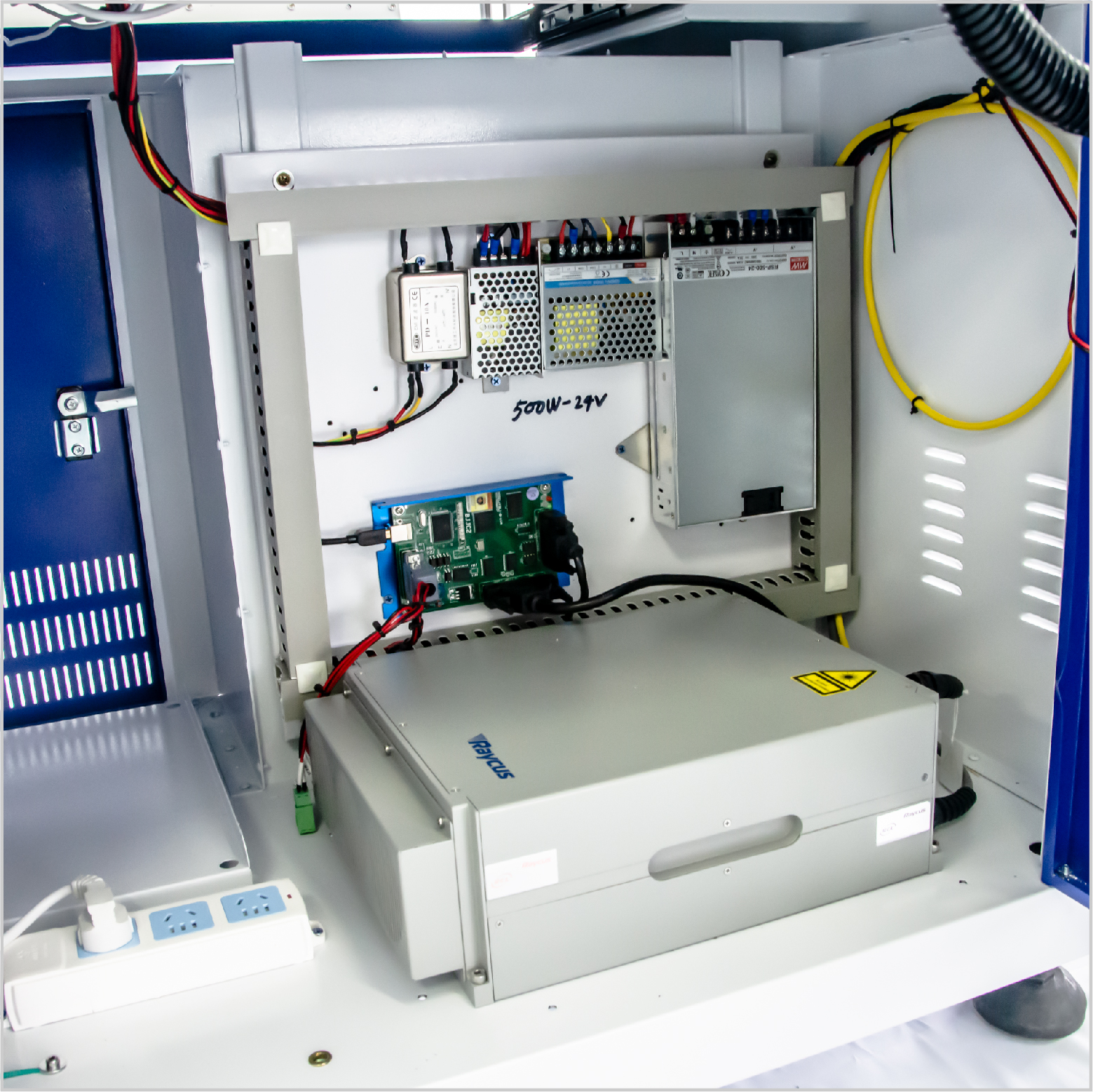

Modular chassis design
Easily troubleshoot and resolve equipment failures
