Portable Mini Handheld 20W 30W Fiber Laser Marking Machine for Sale Factory Directly Price Laser Marker Engraving

Short Description:

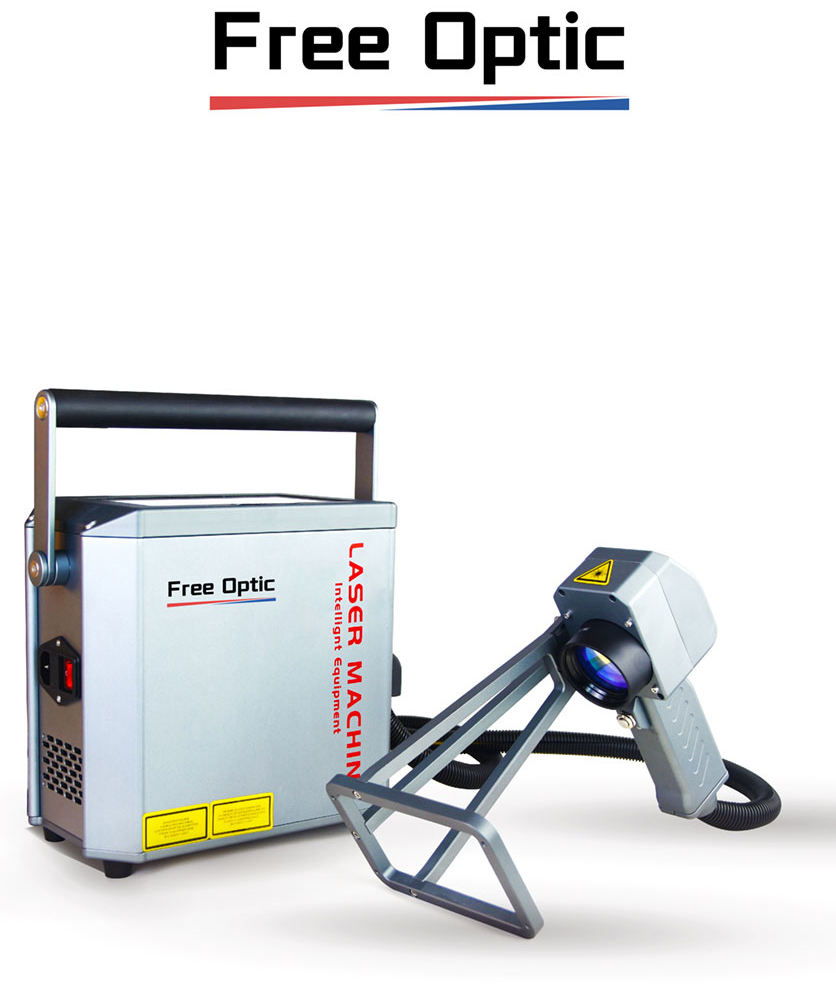

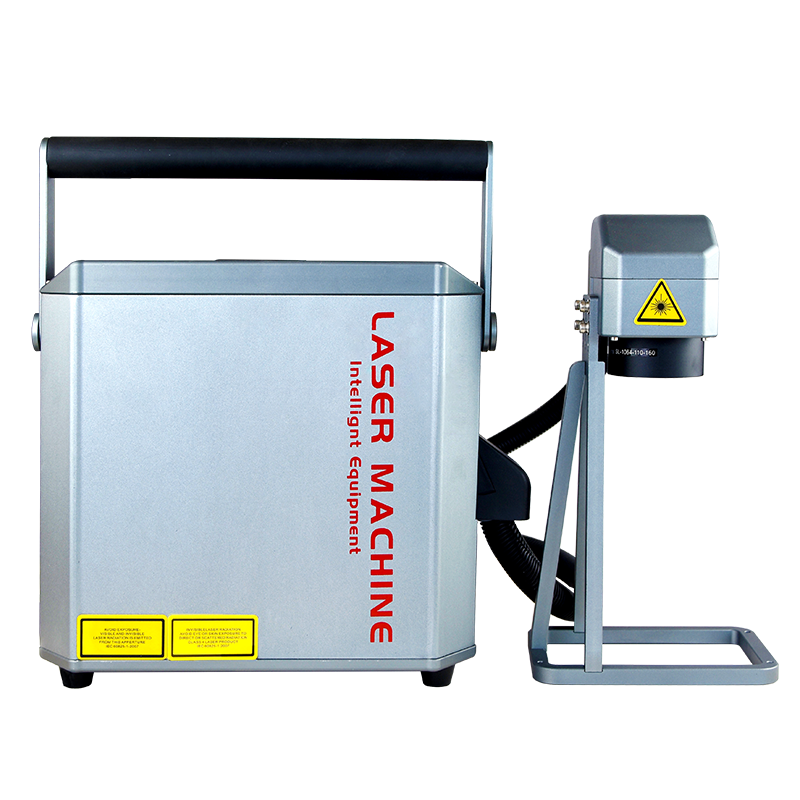

Compared with other models, FP-20XS small handheld laser marking machine is smaller and more portable. It breaks through the limitations of traditional engraving. It is suitable for various usage scenarios and can be customized anytime and anywhere. The overall body is made of all-aluminum material, which is durable , not damaged by external forces, intelligent operating system, simple marking interface, customized power supply, long cruise travel with you. It can be used continuously for more than 6 hours after fully charged. The machine has low power consumption, maintenance-free, long service life, and high consistency of beam diameter. Especially suitable for high precision and fine marking. Various fine and complex patterns required by users can be marked on extremely small surfaces.

Product Detail

Product Tags

Product Advantages

It is suitable for all metal materials such as steel, iron, copper, aluminum, gold, silver, etc., and some non-metal materials including PC, ABS, etc. Mainly used in electronic products, hardware sanitary ware, clocks, jewelry and other fields that require high smoothness and fineness.

小型手持2023_画板 1

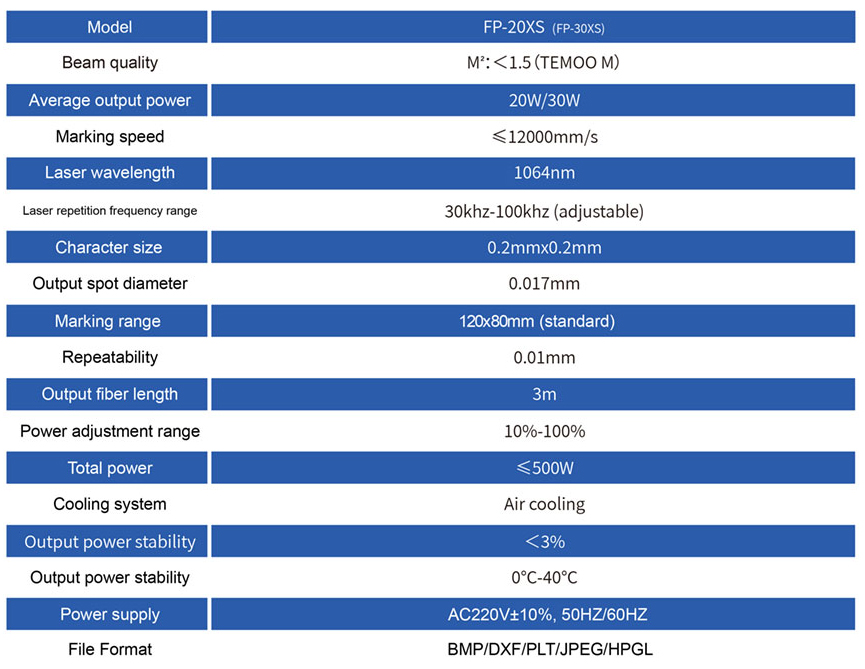

Technical Parameters

FP-30XS Mini Handheld Fiber Laser Marking Machine
1 Model FP-30XS
2 Beam quality M': < 1.5 (TE MOO M)
3 Average output power 30W ( 20W & 50W power optional)
4 Marking speed  ≥12000mm/s
5 Laser wavelength 1064nm
6 Laser repetition frequency range 30khz-100khz (adjustable)
7 Character size 0.2mmx0.2mm
8 Output spot diameter 0.017mm
9 Marking range 120x75mm (standard), 110x110mm, 150x150mm
10 Repeatability 0.01mm
11 Output fiber length 3M
12 Power adjustment range 10-100%
13 Total power  ≤500W
14 Cooling system Air cooling
15 Output power stability 0-4℃
16 Power supply AC220V±10%, 50hz/60hz
17 File format BMP/DXF/PLT/JPEG/HPGL

Scope Of Application

Application scope of fiber laser
marking materials

小型手持2023_画板 1 副本

Product Characteristics

小型手持2023_画板 1 副本 2

Wide range of applications
Can mark all metals, rigid plastics, various coated products. It can mark graphics, QR codes, serial number marking, support all fonts, support network communication and secondary development of some special functions.

Permanent marker
Laser marking is a marking method that uses a high-energy-density laser to locally irradiate the workpiece to vaporize the surface material or undergo a chemical reaction of color change, thereby leaving a permanent mark.

Marking speed is fast
Using high-speed digital galvanometer, it can carry out assembly line flight marking.

Maintenance free
Because the equipment uses advanced fiber lasers, it has high photoelectric conversion efficiency, is easy to use, does not require optical adjustment or maintenance, has a compact structure, high system integration, and fewer failures.

Product Detail

Easy Operation
With the basics of computer use, you can start to operate the machine within 30 minutes of training.e use.

Easy maintenance
The whole machine adopts a modular assembly method, and each component can be disassembled independently, which is convenient for fault diagnosis and later maintenance.

Low failure rate
Each component adopts the domestic first-line brand to ensure the stability of the product, and the 48-hour aging test method can be packaged and shipped before leaving the factory.

Low environmental requirements
0.5M², the whole machine is small and compact, and can adapt to harsh processing environments.

No consumables required
No need for any consumables, non-toxic, no environmental pollution, high environmental protection

1. Is the packaging safe for international long-distance transportation?
We will use the standard export wooden cases sponge filled inside for packing protection.
The machine is covered by plastic film for waterproof. Then covered by foam to protect the machine from shaking. And the outside, we adopt the standard export wooden cases.
Regardless of international express, air or sea transportation, we will try our best to protect the machine from damage during transportation.

2. If the order is confirmed, how soon can it be shipped?
According to the quantity ordered. For less than 5 marking machines order, we can guarantee delivery within 7 working days.

小型手持2023_画板 1 副本 3
小型手持2023_画板 1 副本 4

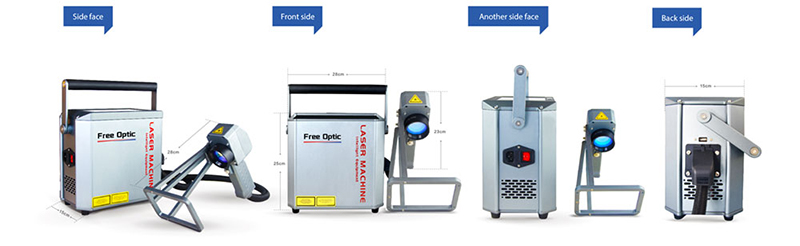

Configuration Options

小型手持2023_画板 1 副本 5

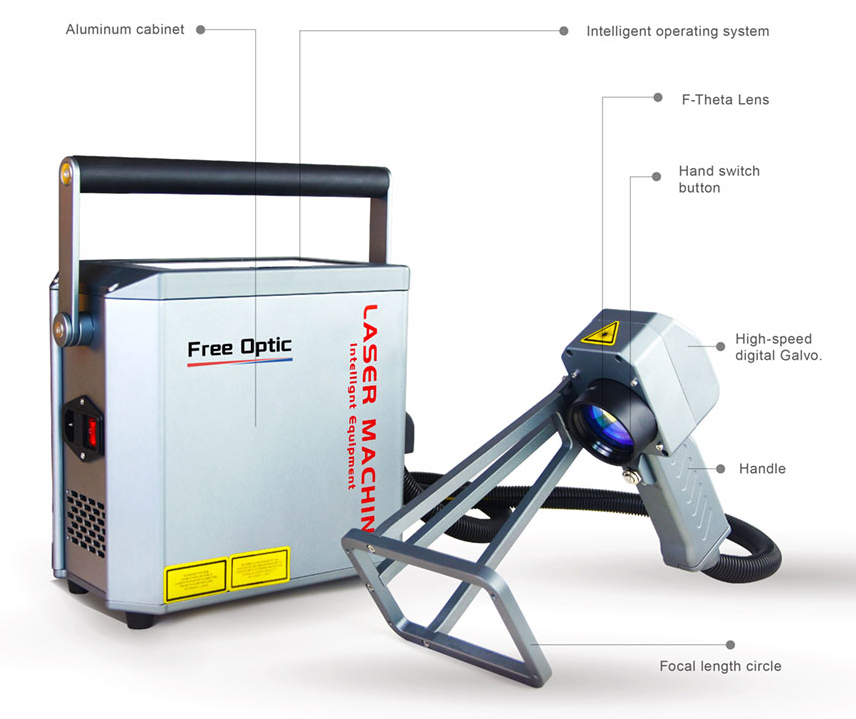

Machine Details Display

小型手持2023_画板 1 副本 6

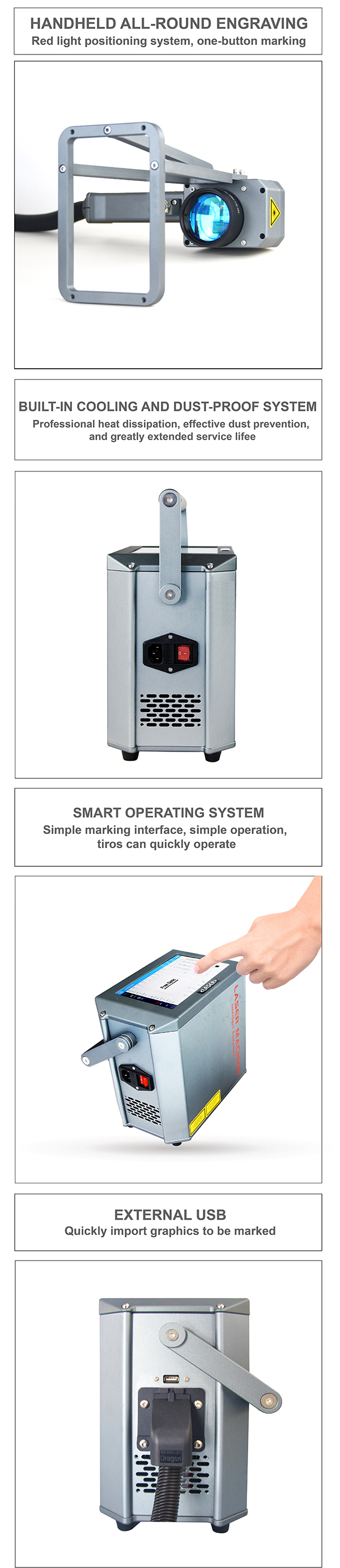

Handheld all-round engraving
Red light positioning system, one-button marking

Built-in cooling and dust-proof system
Professional heat dissipation, effective dust prevention, and greatly extended service lifee

小型手持2023_画板 1 副本 7
小型手持2023_画板 1 副本 8

Smart operating system
Simple marking interface, simple operation, tiros can quickly operate

External USB
Quickly import graphics to be marked

小型手持2023_画板 1 副本 9
