Máquina de grabado y corte láser de CO2 de alta velocidad 1390 1313
Product Introduction

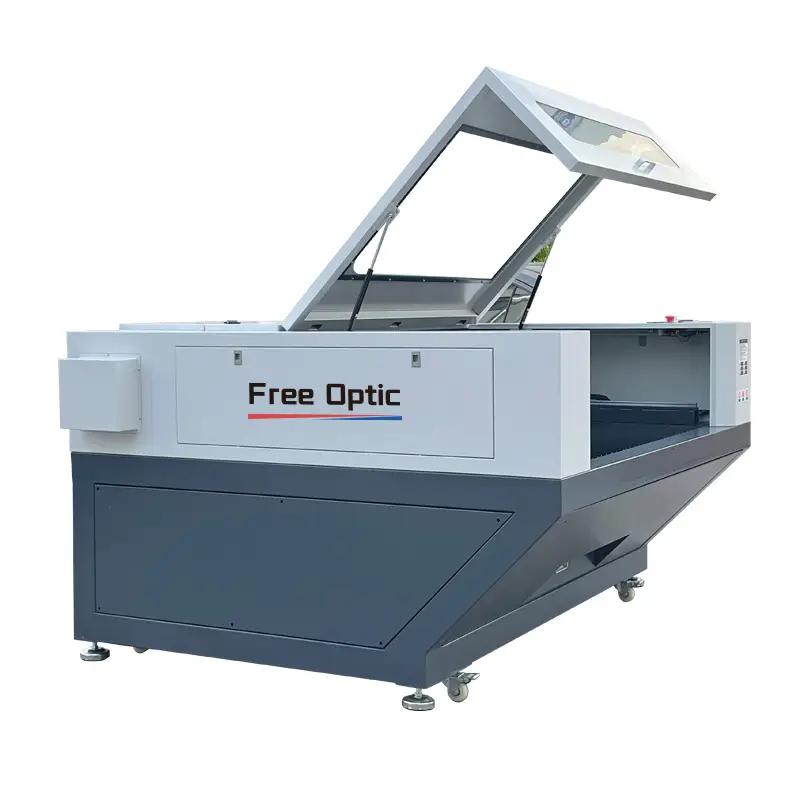

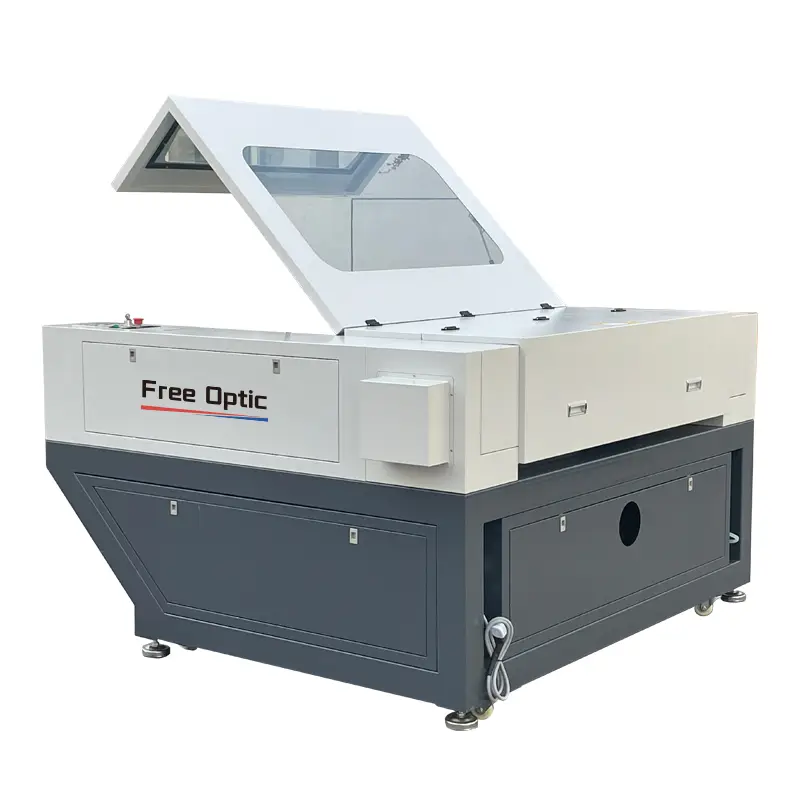

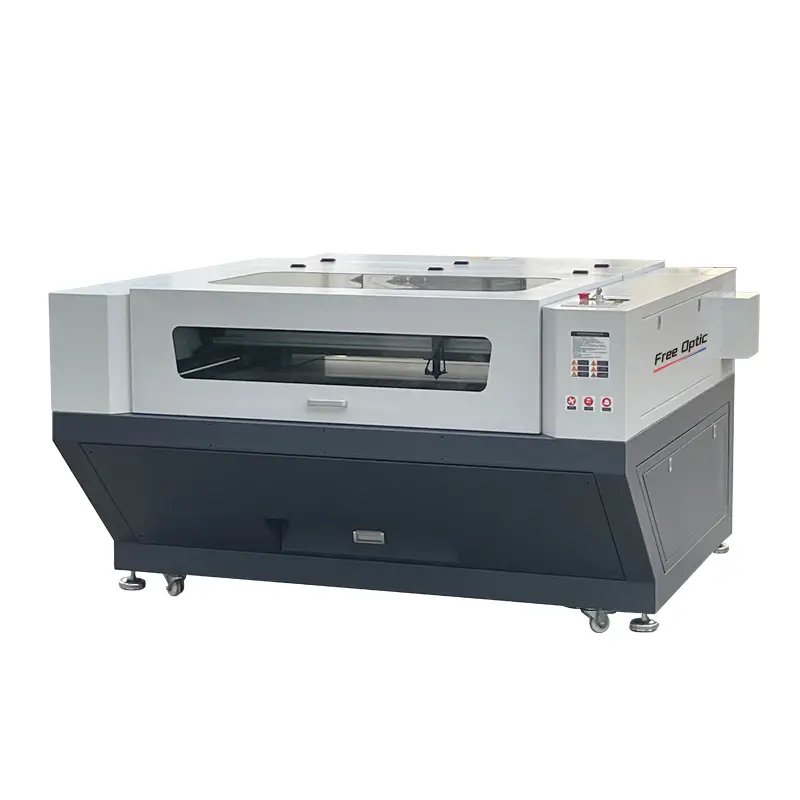

FP1390 1313 CO2 Laser Engraving Cutting Machine
XYZ axis all adopt ball screw drive
Machine tool level high precision,industrial reliability
Japanese brand servo motor,international first-line brand transmission accessories
Industrial design, developed by expert team
Meet the needs of whole plate precision cutting,optional CCD visual positioning fuction
Unlock creativity and productivity with our advanced máquina de grabado láser en madera—designed specifically for wood, acrylic, plastic, foam board and a wide variety of non-metallic substrates. It’s part of our complete suite of Máquinas de marcado por láser which enables solutions across marking, engraving, cutting and customization workflows.
This machine features CO₂ laser technology and a generous working area (e.g., 1250 × 900 mm or 1250 × 1250 mm depending on configuration). With high precision drive systems and industrial-grade servo components it delivers strong performance for both engraving and cutting. The product sheet lists material compatibility including wood board, density board, sandwich board, leather, film, plastic, and more.
For users seeking broader applications, we also provide comprehensive máquina de grabado láser options, which combine both engraving and light-cutting functionality across multiple materials.
Key Benefits:
-
Versatility: Ideal for wood and other substrates such as acrylic, foam board, leather and plastic—perfect for signage, craft production, exhibition displays, decoration, model craft and more.
-
Precision and speed: Thanks to ball-screw drive, high precision control and advanced mechanics, you gain accurate replicable results across large surfaces.
-
Efficiency & cost-effectiveness: Non-contact laser process means minimal tool wear, no ink or consumables for marking, and lower maintenance than mechanical engraving.
-
Integration into workflow: As part of the Laser Marking Machines portfolio, this wood laser engraving machine lets you unify your marking, engraving and cutting processes under one brand and one provider.
Whether you’re outfitting a creative workshop, signage company, custom-gift production line or general fabrication study, this wood laser engraving machine offers outstanding value. Let us help you select the optimal configuration (power, working area) to suit your wood-based application and integrate seamlessly with your workflow.
Parámetros técnicos
FP1390 1313 CO2 Laser Engraving Cutting Machine
| 1 | Modelo | FP1390VS / 1313VS | |||||||||
| 2 | Tipo láser | Láser sellado con cavidad interior de vidrio Co2 | |||||||||
| 3 | Potencia del láser | 100W/130W/150W/180W/300W | |||||||||
| 4 | Alcance máximo de procesamiento a la vez | 1250*900mm / 1250 * 1250mm | |||||||||
| 5 | Max. running speed | 40000mm/min | |||||||||
| 6 | Max. working speed | 15000mm/min | |||||||||
| 7 | Machine Positioning accuracy | ±0.05mm | |||||||||
| 8 | Repetition accuracy | ±0.05mm | |||||||||
| 9 | Cutting material thickness | Acrylic 300W: 40mm/ 180W: 30mm | |||||||||
| 10 | Transmitting system | Guide screw transmission | |||||||||
| 11 | La profundidad de corte más gruesa | 20 mm (acrílico como ejemplo) | |||||||||
| 12 | suministro eléctrico | AC220V±15% 50Hz/60Hz ( can customize 110V/60Hz) | |||||||||
| 13 | Potencia total | ≤3000W (300W laser source) | |||||||||
| 14 | Formato de software compatible | BMP PLT DST AI DXF DWG | |||||||||
| 15 | Temperatura de trabajo | 0℃～45℃ | |||||||||
| 16 | Humedad ambiente de trabajo | 5%～95% | |||||||||
| 17 | Encimeras grabadas | Plataforma de trabajo Push-pull nido de abeja o cuchilla dos opciones (plataforma elevadora) | |||||||||
| 18 | Lenguaje informático | Chino simplificado, chino tradicional, inglés | |||||||||
| 19 | Aplicación | Cortar, grabar, punzonar, ahuecar, etc. | |||||||||
| 20 | Material aplicable | Acrílico, piedra, lana, tela, papel, madera, bambú, plástico, vidrio, película, cerámica y otros materiales no metálicos. | |||||||||
| 21 | Tamaño de la máquina | 2100x1650x1200mm / 2100x1950x1200mm | |||||||||
Opciones de configuración
The platform blade supports the CNC gantry milling process
Precision meter making and assembly of machine tools
Industrial-grade servo gear motor to ensure processing speed
CCD positioning and edge cutting kinetic energy

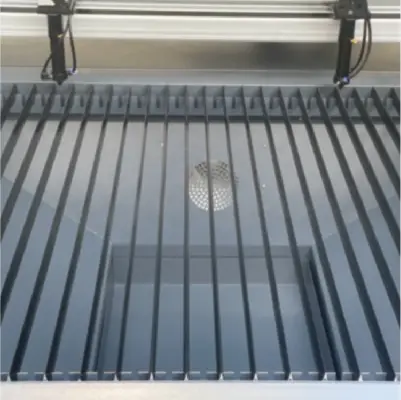

Cutting blade platform
Ropean Industrial Standard Electrical Cabinet
