20W 30W 50W 100W 2.5D 3D 手仕事は深い切り分け、金属の鋼鉄のための彫版機械を印付ける浮彫りになる繊維レーザーを刻みます

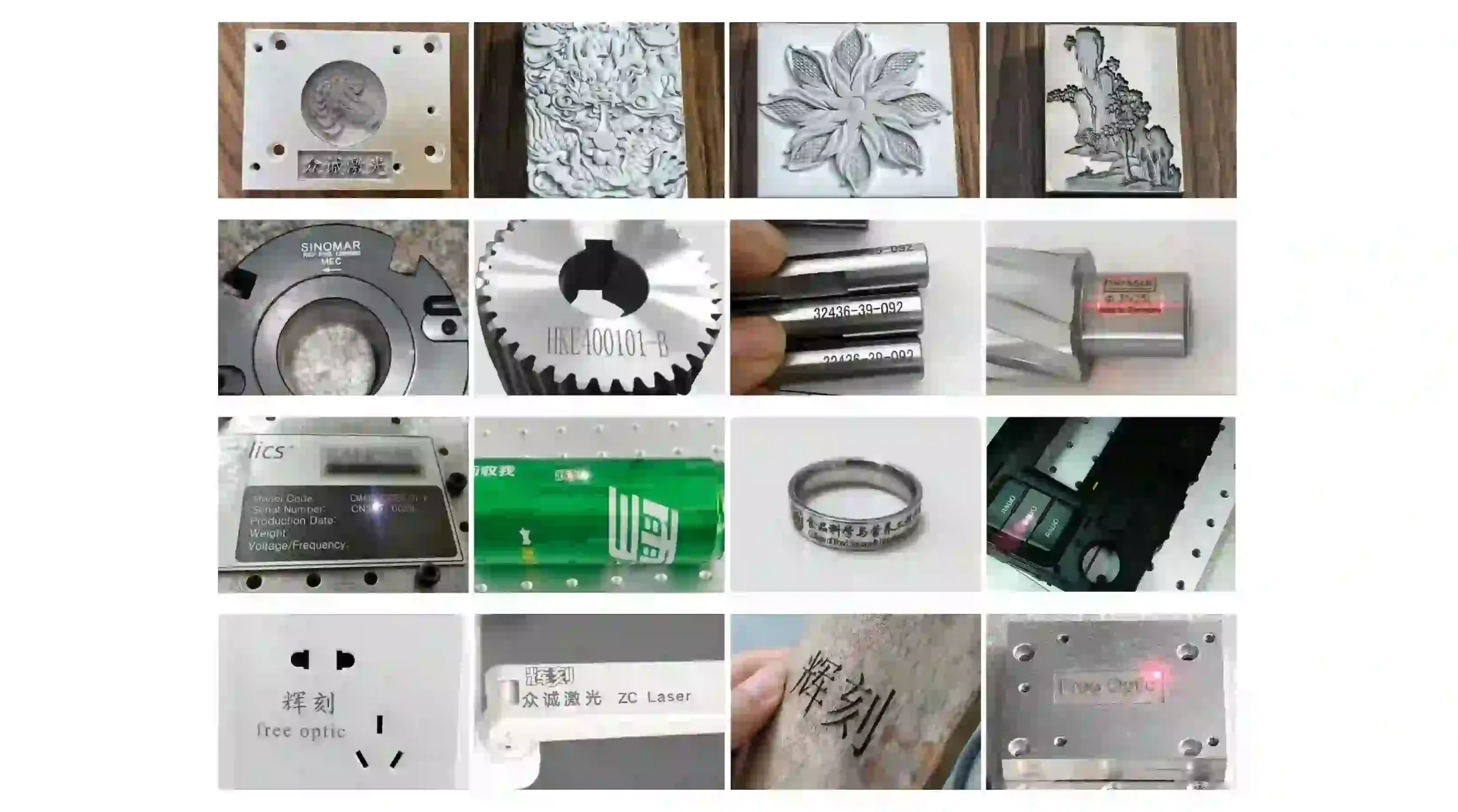

1. lt is suitable to metal, such as steel, stainless, copper, aluminum, gold, silver, etc. and part of non-metal materials like PVC, ABS, HDPE, tires, mirror etc.

2.  It uses 2.5D deep engraving technology, which can achieve different engraving forms such as deep engraving and positive engraving.

3. Mainly used in fields that require deep engraving, such as handicrafts and metal medallion engraving.

4. lt’s easy to operate. Get started quickly without experience.

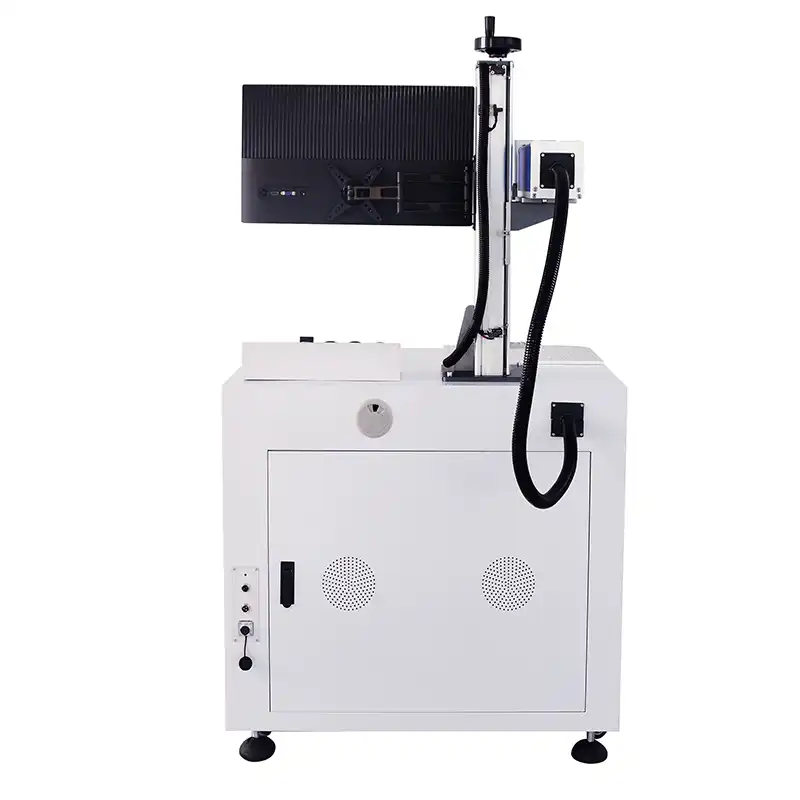

Introducing our advanced relief-carving solution: the Relief Carving Fiber Laser Marking Machine. As part of our premium range of レーザーマーキングマシン, this system is built around the proven technology of the ファイバーレーザーマーキングマシン platform, and offers the precision and depth needed for 2.5D/3D relief carving on metals and advanced materials. While many marking machines stop at flat surface engraving, this model bridges the gap — ideal for craftsmen, mold makers, trophy makers and industrial users seeking deeper texture and three-dimensional depth.

This relief-carving fiber laser machine handles complex patterns, layered surfaces, stepped surfaces and textures with ease. It uses dynamic focus and high-speed galvo scanning to maintain consistent power delivery even as the laser head moves through varying depths, enabling raised or recessed effect carving rather than simple surface marking. Many users note that while typical flat engravers work well for shallow textures, relief carving requires both higher power and dynamic control — the 2.5D/3D capability clearly addresses that need.

Because the underlying technology aligns with our full-scale 生産ラインレーザーマーキングマシン solutions, you get investment-grade precision in a smaller footprint, with the option to scale up later. Whether you’re creating textured brand logos, decorative depths on stainless steel or aluminum, engraving metal medallions, or building molds with relief-style patterns, this machine provides the operational flexibility you need.

Key features include: high-power fiber laser source with beam optimized for metal relief; dynamic height/focus control for consistent depth; support for 2.5D graphics and layered mapping; and software compatibility with standard vector import and 3D relief workflows. The result is crisp contours, strong visual contrast, and a carving effect that stands out from conventional flat marking.

If you’re ready to elevate your marking workflow from flat etching to purposeful relief carving, this Relief Carving Fiber Laser Marking Machine marks the difference. Let me know if you’d like a version tailored for specific materials, power levels, or application scenarios.

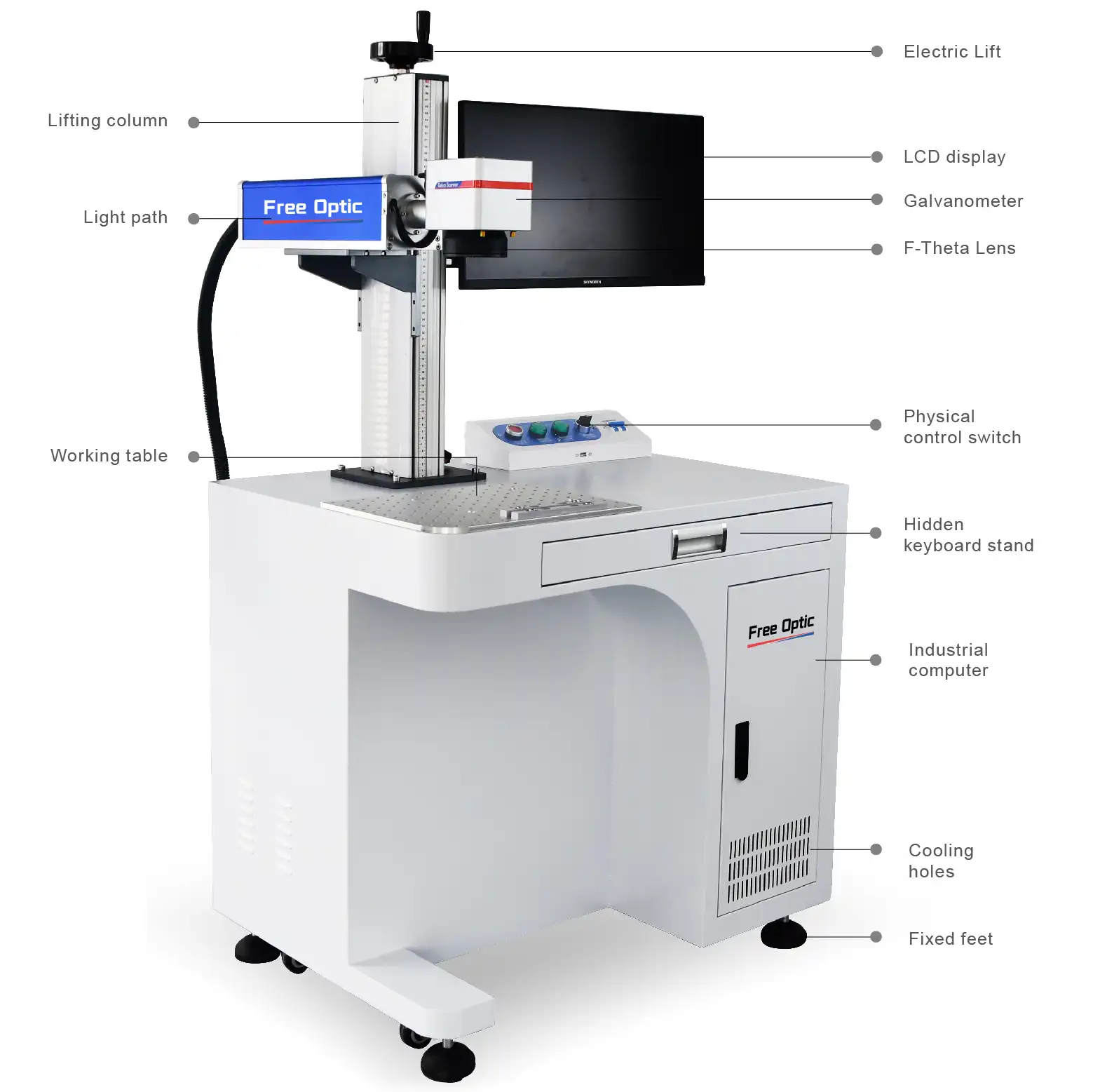

Raycus/Max/JPT laser source
Chinese top brand laser source, 20W/30W/50W/100W/200W

Sino-Galvo 2.5D High Speed Digital Galvanometer
External dual red light helps to quickly find the focus position

High Transparency F-theta Lens

Lens 110x110mm, 150x150mm, 175x175mm, 220x220mm

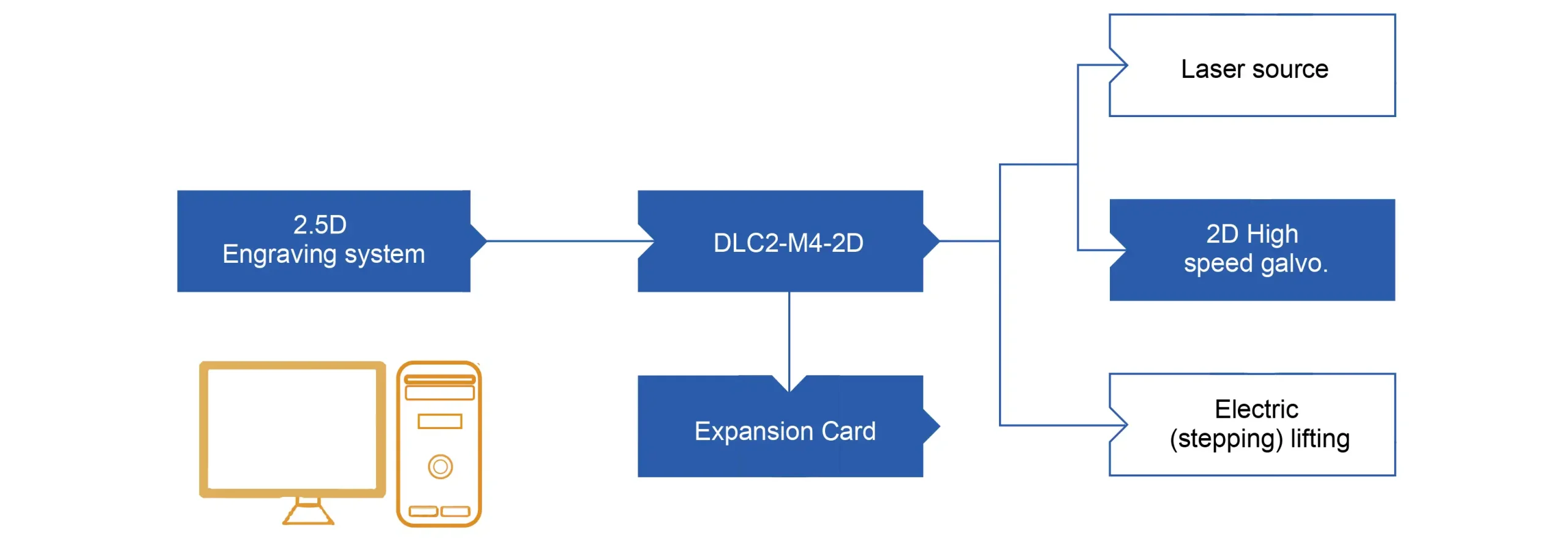

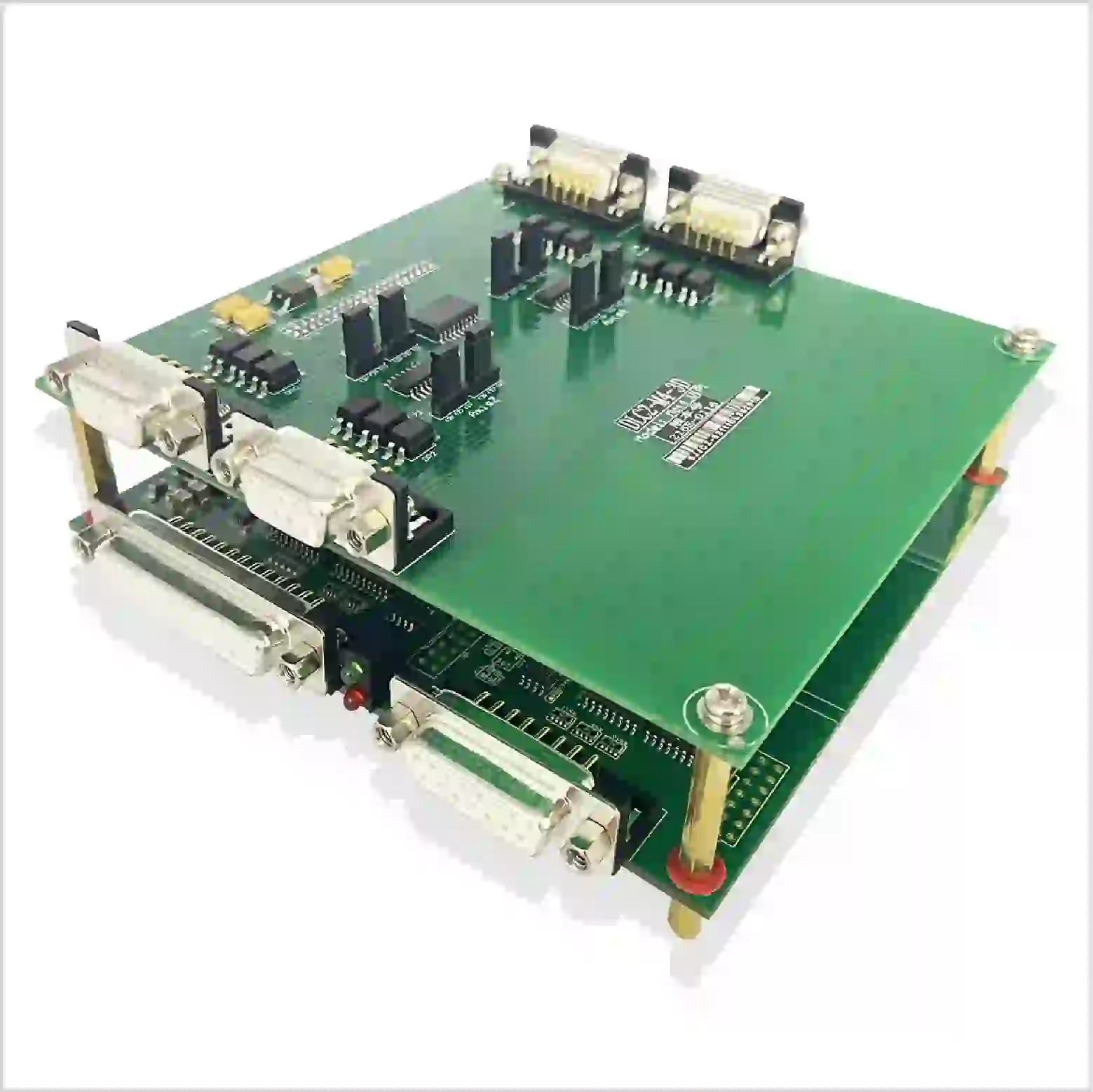

BJ JCZ  DLC2-M4-2D/3D Control Board

The new architecture meets the needs of high-precision and sophisticated, and has two-dimensional and three-dimensional functions.

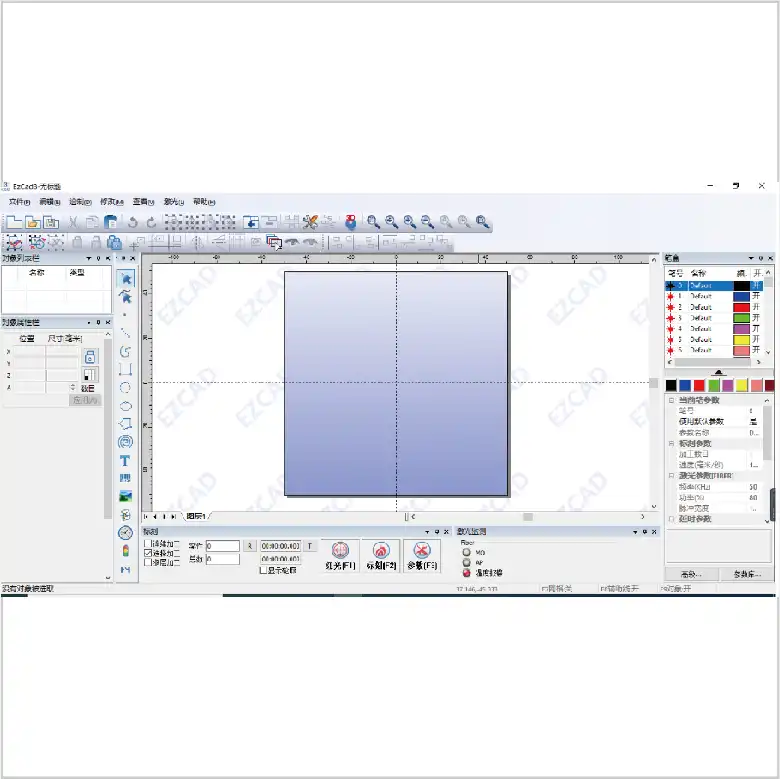

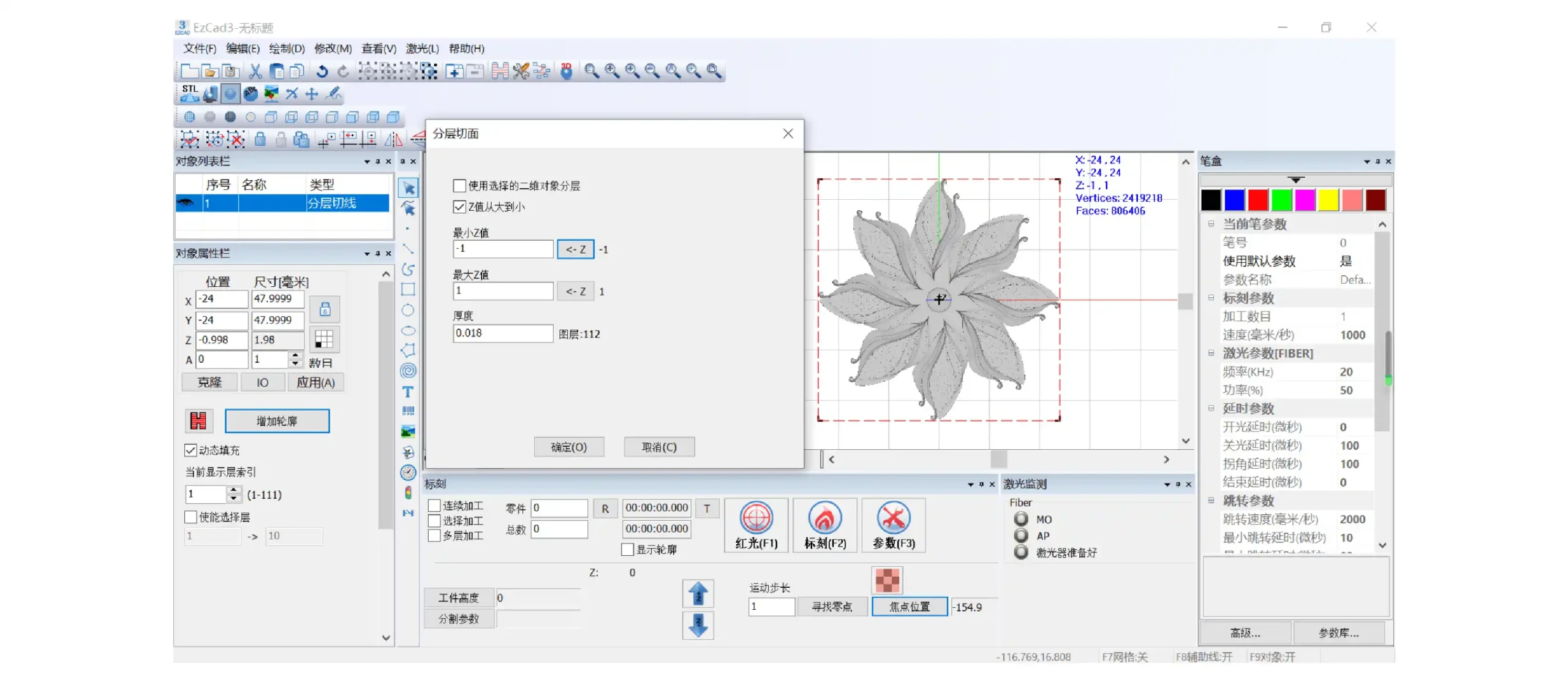

BJ JCZ EZCAD 3 Marking Software

Both 2D そして 3D functions
