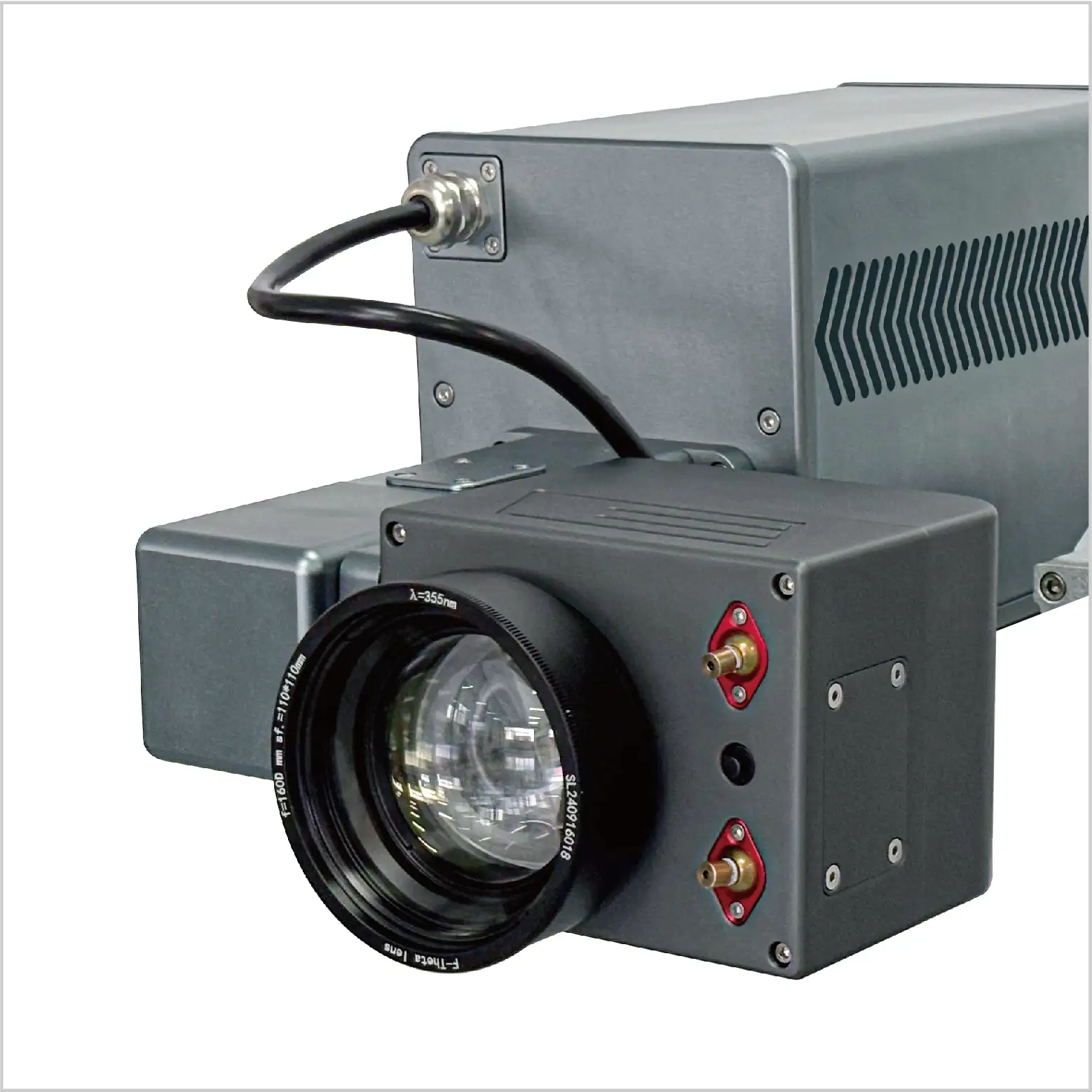

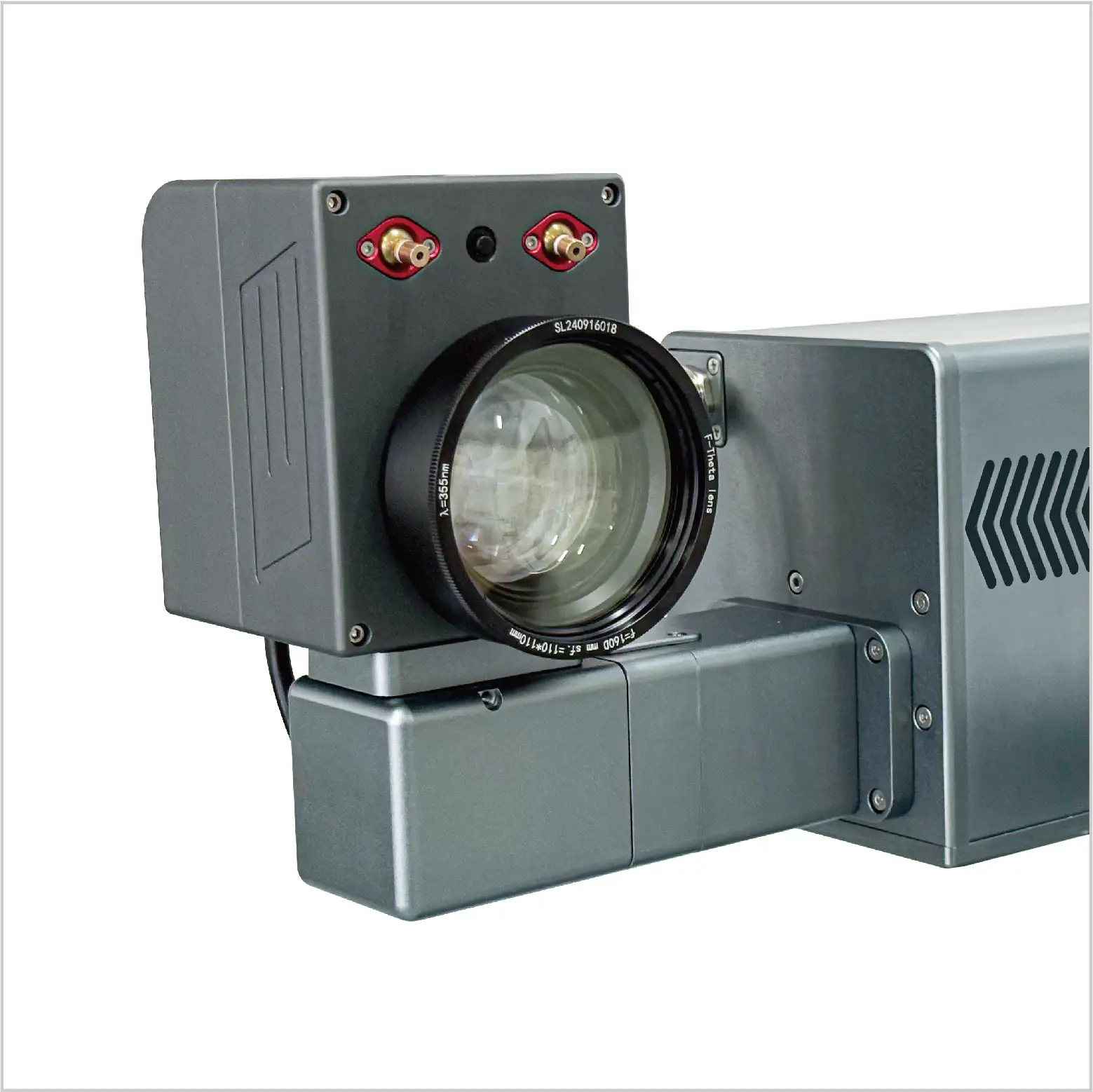

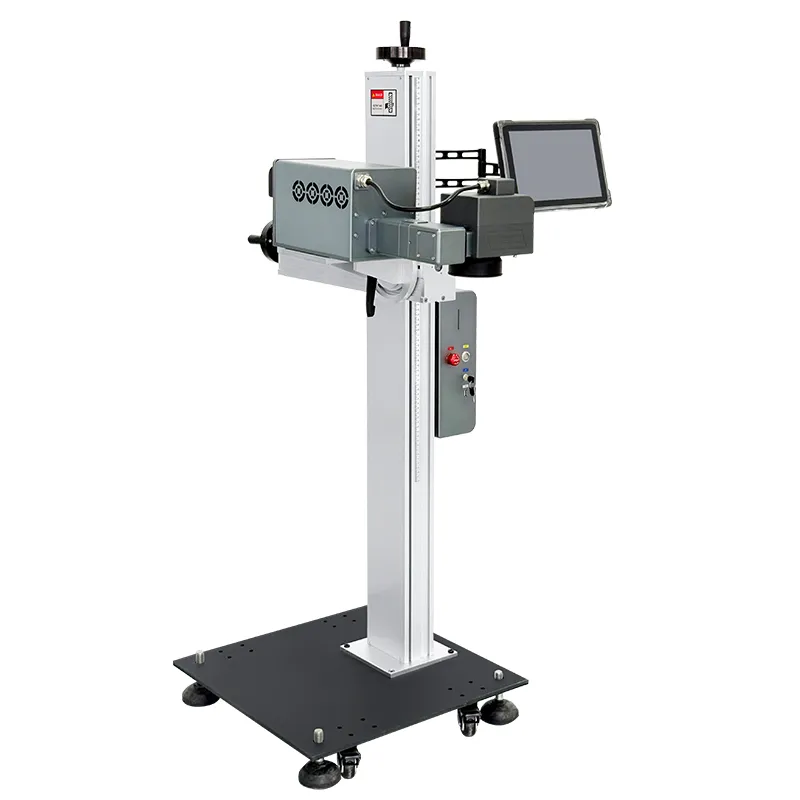

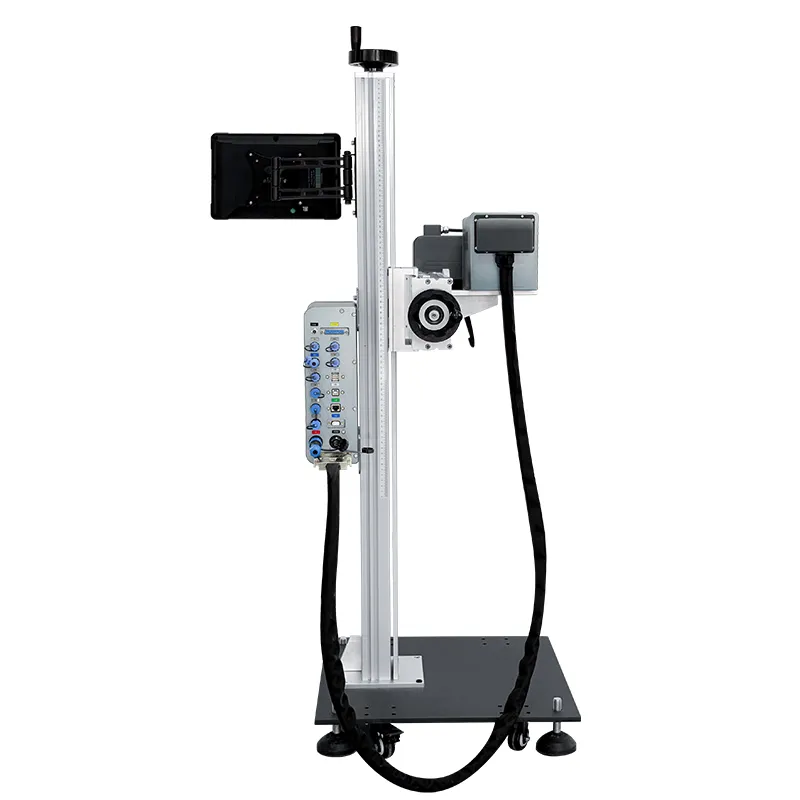

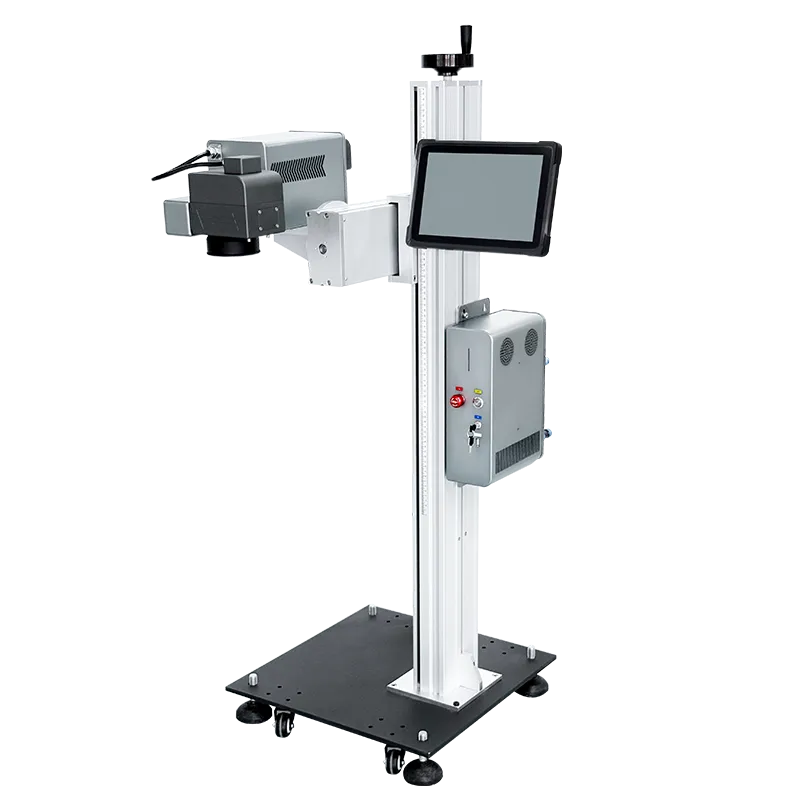

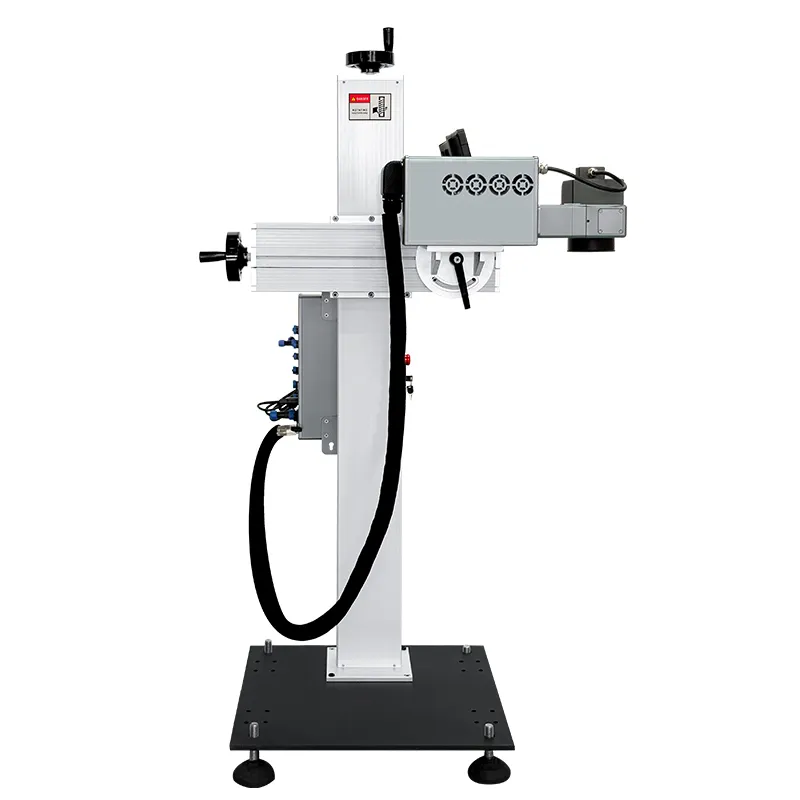

360° Rotating Flying Online UV Laser Marking Machine

This machine is developed using a 355nm ultraviolet laser. It also uses third-order intracavity frequency doubling technology. Compared with infrared lasers, the 355 ultraviolet light focusing spot is extremely small, which can greatly reduce the mechanical deformation of the material and has little processing heat impact, so it is mainly used for ultra-fine mark­ing and engraving, and is especially suitable for application fields such as marking food and medical packaging materials, drilling miro holes, high-speed dividing of glass materials, and complex pattern cutting of silicon wafers.

• Highly Modular Architecture:

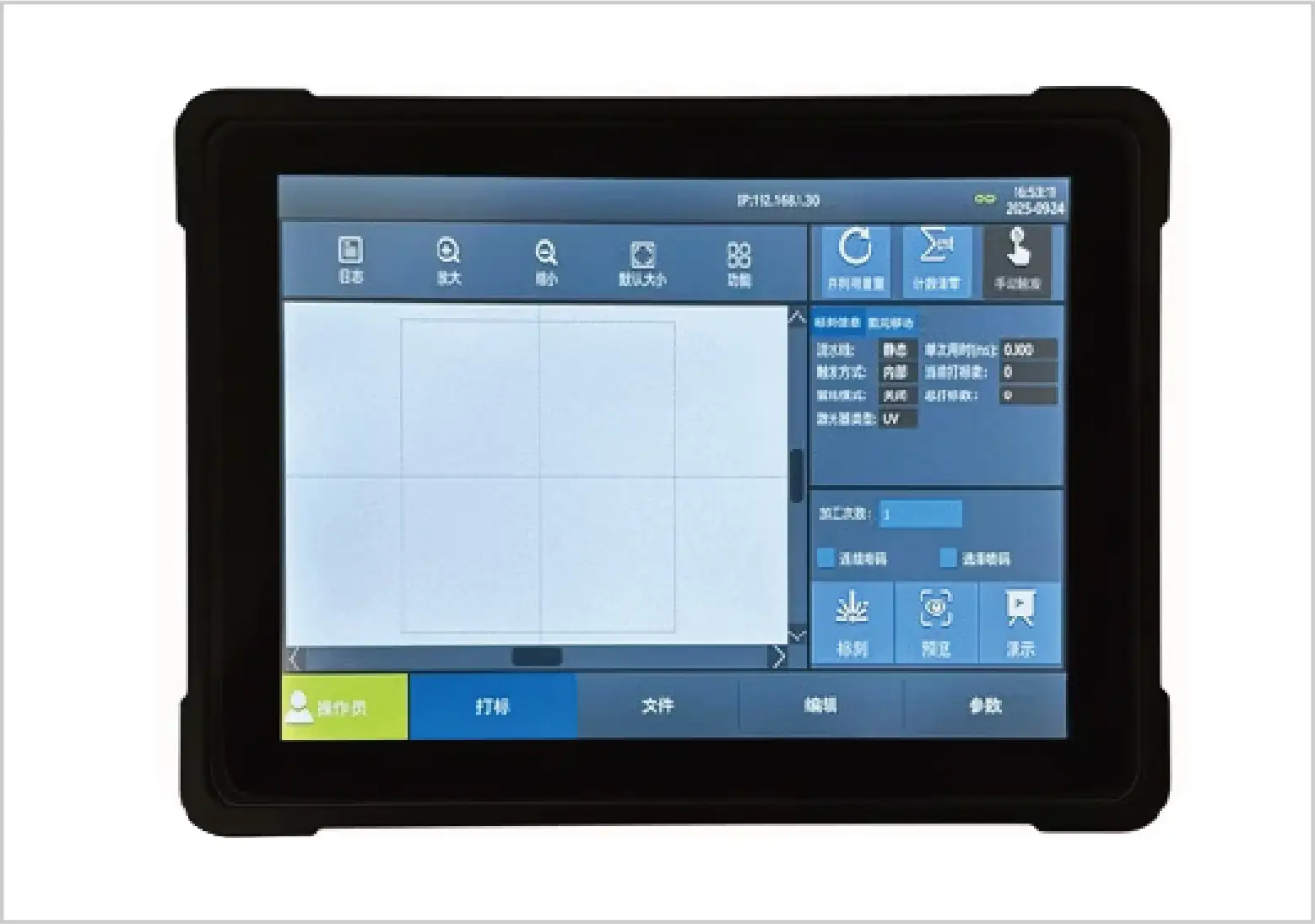

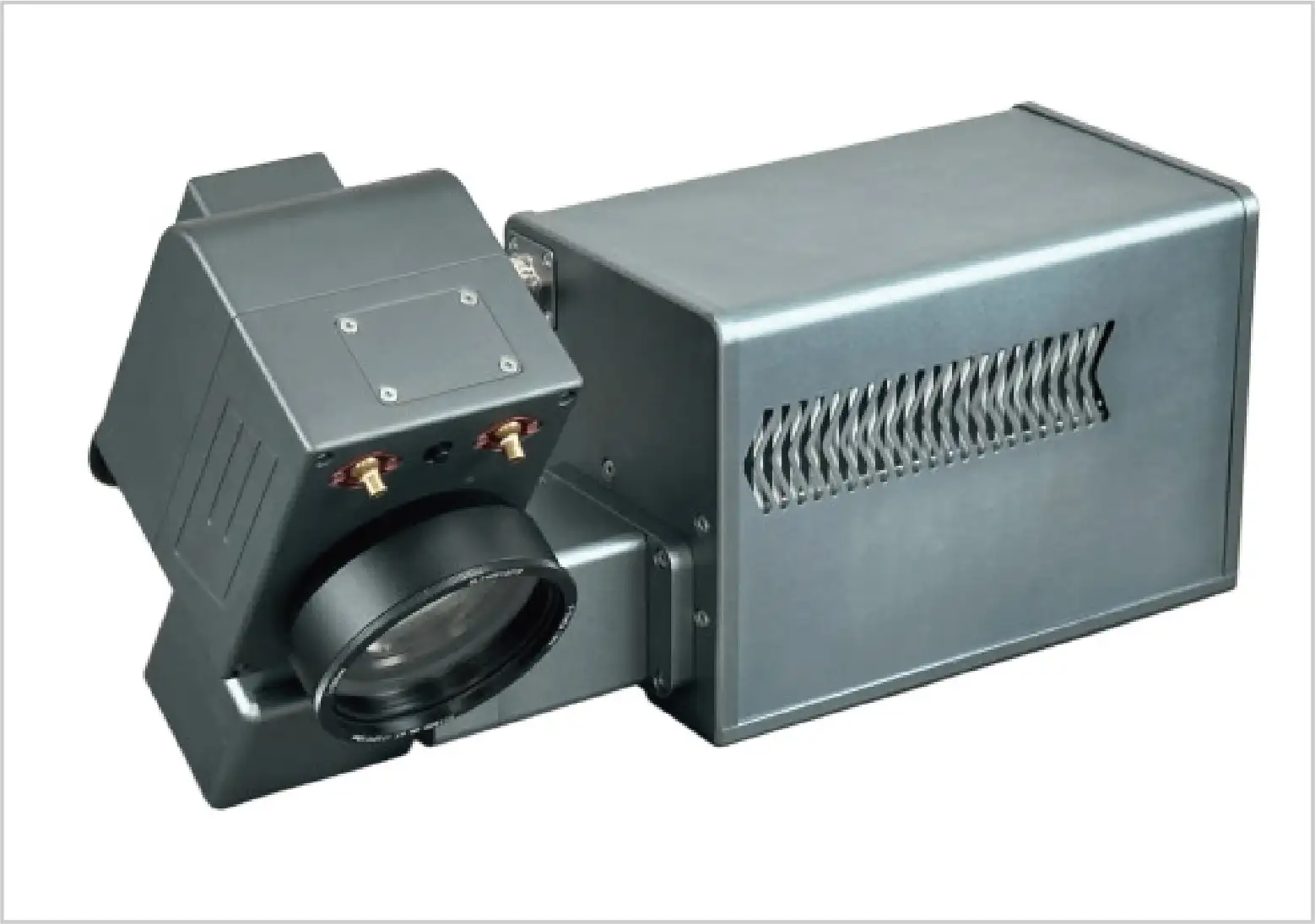

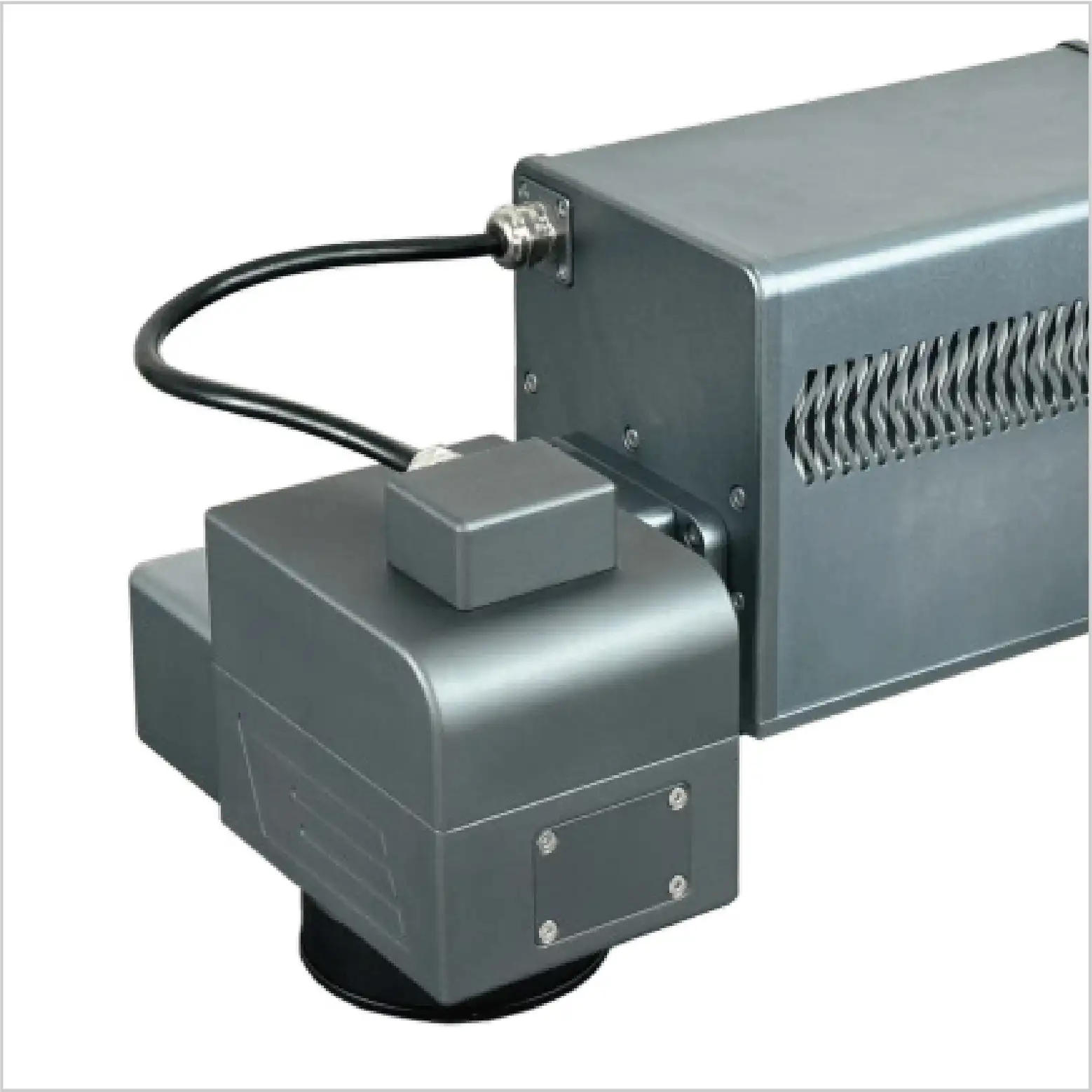

The system can be disassembled into three independent modules: laser head, control box, and display screen. Each component can be maintained and replaced individually. The modular design makes the system configuration highly flexible, adapting to different application needs.

• Suitable for Multiple Application Scenarios:

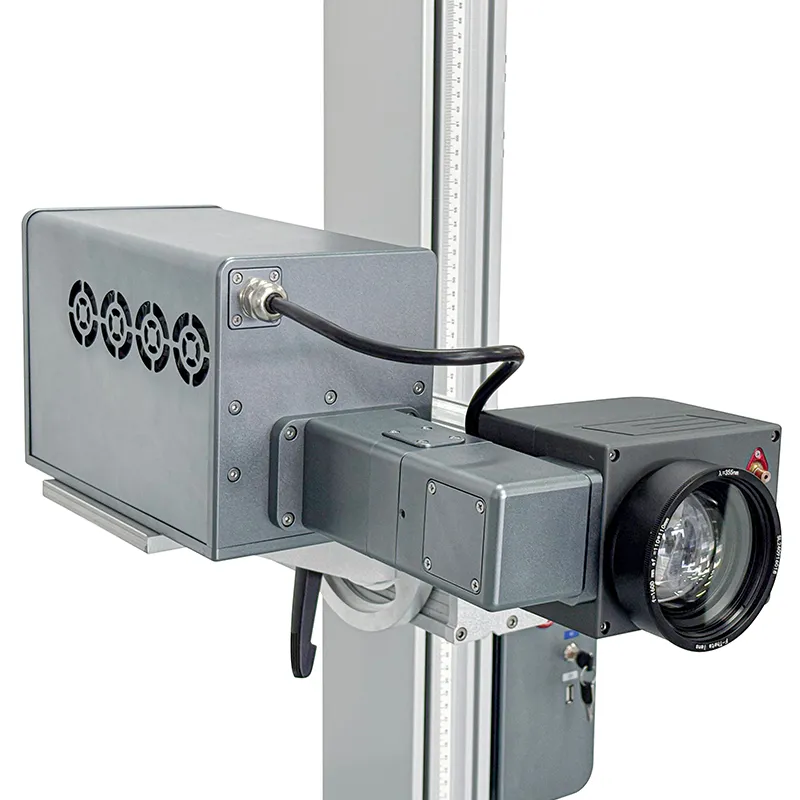

The laser head supports 360° arbitrary angle installation and provides 0°-360° scanning head positioning, meeting the needs of various applications such as complex workstations, robot integration, and multi-axis platforms. Equipped with infrared aiming for easy operation and reduced adjustment time, and precision rotating joints, it ensures long-term stability and repeatability.

• Conveyor Belt Synchronization:

Equipped with a high-precision encoder, it monitors production line speed in real time and automatically calculates delay compensation, ensuring accurate flight marking positions.

Note: The product and appearance may change due to upgrade needs. The pictures are for display purposes only. The actual product shall prevail.

Seamless High-Precision Coding for Cylindrical & Complex Packaging

Maximize your production versatility with the Free Optic 360° Rotating Flying Uv Laser Marking Machine. This advanced system combines the "cold marking" precision of UV technology with a unique rotating mechanism, making it the ideal solution for online assembly lines that require marking on curved, cylindrical, or multi-sided surfaces without stopping the flow.

Innovative 360° Rotating Marking for Every Angle

Unlike standard flat-bed markers, our production line laser marking machine system features an integrated rotation module. This allows for:

• Full Circumference Marking: Perfect for marking all the way around a bottle or tube.

• Multi-Position Coding: Mark the production date on the side and a QR code on the shoulder in one pass.

• Complex Geometry: Effortlessly handle irregular packaging shapes common in the cosmetic and pharma industries.

Targeted Industry Applications

1. Food & Beverage (No Heat Damage)

Keep your products safe and compliant with permanent marks on:

• Glass Food Jars: Precision etching on curved glass surfaces for a premium brand feel.

• Plastic Bags & Stand-up Pouches: High-contrast marking on thin films without thermal perforation.

• Beverage Bottles (PET/HDPE): Clear, legible expiration dates on the bottle neck or body.

2. Pharmaceutical & Medical (High Traceability)

Ensure 100% compliance with sharp, micro-printable data on:

• Plastic Medicine Bottles: 360° coding for dosage instructions and batch numbers.

• Aluminum Foil (Blister Packaging): Non-destructive marking on delicate foil layers.

• Vials & Ampoules: Precision marking on small-diameter glass for track-and-trace requirements.

• Product Labels: High-speed marking directly on labels already applied to the line.

3. Cosmetic & Personal Care (Aesthetic Precision)

Maintain luxury packaging standards with "cold" laser etching on:

• Glass Perfume & Skincare Bottles: Elegant, permanent marking that won't rub off.

• Cosmetic Tubes & Plastic Bags: Crisp batch coding on soft-touch and multi-layer materials.

Data Marking Capabilities

Engineered for the modern production line, our software supports:

• Production Date & Shelf Life

• Expiration Date (EXP) & Batch/Lot Numbers

• Serial Numbers & Anti-Counterfeiting QR Codes

• Data Matrix & Barcodes

Why Choose the Free Optic Rotating UV System?

• Cold Processing Technology: UV lasers (355nm) mark by breaking molecular bonds, ensuring zero heat deformation on thin plastics or sensitive medical foils.

• Dynamic Flying Speed: Synchronizes perfectly with your assembly line speed using advanced encoder feedback.

• Industrial Durability: Designed for 24/7 continuous operation with a long-life UV source and minimal maintenance.

• Zero Consumables: A clean, green alternative to inkjet—no ink, no ribbons, and no chemical waste.

• Flexible Integration: Compact 360° rotating head can be easily integrated into existing conveyors or custom automation cells.

Technical Overview

• Power Options: 3W / 5W / 10W / 15W

• Laser Wavelength: 355nm

• Cooling: High-precision industrial water chiller

• Marking Range: Customizable based on rotation diameter and lens size

• Support: Real-time synchronization with high-speed production lines

Experience Precision in Motion

Upgrade your factory's capabilities with the most versatile UV marker on the market. Contact us to request a custom quote or a sample marking test on your specific packaging materials.

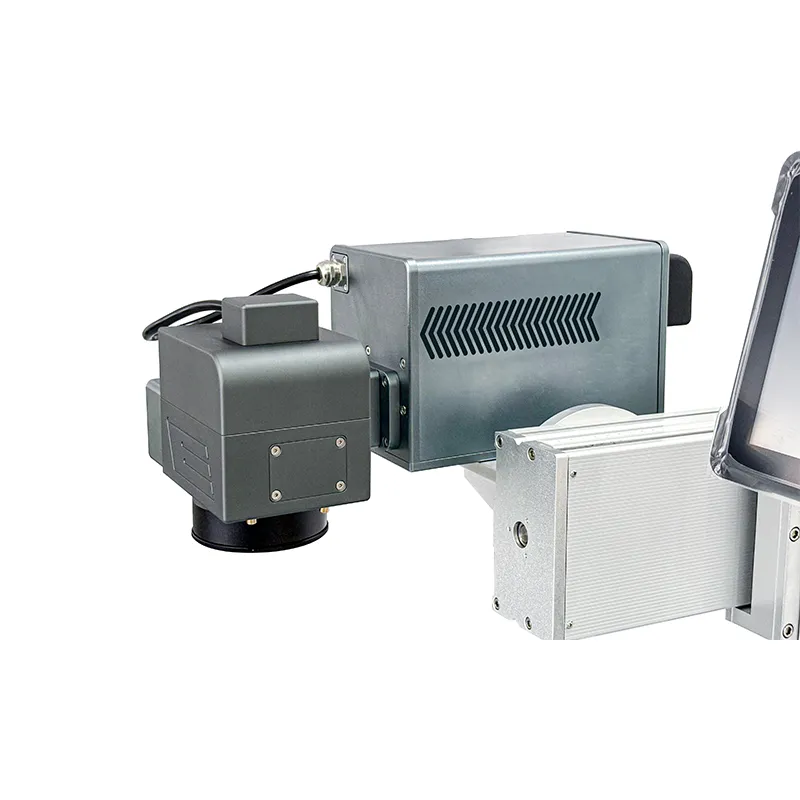

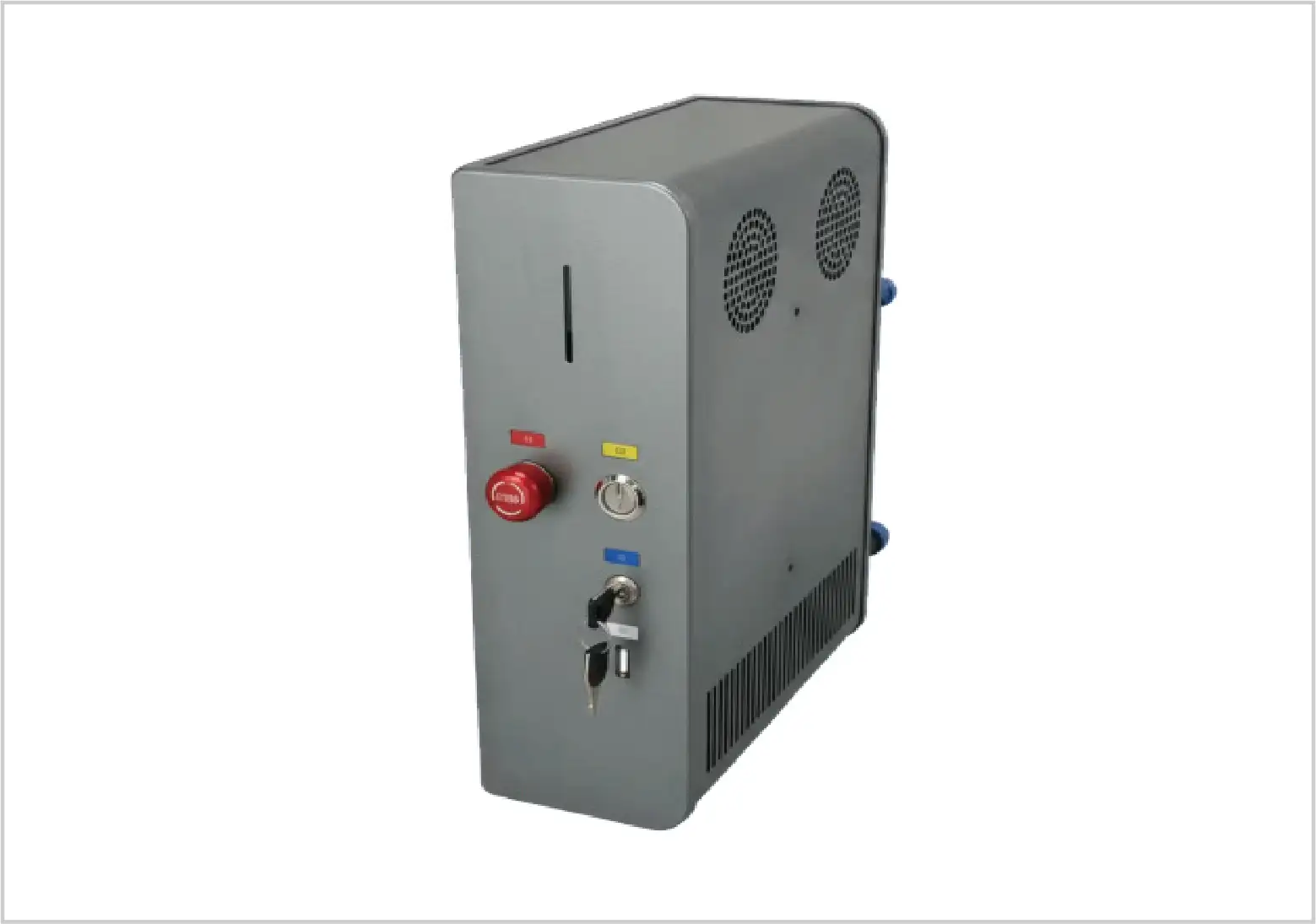

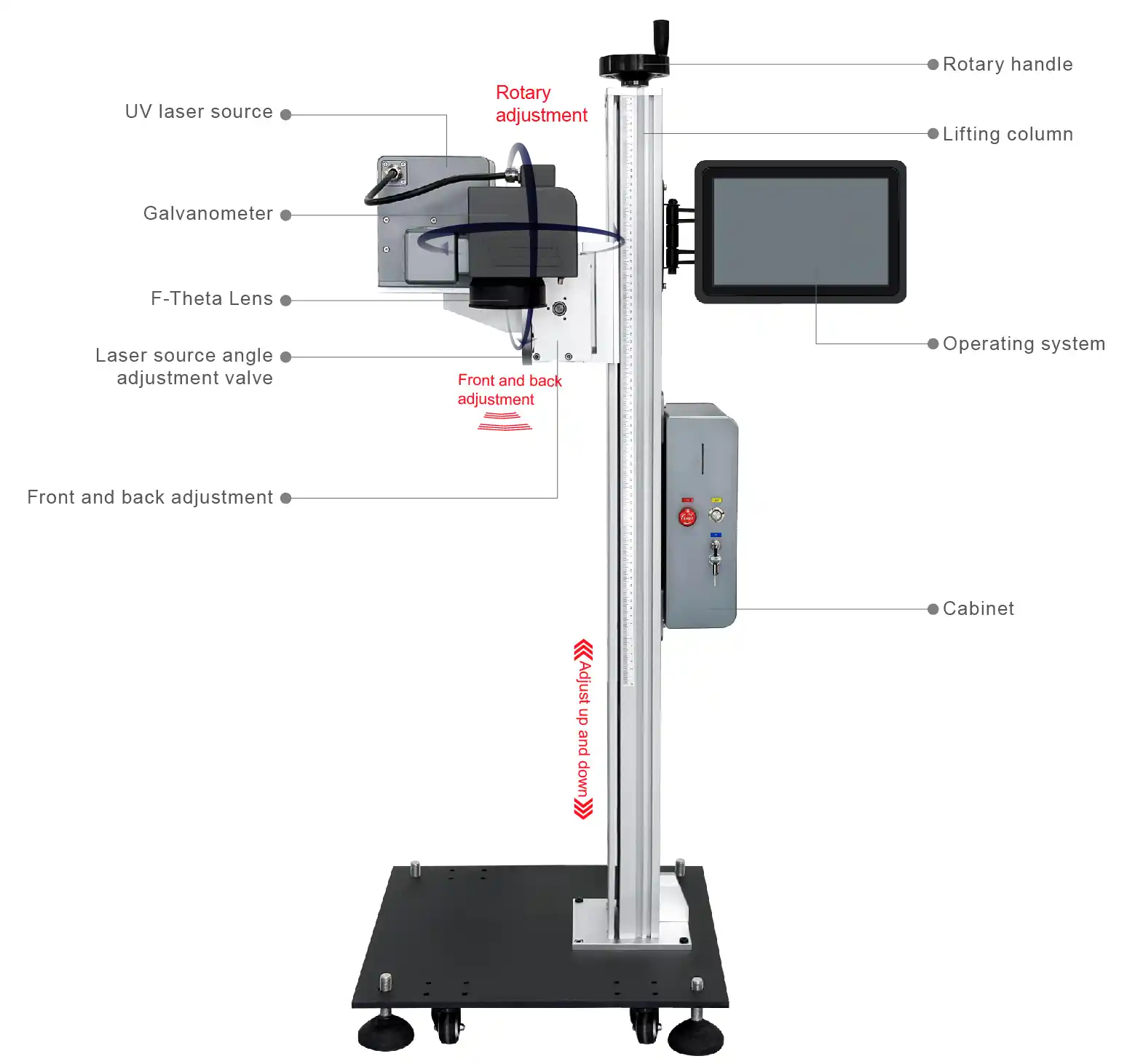

• The laser marking system adopts a highly modular design, flexibly disassembling into three core components: a laser head module, a control box unit, and a display panel. Each module can be independently maintained and replaced, reducing overall maintenance costs.

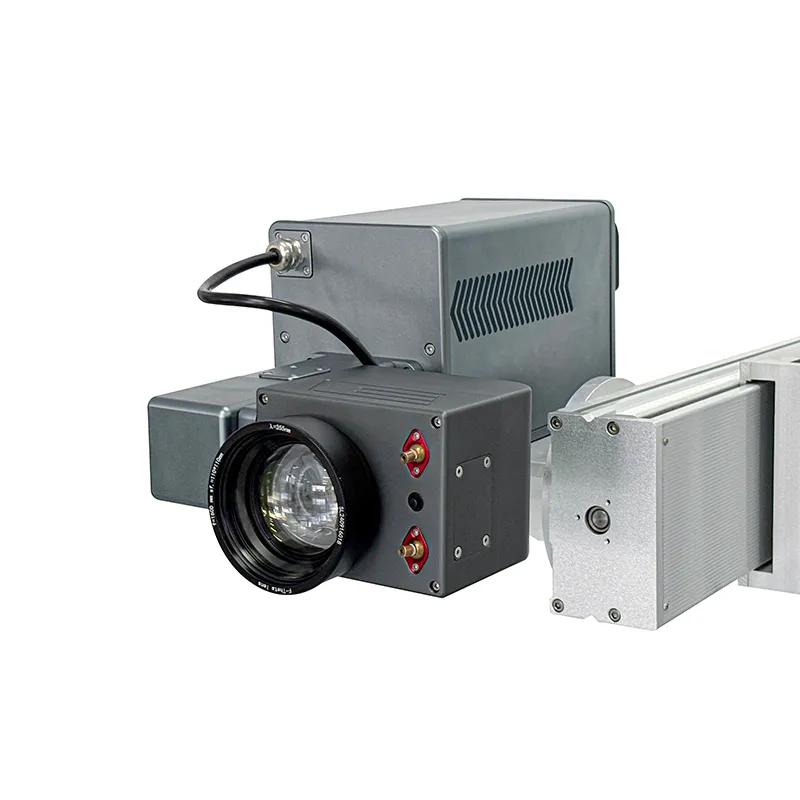

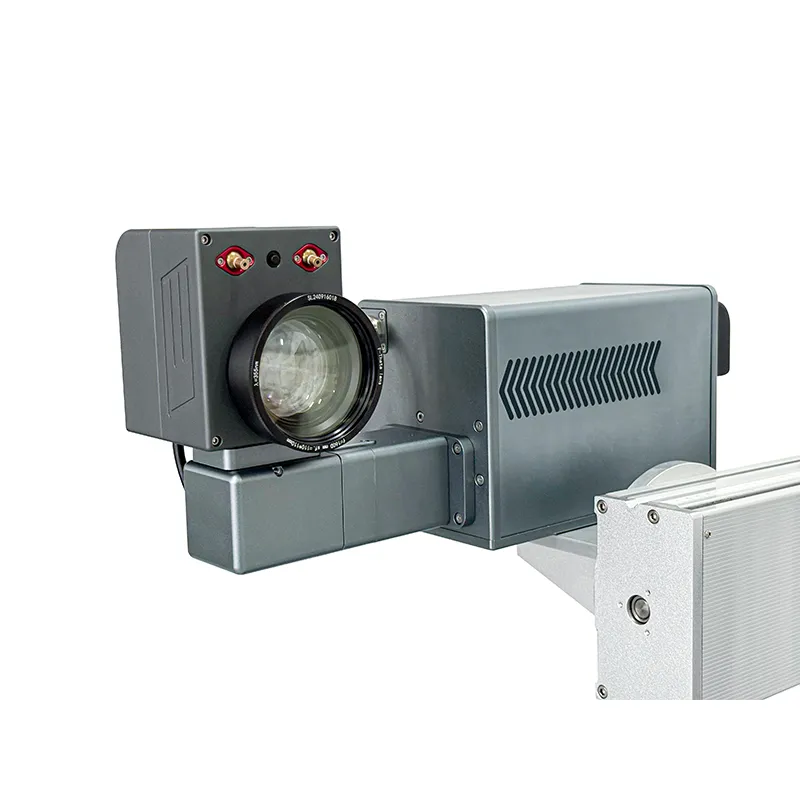

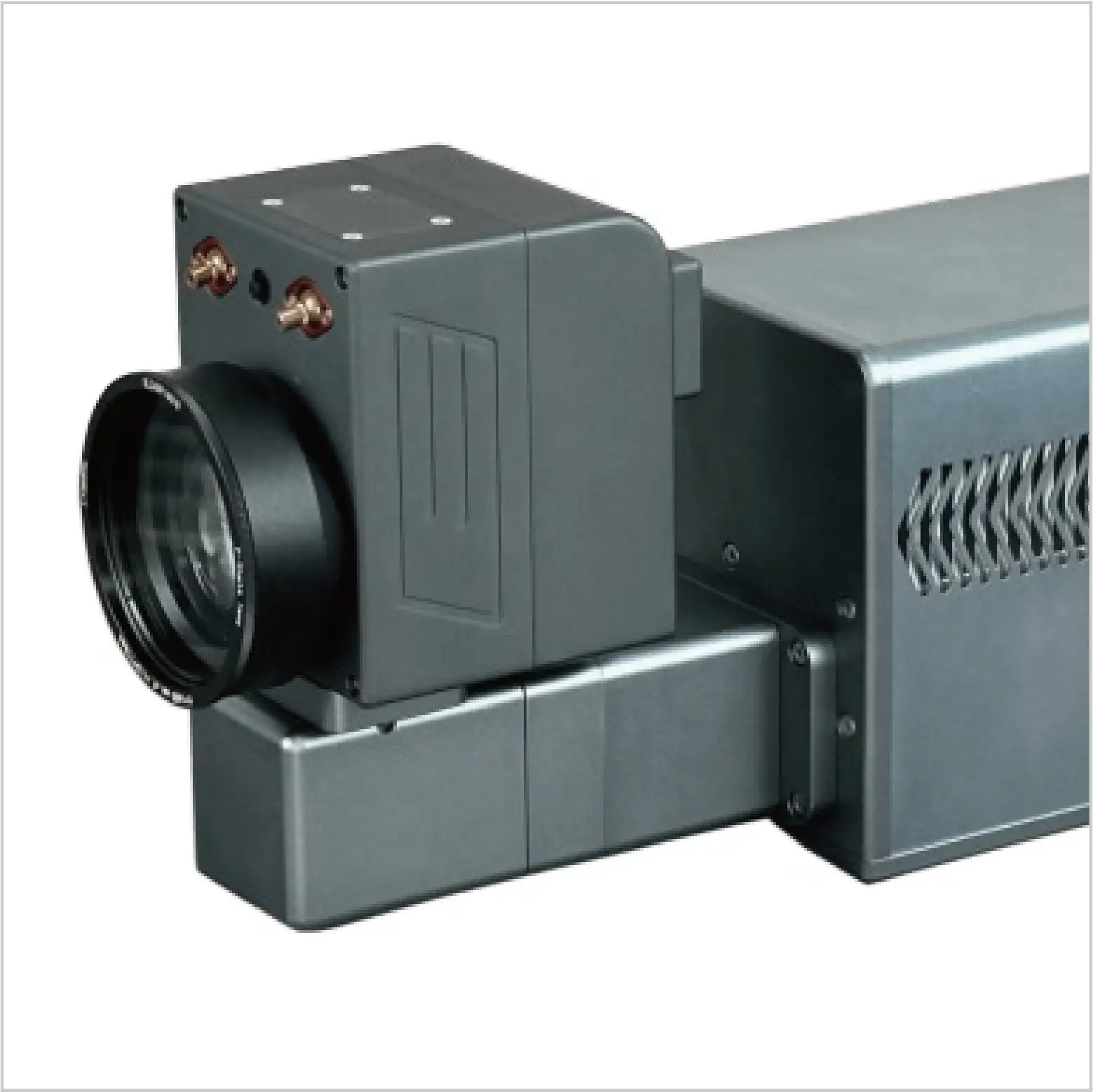

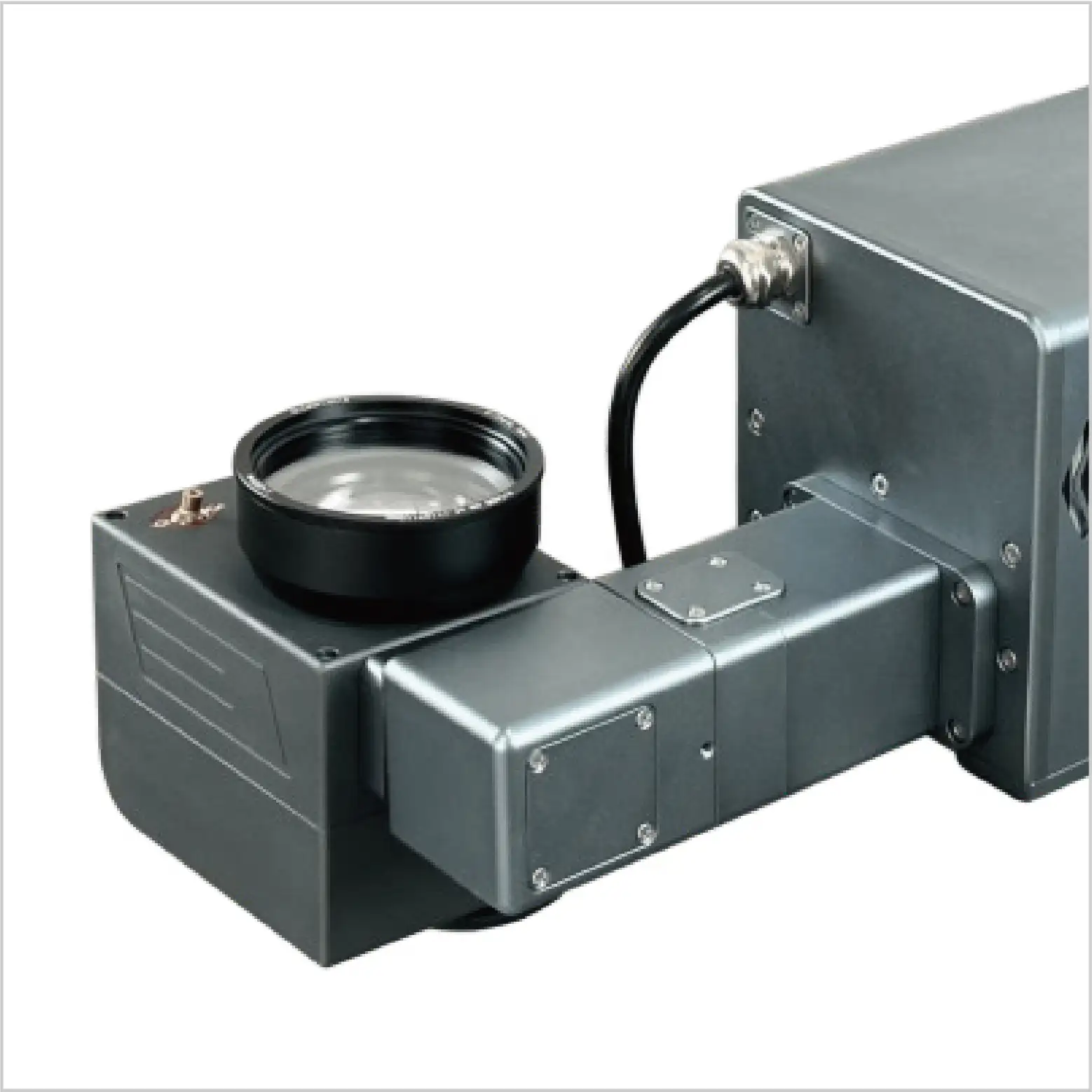

• This design allows the system to adapt to various application scenarios, from simple fixed workstations to complex robot integration, providing users with maximum configuration flexibility and investment protection. The laser head and its connections can rotate 360° to accommodate different angles, achieving precise synchronization with industrial production lines.

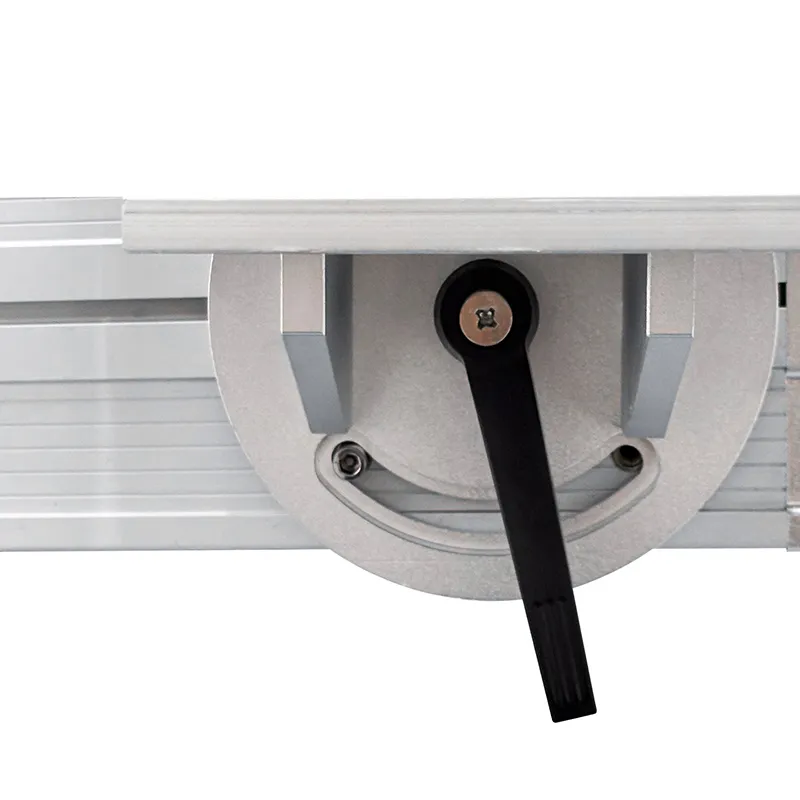

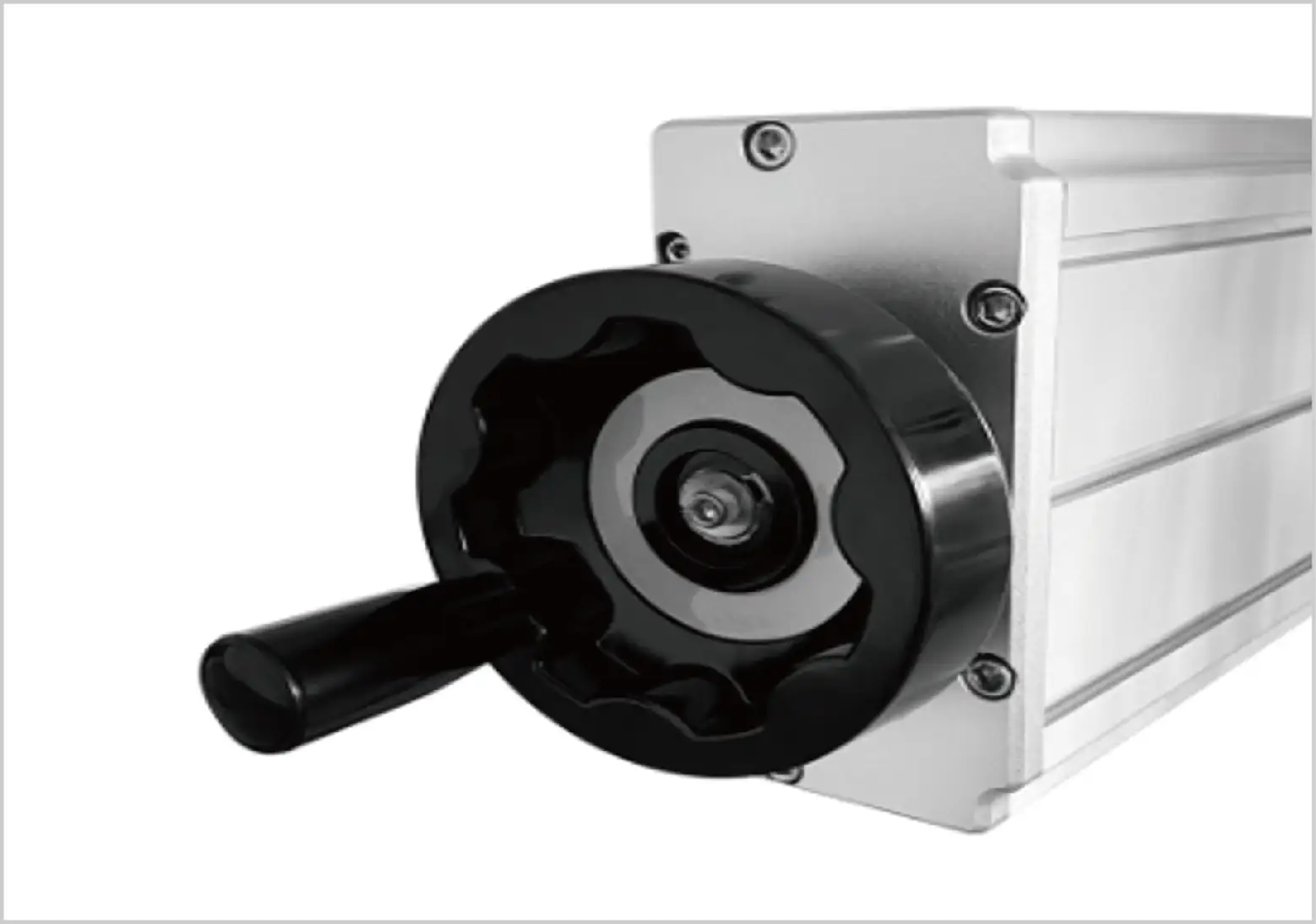

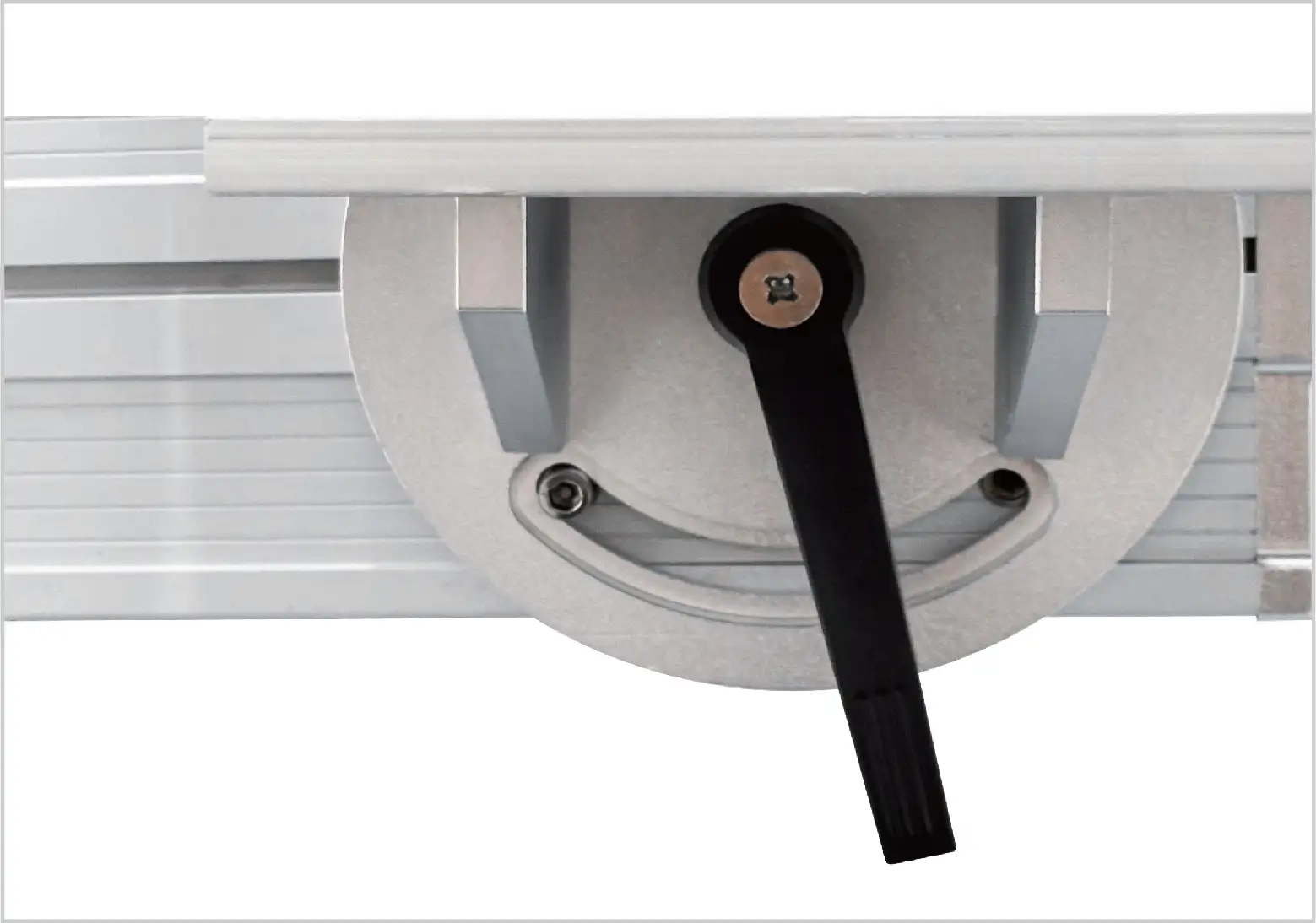

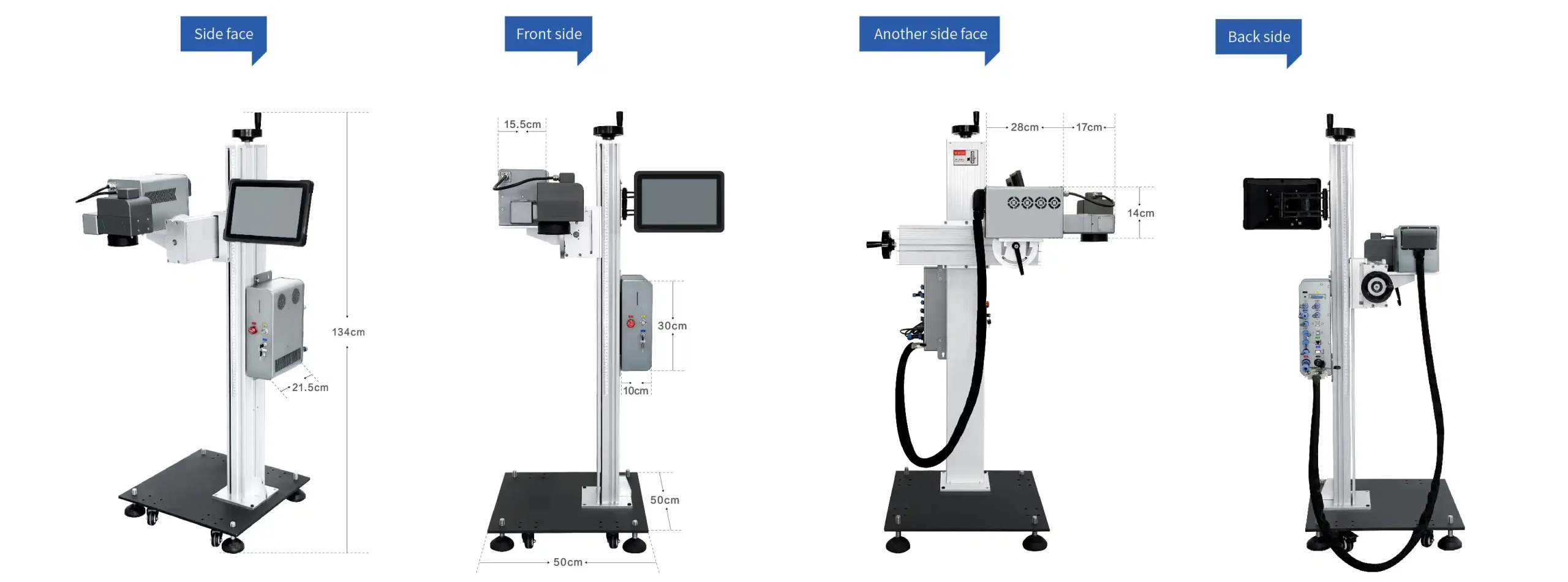

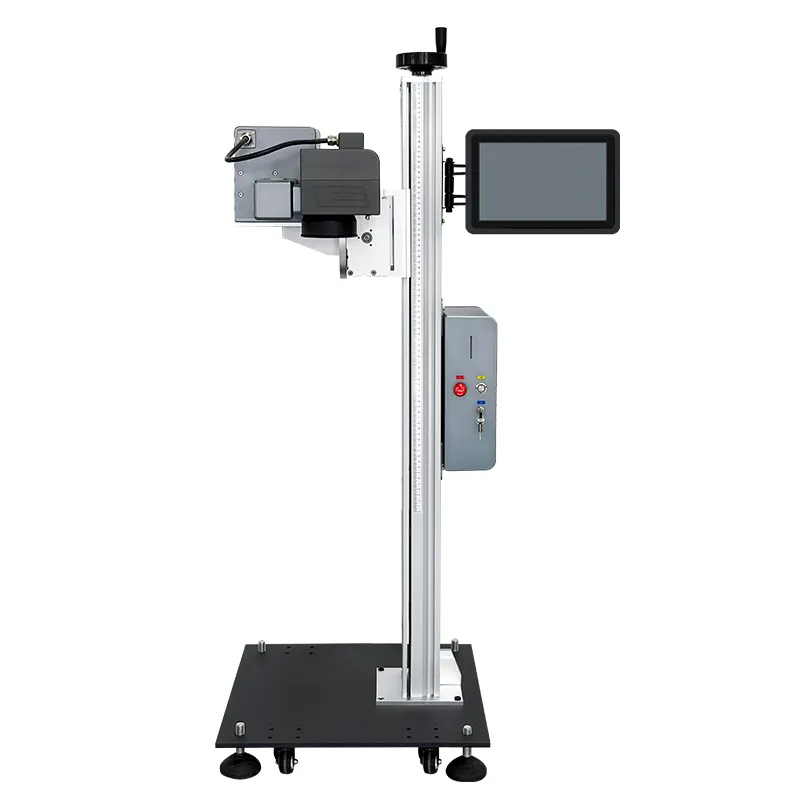

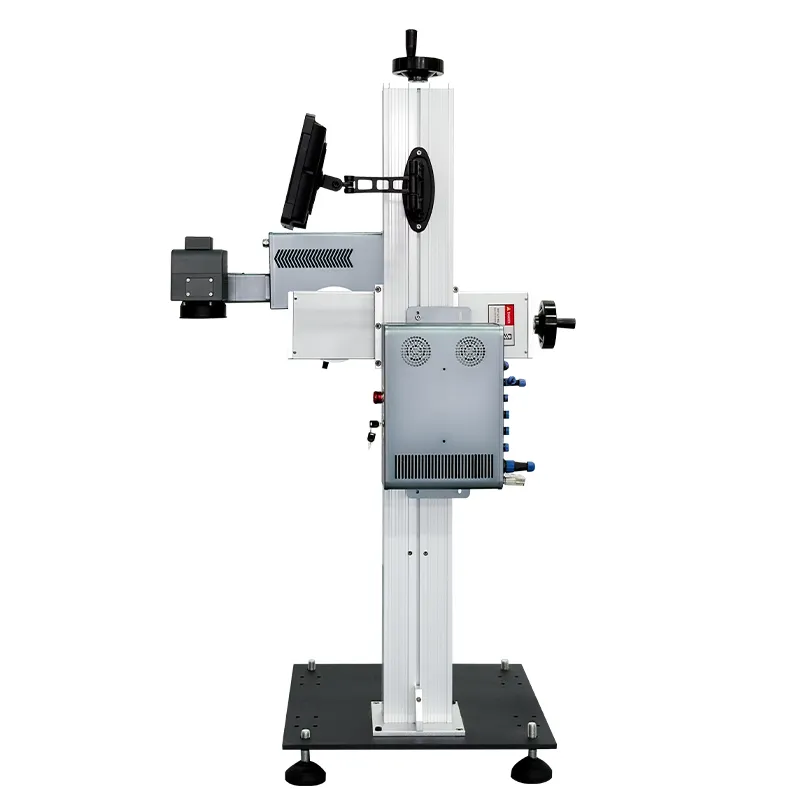

Multi-angle installation capability

Adjust the position and angle flexibly to adapt to the requirements of the production line environment.

Model	FP-5F ( 8F/10F)
Beam quality	TEMoo,M2<1.3
Average output power	>5W@30kHz    >8W@40kHz   >10W@40kHz
Marking speed	≤12000mm/s
Wavelength	355nm±1nm
Laser repetition frequency range	20khz-500khz (adjustable)
Single pusle energy	160uJ@30kHz
Output spot diameter	0.017mm
Marking range	110x110mm
Repeatability	0.01mm
Pulse width(ns)	~15ns@30kHz
Power adjustment range	10%-100%
Total Power	≤500W
Cooling system	Air cooling
Pulse stability	<3% rms
Long Term Stability	<±3%
Equipment operating temperature	-10-40℃, RH<90%
Power requirements	AC220V/110V土10%，50HZ/60HZ
File Format	BMP/DXF/PLT/JPEG/HPGL

No.	Parts name	Main Technical Parameters	Brand name
1	UV laser source	M quality M2<1.3 Light beam diameter1.8 - 2.0 Cooling method water cooling Long-term working stability ≤3%	China brand Maiman laser
2	Digital galvanometer	Wavelength 355um Repeatability 22µrad Marking speed 7500mm/s Typical scanning angle +0.35rad Gain error <5mrad	Free Optic
3	F-theta lens	SILL F-theta lens 355nm Wavelength scanning angle: ＋25° Incident light diameter: ≤12mm Diffused light diameter: 10µm	Free Optic
4	Software system	Basiliang Support system WIN7-WIN10 Multilingual operation page	China brand Basiliang
5	Power supply	SE-350-24 SE-75-15 SE-25-5	Taiwan Meanwell
