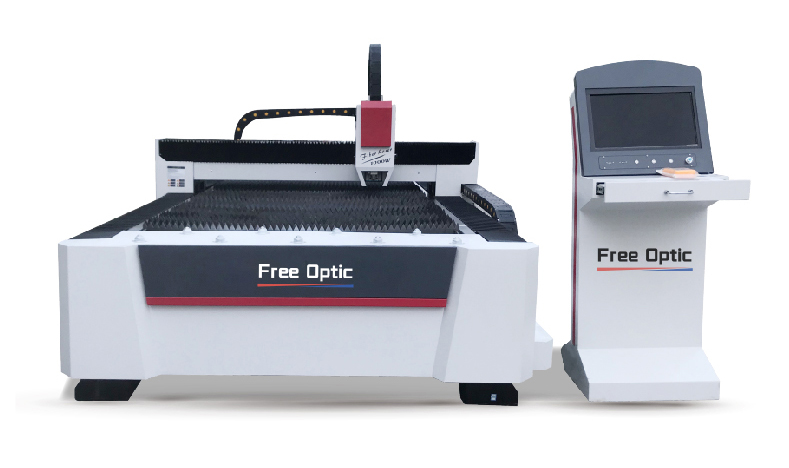

Factory Direct Sales Low Cost Steel Tube And Plate Pipe 3015 Fiber Tube Laser Cutting Machine
1.FP3015 fiber laser cutting machine adopts fiber laser generator, with good quality spot, uniform optical power density and stable output optical power, which can achieve high precision cutting.
The transmission structure adopts imported high precision gear and rack, linear guide rail, and double gantry motor system to ensure the stability and reliability of the whole machine, with characteristics of good performance, strong load capacity, high speed, high precision and cost-effective.

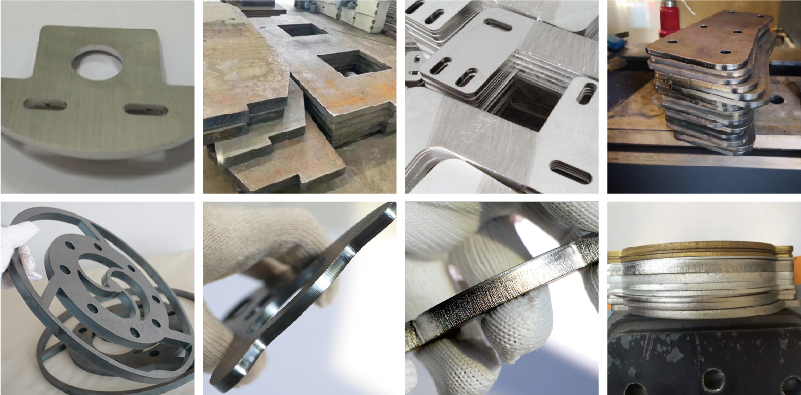

Mainly used in variety of metal plates, stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals and other materials quickly cutting.
Widely used in electric power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising logo, car decoration, sheet metal production, lighting hardware, display equipment, precision parts, hardware products subway accessories, decoration, textile machinery, food machinery , Construction machinery, ships, tooling, metallurgical equipment, aviation, aerospace and other manufacturing and processing industries.
FP3015 Fiber Laser Cutting Machine Technical Parameters
| Working table | 3000x1500mm, 4000x1500mm, 4000x2000mm, 6000x1500mm, 6000x2000mm and customizable | |||||
| Laser power | 1.5KW - 6KW | |||||
| Repeatability | ±0.03mm/M | |||||
| Acceleration | 1G | |||||
| Max. empty speed | max. 120M/min | |||||
| Max. cutting thickness | 25mm | |||||

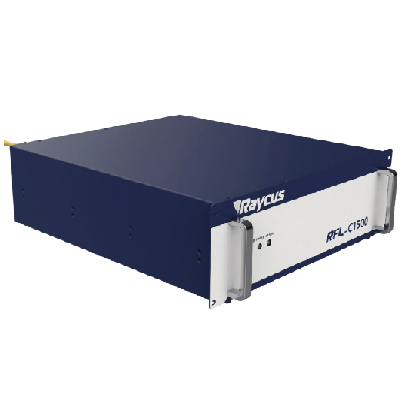

Raycus/Max/IPG Laser Source
Famous laser brand in the world to make sure the stable performance of the machine;
Different power available like 1.5KW, 2KW, 3KW, 4KW, 6KW;
Cost-effective.

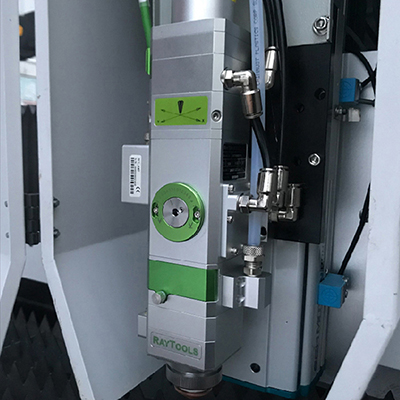

Cutting Head
The famous industrial cutting head Raytools high cutting precision;
With good cutting effective;
Auto focusing & manual focusing is optional.

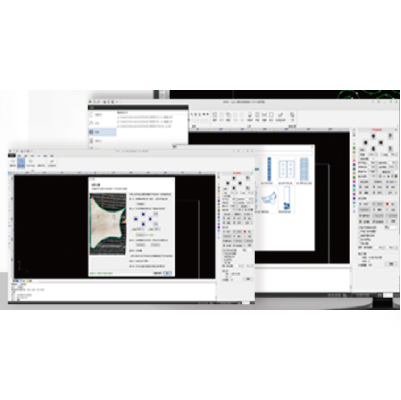

Friendness Cypcut Operating system
One stop solution, which can be used for planning;
Monitoring and controlling the production process;
Support basic auto-nesting function;
Suitable for kinds of metals and thick metal plate cutting.

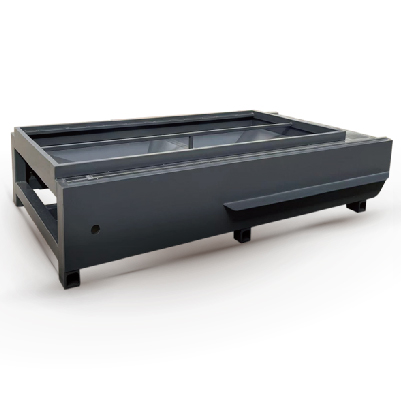

Thick Square tube welding machine bed
High duty machine tool design;
Heavy-duty tube plate welding structure;
Precision gantry maching center precision milling processing;
After annealing to eliminate internal stress,it is finished after secondary vibration aging treatment to ensure long-term use without deformation.

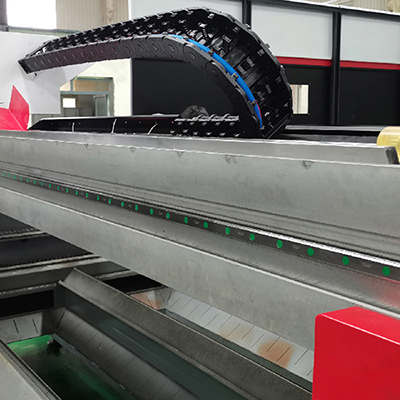

Aluminum Profile Beam
It's manufactured with aerospace standards and formed by 4.3 tons press extrusion molding;
Good toughness; light weight;
Corrosion resistance;anti-oxidation;
low density; and greatly increase the processing speed.

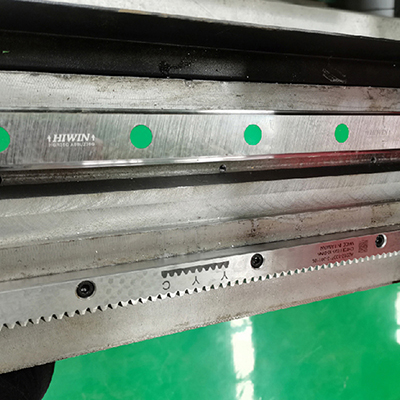

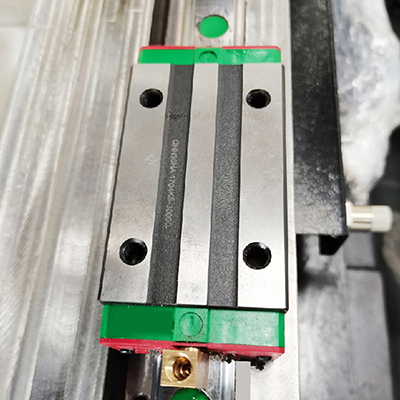

Guide Rail
Taiwan made Guide Rail;
Each guide rail proceed strict photoelectric auto-collaboration testing;
make sure the precision within 0.03mm.
Gear and Rack
Taiwan brand gear and rack;
High precision;
Accurate instantaneous transmission ratio;
High transmission efficiency;
Long working life.

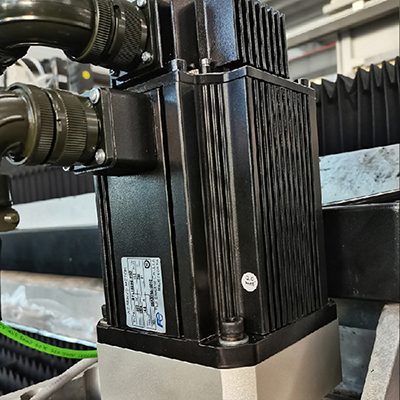

Servo Motor
We use Fuji (Alpha 5 series) or Yaskava high precision Servo Motor with driver；
X/Y/Z- axis all adopt servo motor；
Y-axis double drive.

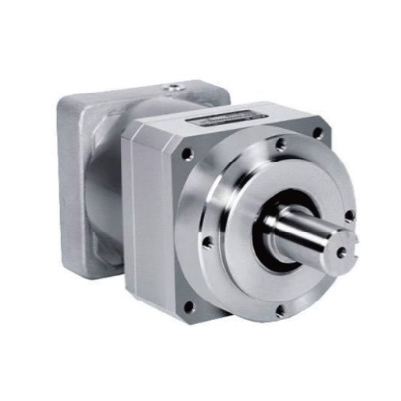

Reducer
We use Japanese Shimpo Reducer with 1:5 Ratio and shaft transmission;
It is good operation and high precision transmission.

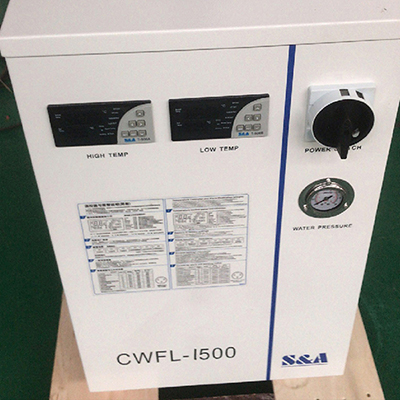

Dual-temperature cooling system
China famous brand S&A or Hanli;
Real time display current water temperature;
Unique dual-water path design;
Temperature abnormal alarm.
