RF 35w 55w 60w Co2 Laser Marking Machine Co2 Laser Engraving Machine for Wood Textile Plastic Nonmetals

Desktop CO2 Laser Marking/Engraving Machines:

1. Power: 30W, 40W, 60W

2. Laser source: CRD/Davi, China top Co2 laser source brands

3. For engraving on materials such as wood, paper, glass, leather, acrylic, rubber, and plastics.

제품 세부 정보

Machine Features

1. Wide used in the packaging industry, automotive industry, advertising industry, clothing industry, crafts and customization projects.

2. Suitable for plastic, carton, textiles, leather, wood, and paper...

3. Available for marking production dates, batch numbers, and barcodes and etc.

The Fiber Laser Marking Machine CO2 RF30W is a versatile and efficient marking system designed for precision engraving on both metal and non-metal materials. As one of Free Optic’s advanced 레이저 마킹기, it integrates cutting-edge fiber and CO2 laser technology to deliver stable performance, high-speed marking, and long service life. This model is ideal for industries such as packaging, electronics, leather, wood, and plastic processing that require clear, durable, and permanent markings.

Equipped with reliable CO2 레이저 마킹기 RF technology, the RF30W laser source provides exceptional beam quality and consistency. It enables precise marking of barcodes, serial numbers, expiration dates, and logos on various surfaces, including paper, acrylic, glass, and coated metals. The machine’s non-contact process ensures clean, high-contrast results without causing damage or deformation to the materials.

For enhanced flexibility, the Fiber Laser Marking Machine CO2 RF30W can also be configured as a Laser Portable Marking Machine, making it suitable for both stationary and mobile production environments. It features low maintenance requirements, energy efficiency, and user-friendly software for easy operation. Combining precision, versatility, and stability, this model is the perfect choice for manufacturers seeking a reliable, high-performance laser system for diverse industrial marking applications.

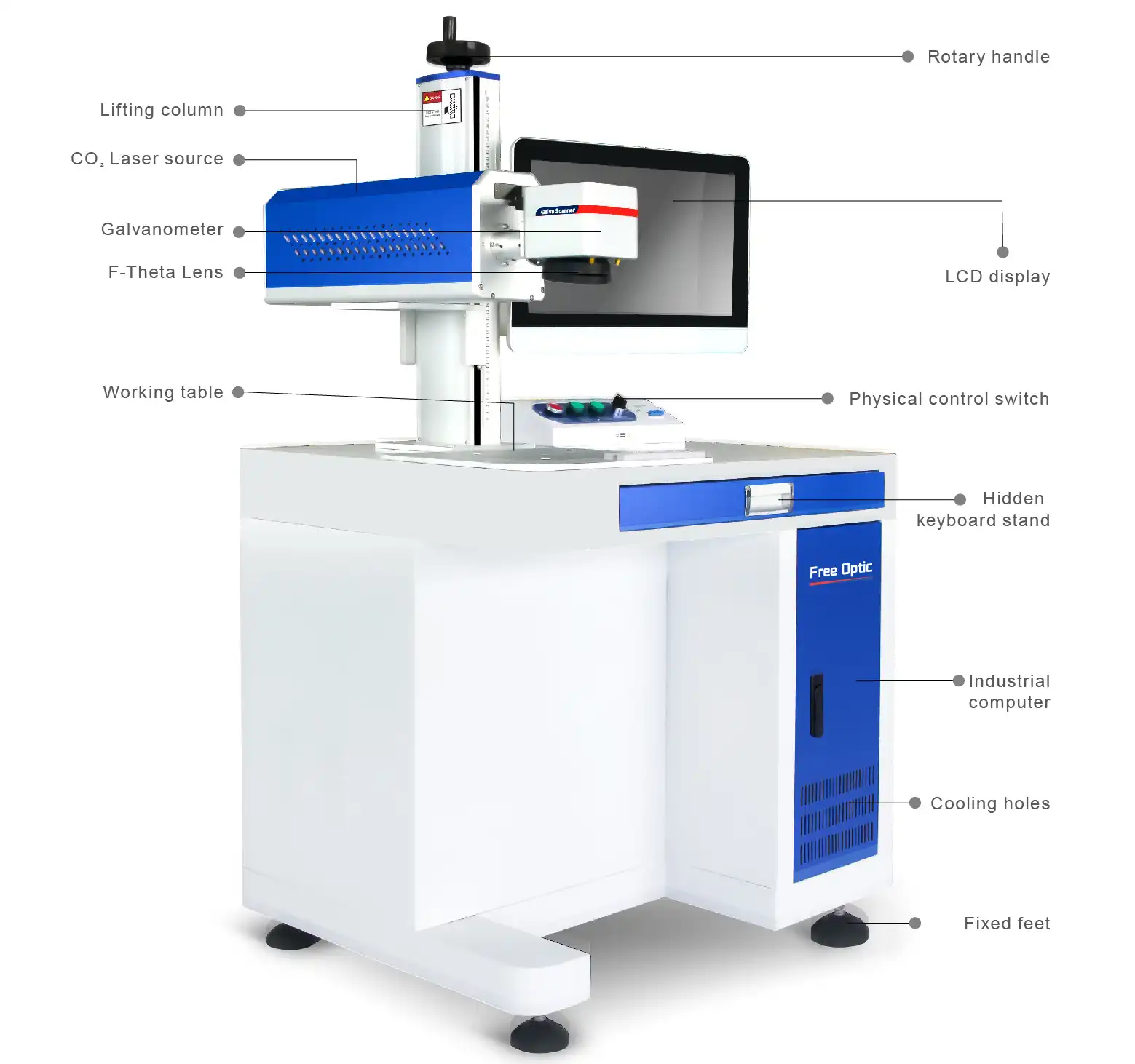

머신 주요 구성

High-quality Radio Frequency CO2 Laser Tube

CRD or Davi brand

30W, 40W, 60W power

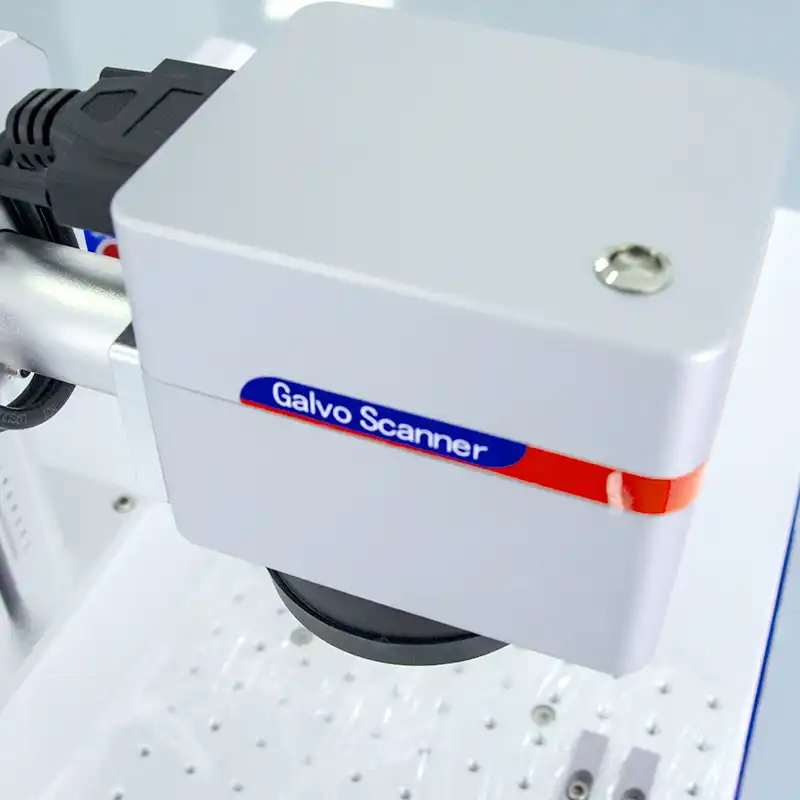

High-speed digital galvanometer
Double red focus

고투명 F-세타 렌즈
The light spot is finer, the anti-dirty coating is wear-resistant and anti-corrosion, and the focus is clear

BJ JCZ 정품 컨트롤 보드

EZCAD 전문 마킹기 소프트웨어지원 영어, 터키어, 스페인어, 러시아어, 베트남어, 독일어, 이탈리아어, 한국어, 일본어 및 기타 언어

지원 QR코드, 바코드, 일련 번호, 간단한 그래픽

구성 옵션

3D 파이버 레이저 마킹 조각 기계

기술 매개변수

FP-35T CO2 Laser Marking Machine Technical Parameters
1	모델	FP-35T
2	마킹 속도	≤12000mm/s
3	Beam diameter	1.8±0.2mm
4	레이저 파장	10.55µm-10.63µm
5	Power stability	≤3W
6	Laser output power	≥40W/≥60W (at 25 C)
7	Beam divergence	7.5±5Mard Radian full angle
8	Degree of polarization	Linearly polarized (> 100: 1) parallel to width direction
9	표시 범위	110x110mm (standard)
10	문자 크기	0.2mmx0.2mm
11	반복성	0.01mm
12	총 전력	≤600W
13	Interface	USB
14	Working environment	Clean or less dusty
15	Working hours	24 hours
16	냉각 시스템	공기 냉각
17	전원 공급 장치	AC220V±10%, 50hz/60hz
18	파일 형식	BMP/DXF/PLT/JPEG/HPGL

CO2 Laser Marking Samples

Glass Engraving Laser Marking Machine
