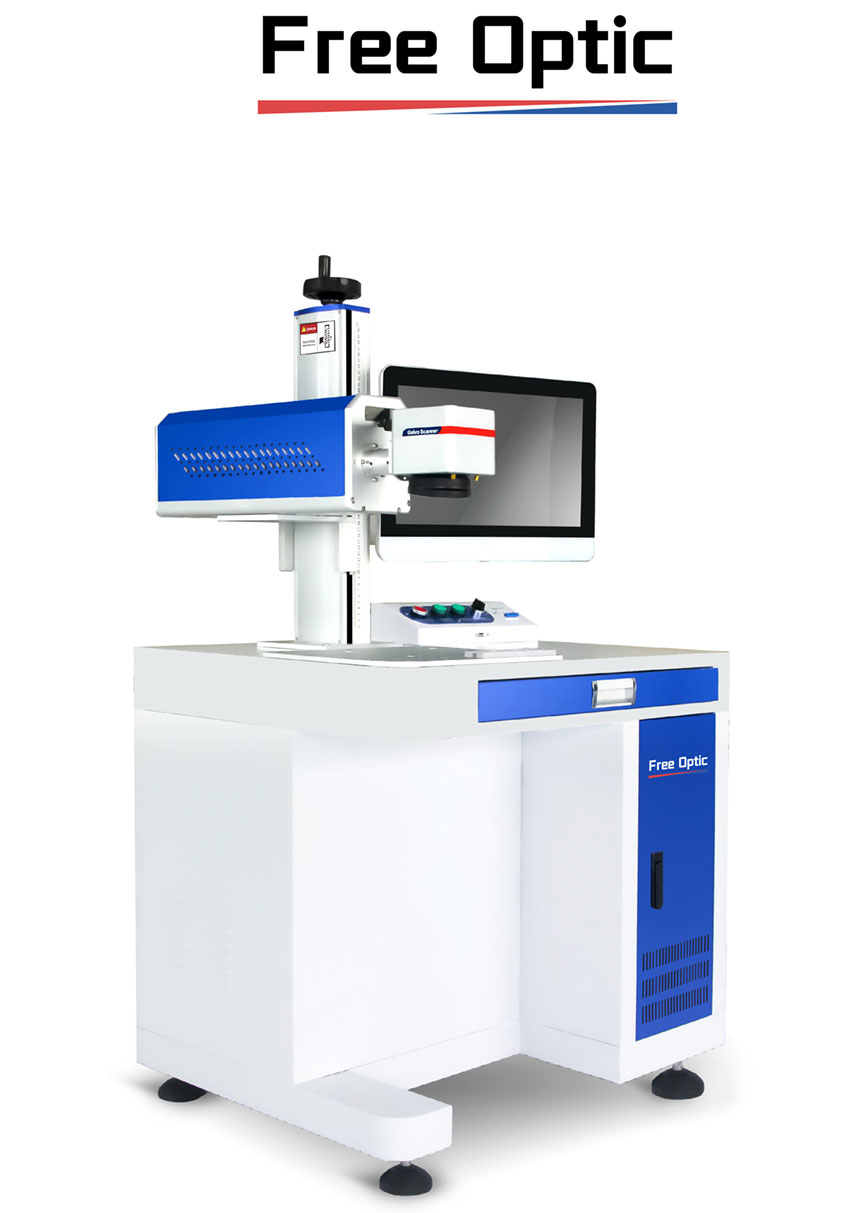

RF 35w 55w 60w Co2 Laser Marking Machine Co2 Laser Engraving Machine for Wood Textile Plastic Nonmetals

Short Description:

CO² Desktop Laser Marking Machine is suitable for non-metallic materials, including wood, paper, plastic (includ-ing organic glass), leather, cloth, ceramics, food materials, etc. It is mainly used in fields that require high smoothness and fineness, such as electronic products, wood furniture, pharmaceutical packaging, beverage packaging, etc.


Product Detail

Product Tags

Product Advantages

This series of laser marking machines uses high-quality radio frequency CO2 lasers, high-quality optical components, good optical modes, stable and reliable long-term operating system performance, integrated overall design, compact structure, and stable performance.
Suitable for marking, cutting and punching various non-metallic materials, such as plastic, rubber, resin, ceramics, coating, stone, leather, acrylic, wood, paper, cloth, etc. Widely used in clothing, leather products, electronic components, pharmaceuti-cal/food packaging, handicrafts and other fields.

二氧化碳台式202312_画板 1

Technical Parameters

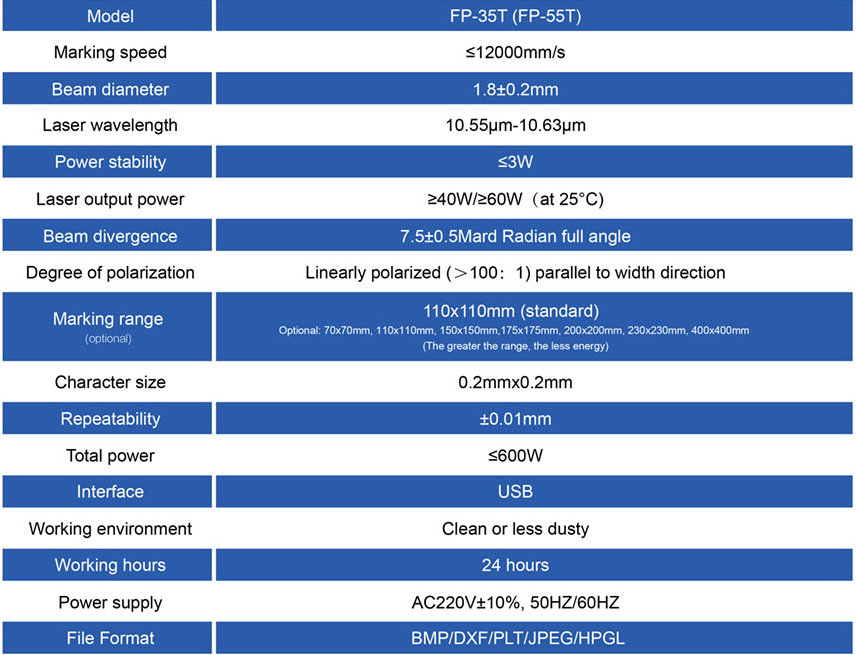

FP-35T CO2 Laser Marking Machine Technical Parameters
1 Model FP-35T
2 Marking speed  ≤12000mm/s
3 Beam diameter 1.8±0.2mm
4 Laser wavelength 10.55µm-10.63µm
5 Power stability  ≤3W
6 Laser output power  ≥40W/≥60W (at 25 C)
7 Beam divergence 7.5±5Mard Radian full angle
8 Degree of polarization Linearly polarized (> 100: 1) parallel to width direction
9 Marking range 110x110mm (standard)
10 Character size 0.2mmx0.2mm
11 Repeatability 0.01mm
12 Total power  ≤600W
13 Interface USB
14 Working environment Clean or less dusty
15 Working hours 24 hours
16 Cooling system Air cooling
17 Power supply AC220V±10%, 50hz/60hz
18 File format BMP/DXF/PLT/JPEG/HPGL

CO2 Laser Marking Samples

二氧化碳台式202312_画板 1 副本

Product Characteristics

xijie

Wide Range Of Applications
It is suitable for marking, cutting and punching of various non-metallic materials, such as plastic, rubber, resin, ceramics, coating, stone, leather, acrylic, wood, paper, cloth, etc. Widely used in clothing, leather products, electronic components, pharmaceuticals, food packaging, handicrafts and other fields.

Permanent Marker
Laser marking is a marking method that uses a high-energy-density laser to locally irradiate the workpiece to vaporize the surface material or undergo a chemical reaction of color change, thereby leaving a permanent mark.

Easy Operation
With the basics of computer use, you can start to operate the machine within 30 minutes of training.

Easy maintenance
The whole machine adopts a modular assembly method, and each component can be disassembled independently, which is convenient for fault diagnosis and later maintenance.

Product Detail

Low failure rate
Each component adopts the domestic first-line brand to ensure the stability of the product, and the 48-hour aging test method can be packaged and shipped before leaving the factory.

Low environmental requirements
0.5M², the whole machine is small and compact, and can adapt to harsh processing environments.

No consumables required
No need for any consumables, non-toxic, no environmental pollution, high environmental protection

Red light positioning
Using red light positioning system, convenient positioning and high positioning accuracy.

Extensions
Can be extended with additional functions. Such as circular marking, X Y electric workbench, automatic feeding flight marking, etc.

Computer program
Marking is carried out automatically, marking English, numbers, Chinese characters, graphics, and the printing content can be changed arbitrarily.

1. What should I do if there is a problem with the machine during use?
Cooperate with Free Optic, please don't worry about after-sales problems. Once there is any problem with the machine, please contact us at the first time, we have a professional technical team to solve it for you at the first time.

二氧化碳台式202312_画板 1 副本 3

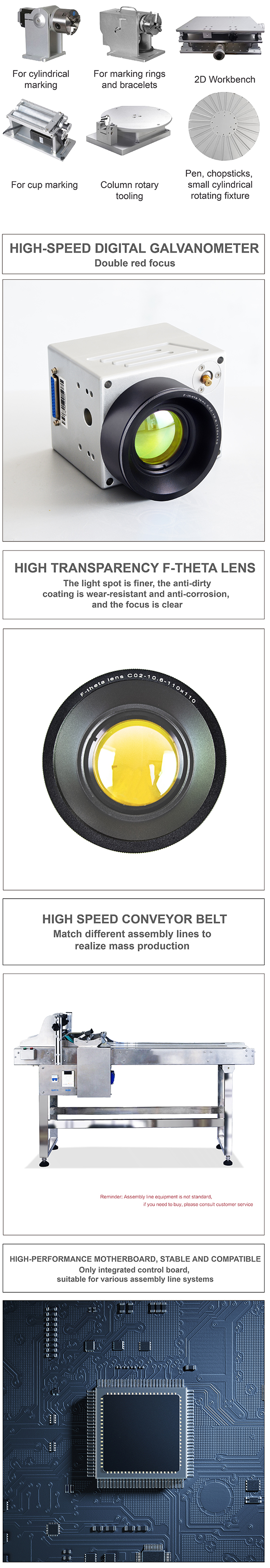

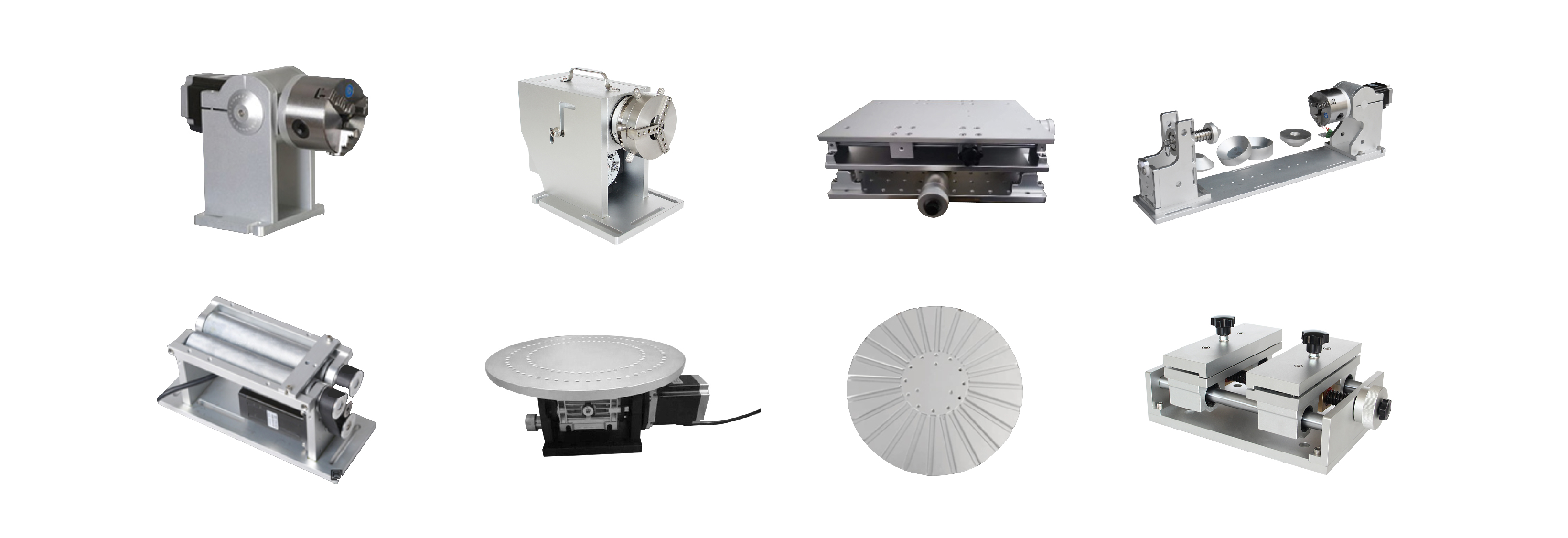

Configuration Options

二氧化碳台式202312-06

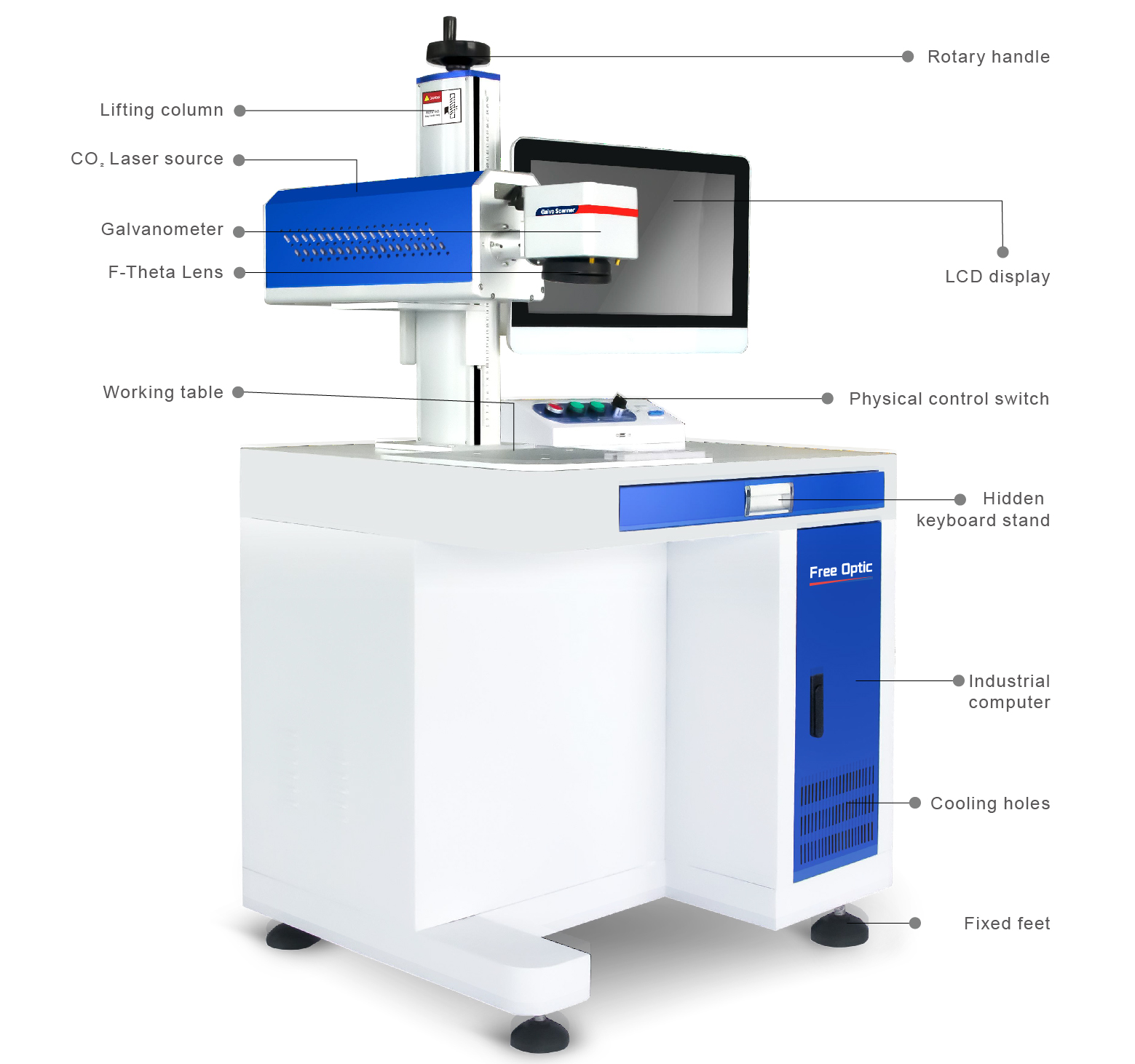

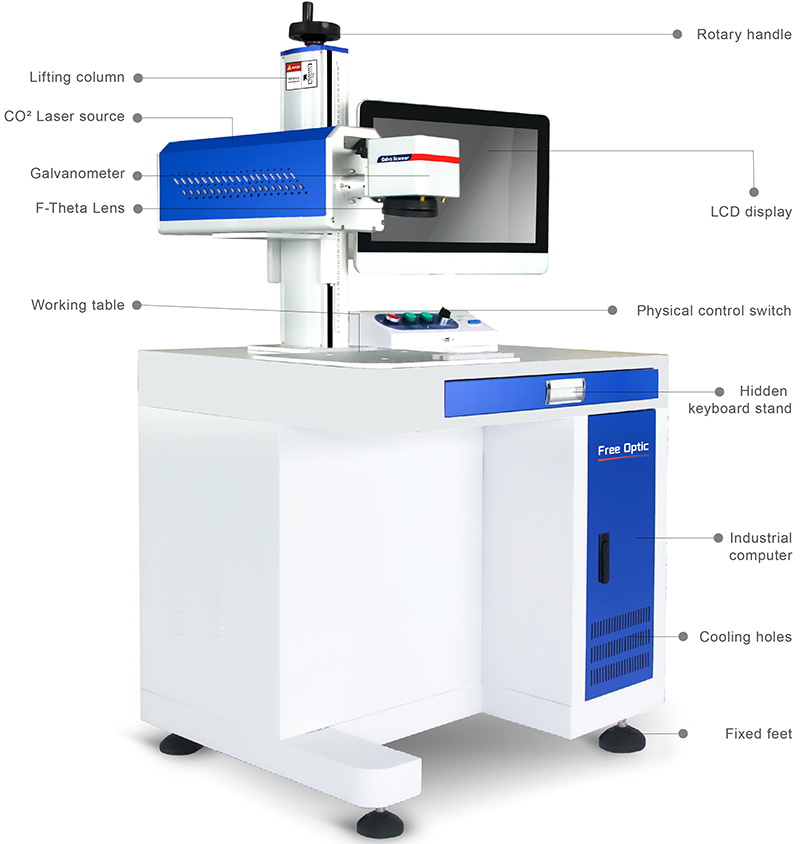

Machine Details Display

二氧化碳台式202312_画板 1 副本 8

 High-quality radio frequency CO2 laser tube, with stable quality & long working life

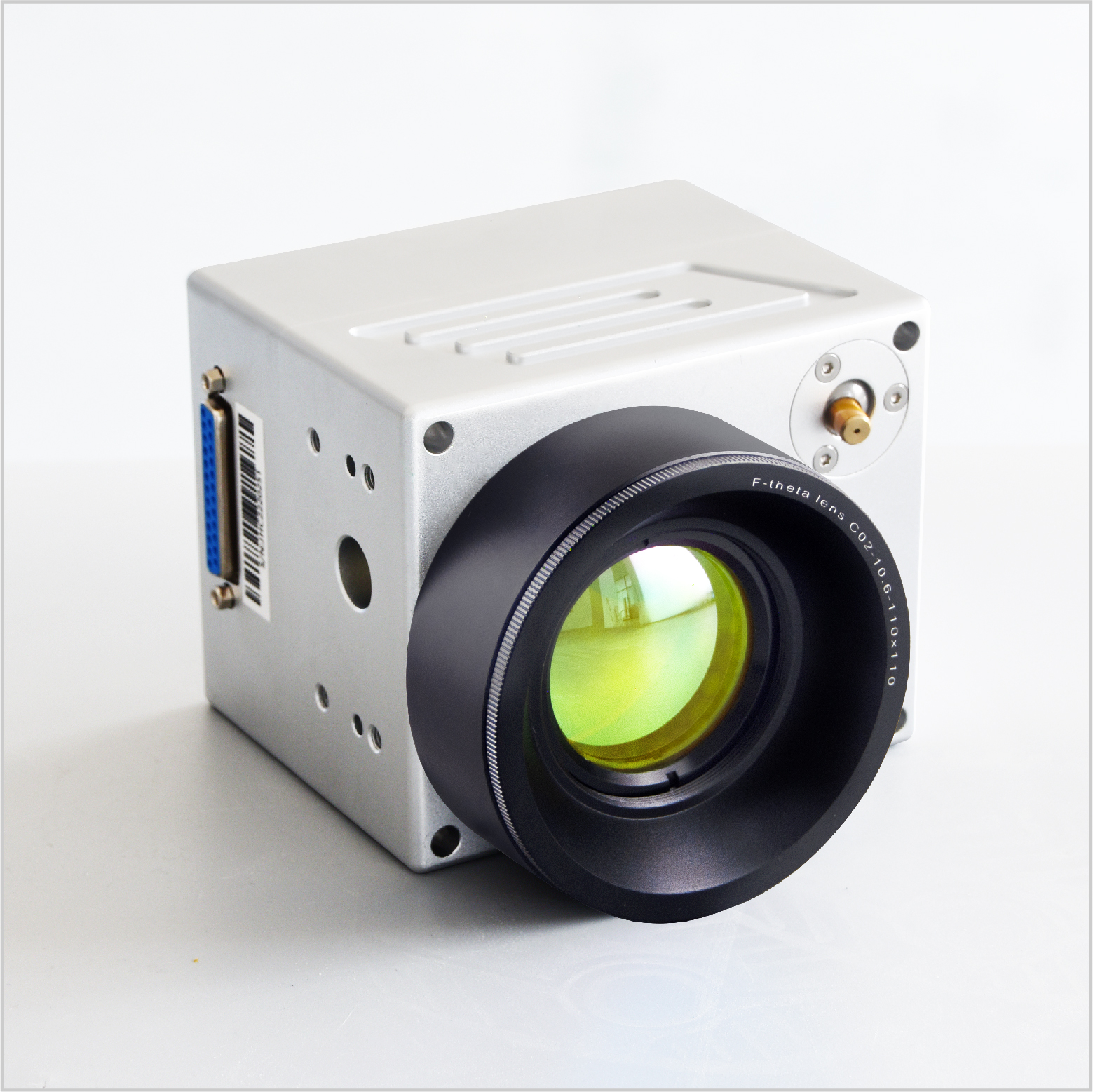

High-speed digital galvanometer
Double red focus

二氧化碳台式202312_画板 1 副本 6
二氧化碳台式202312_画板 1 副本 7

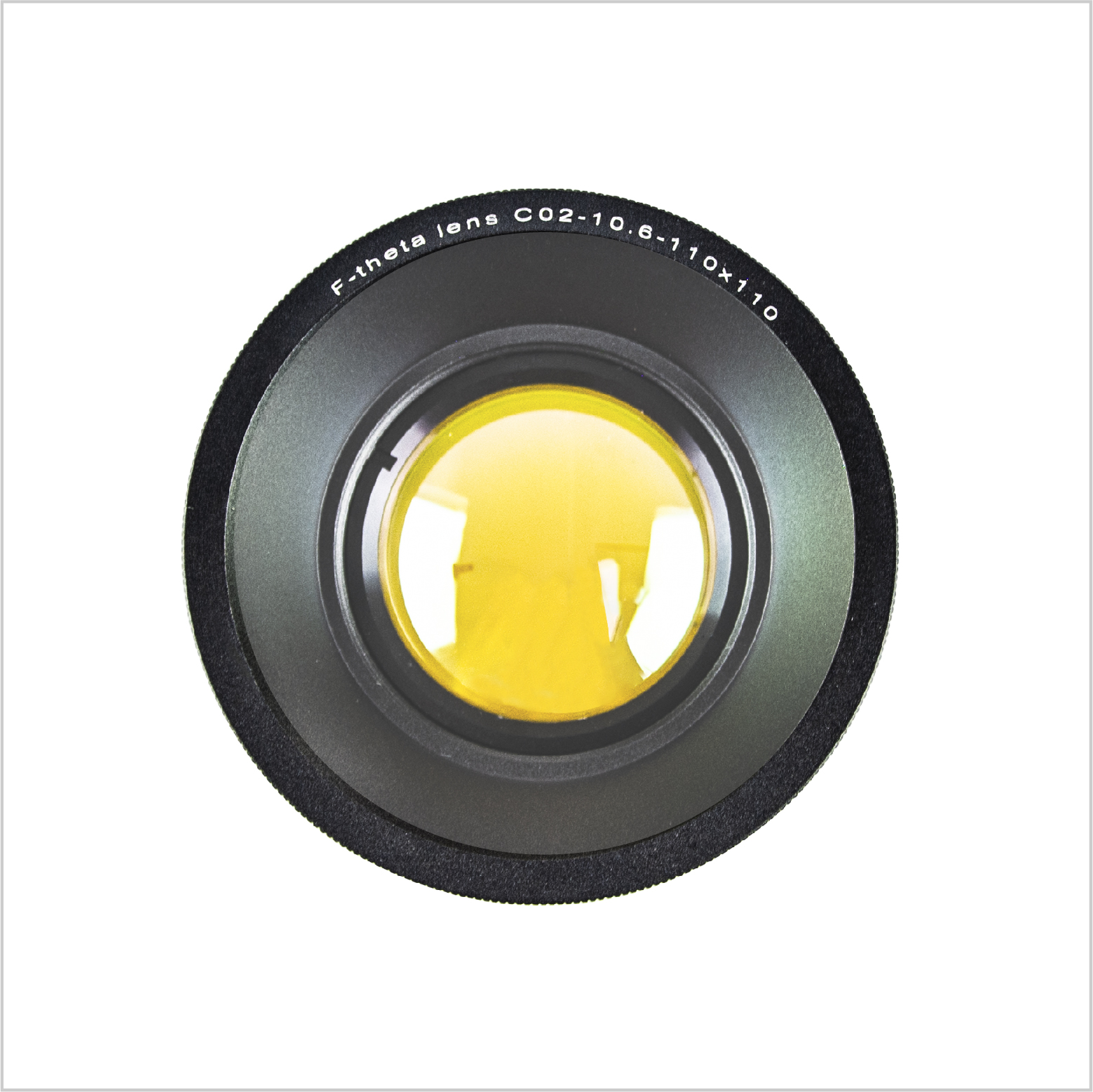

High Transparency F-theta Lens
The light spot is finer, the anti-dirty coating is wear-resistant and anti-corrosion, and the focus is clear

High-performance motherboard, stable and compatible
Only integrated control board, suitable for various assembly line systems

二氧化碳台式202312_画板 1 副本 9
