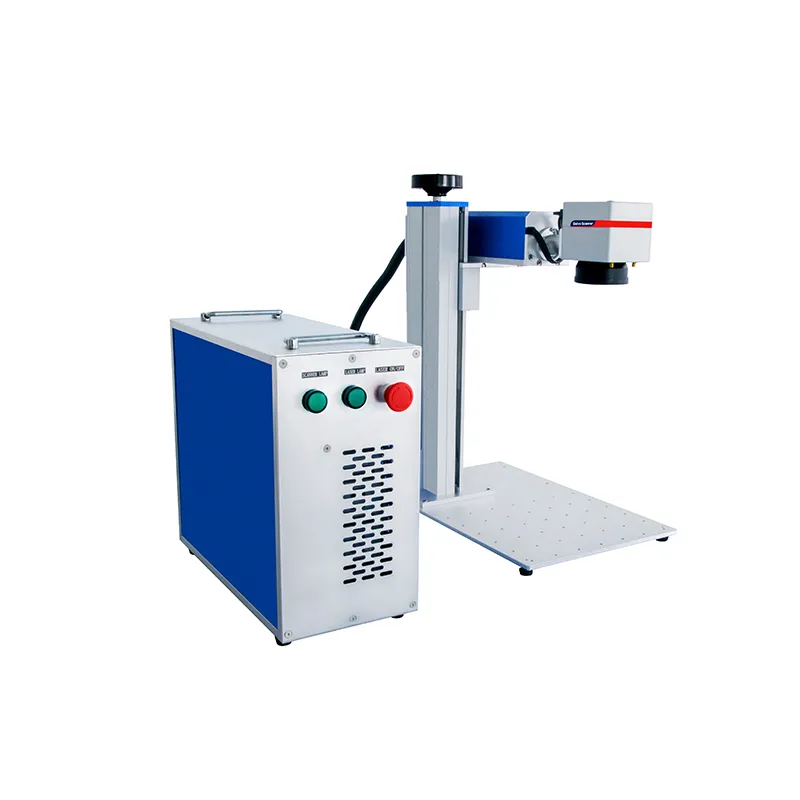

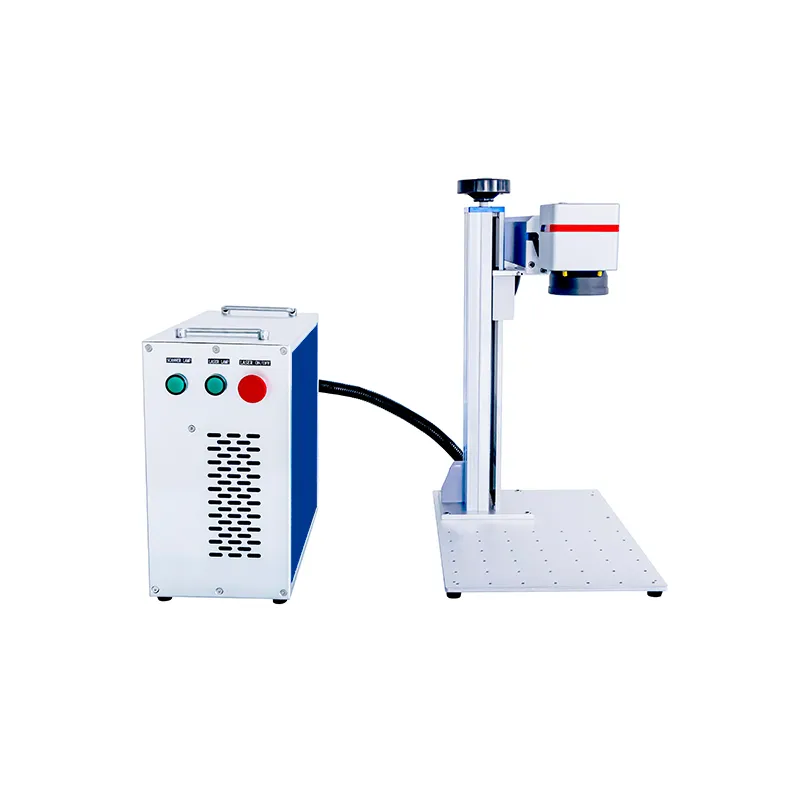

Split Portable Fiber Laser Marking Machine 20W, 30W, 50W, 100W, 200W
Product Features
1. lt is suitable to metal, such as steel, stainless, copper, aluminum, gold, silver, etc. and part of non-metal materials like PVC, ABS, HDPE, tires, mirror etc.
2. Mainly used in electronic products, hardware sanitary ware, clocks, jewelry and other fields that require high smoothness and fineness.
3. lt’s easy to operate. Get started quickly without experience.
Introducing our Portable Fiber Laser Marking Machine — the ultimate mobile solution for high-precision marking wherever you go. As part of our industry-leading suite of Laser Marking Machines, this portable system brings the power of a full industrial solution into a compact, flexible format. At its core is advanced Fiber Laser Marking Machine technology — delivering sharp, permanent marks on metal and certain non-metal surfaces with exceptional speed and clarity.
Key Features

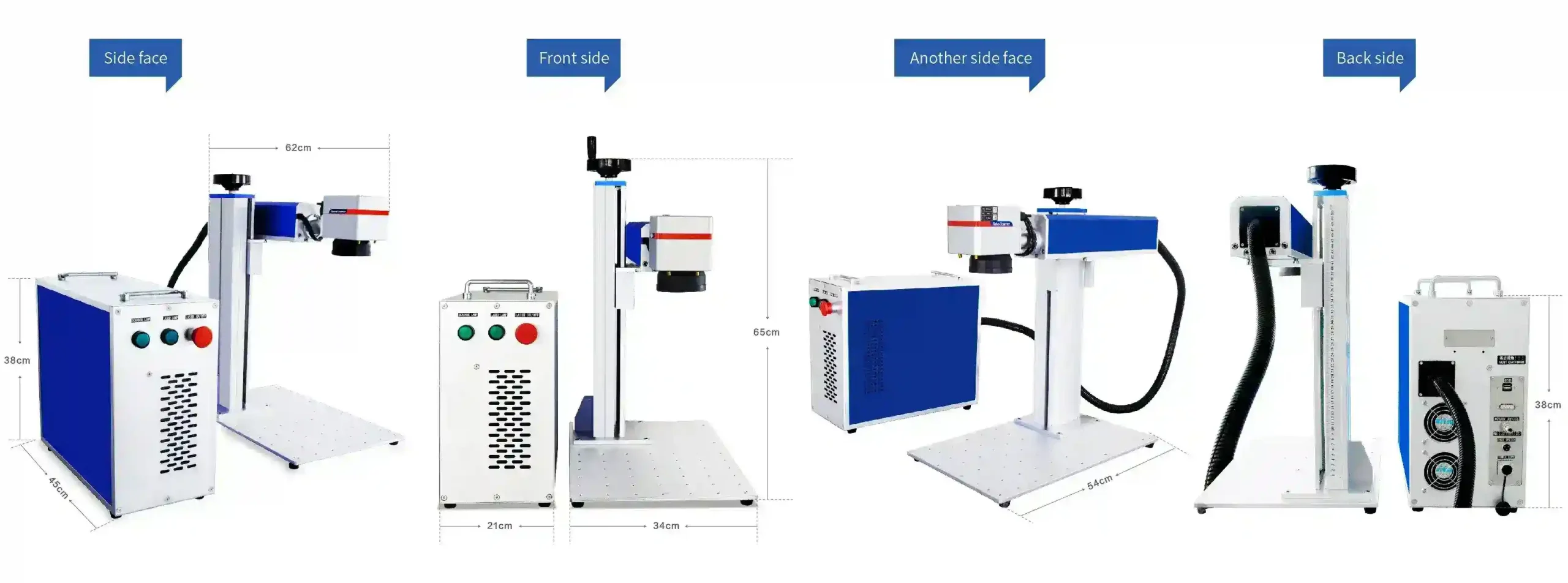

Portable Split Design

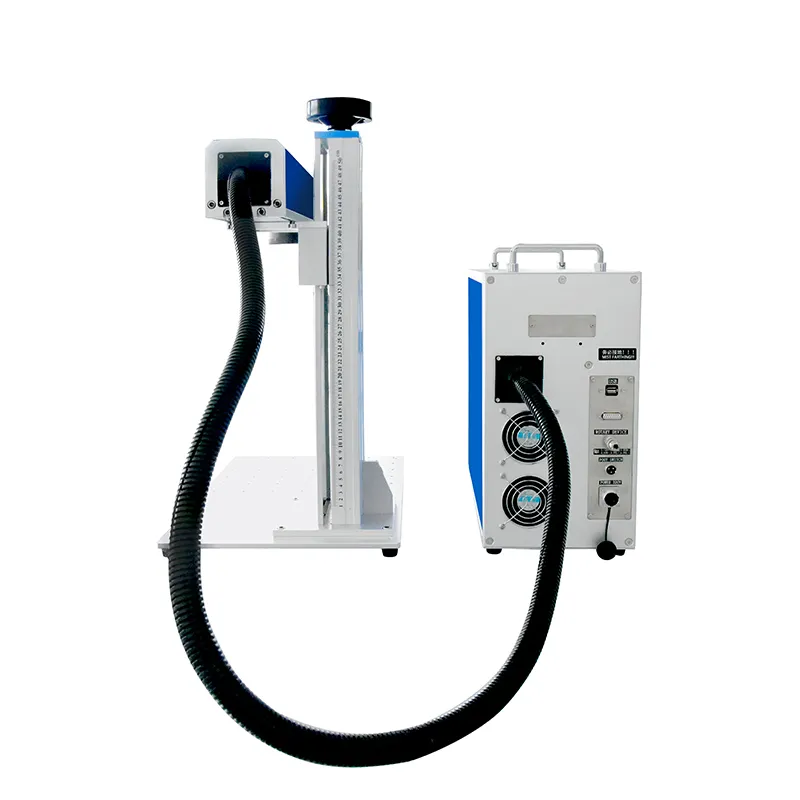

The split structure separates the laser head from the control cabinet, allowing operators to mark oversized or fixed workpieces with greater flexibility and convenience.
Multiple Power Options
Choose the right laser power according to your production needs:
- 20W – High-speed marking for logos, serial numbers, QR codes, and barcodes.
- 30W – Enhanced efficiency for medium-volume industrial production.
- 50W – Ideal for deeper engraving and high-speed batch marking.
- 100W – Suitable for deep engraving and heavy-duty industrial applications.
- 200W – Designed for high-power deep engraving and demanding metal processing.

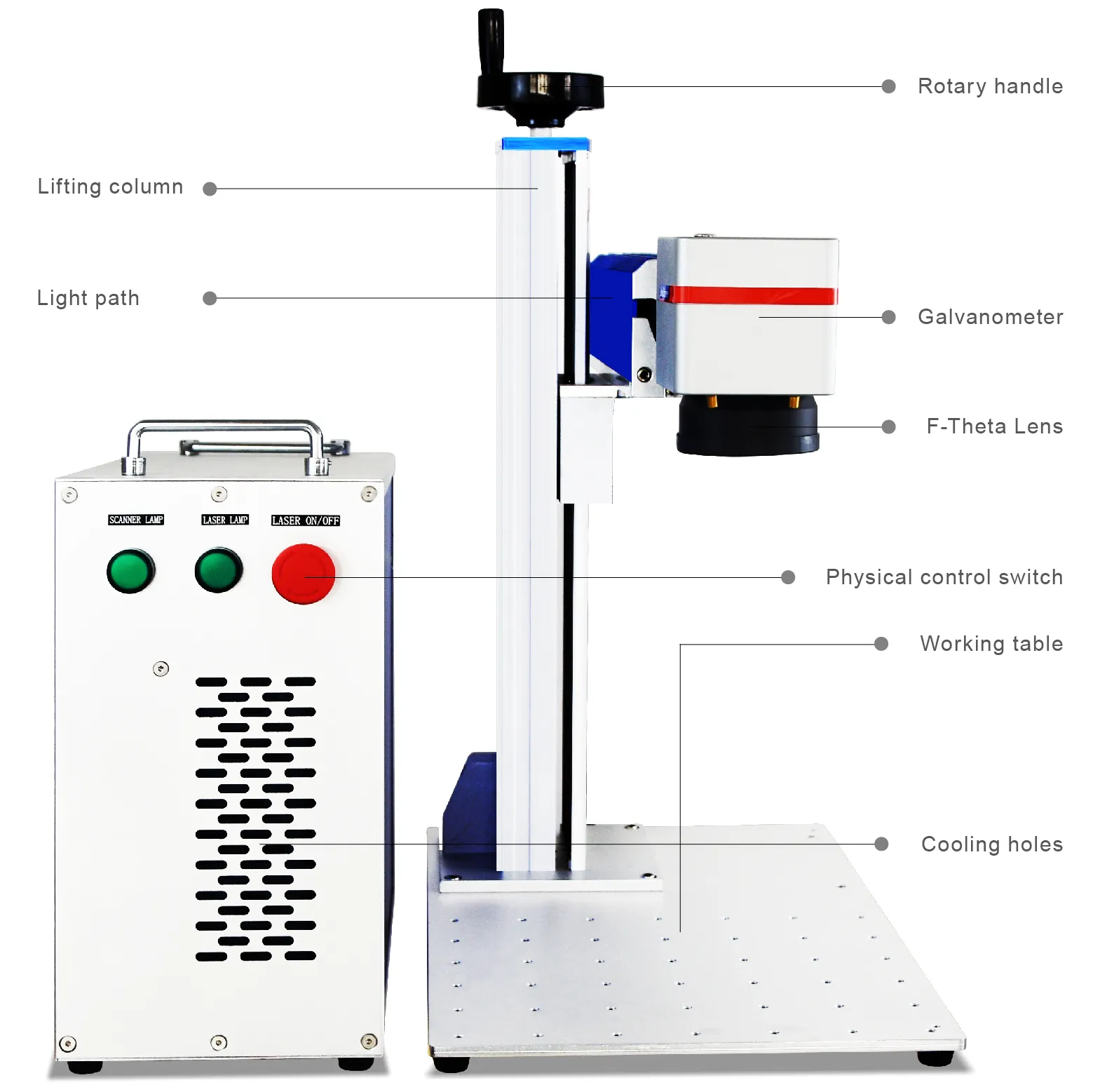

Machine Main Configuration
Chinese top brand laser source, service life exceeds 100,000 hours
External dual red light helps to quickly find the focus position
Lens 110x110mm, 150x150mm, 175x175mm, 200x200mm even bigger size available
EZCAD Professional Marking Machine SoftwareSupports English, Turkish, Spanish, Russian, Vietnamese, German, Italian, Korean, Japanese and other languages
Supports QR code, barcode, serial number, simple graphics
Full anodized aluminum technology, fine polishing, stable work, craftmanufacturing
Configuration Options
Technical Parameters
| FP-50B Fiber Laser Marking Machine Technical Parameters | |||||
| 1 | Model | FP-50B | |||
| 2 | Beam quality | M': < 1.5 (TE MOO M) | |||
| 3 | Average output power | 50W ( 20W, 30W, 100W, 200W optional) | |||
| 4 | Marking speed | ≥12000mm/s | |||
| 5 | Laser wavelength | 1064nm | |||
| 6 | Laser repetition frequency range | 30khz-100khz (adjustable) | |||
| 7 | Character size | 0.2mmx0.2mm | |||
| 8 | Output spot diameter | 0.017mm | |||
| 9 | Marking range | 110x110mm (standard)150x150mm, 175x175mm, 200x200mm, 220x220mm optional | |||
| 10 | Repeatability | 0.01mm | |||
| 11 | Output fiber length | 3M | |||
| 12 | Power adjustment range | 10-100% | |||
| 13 | Total power | ≤500W | |||
| 14 | Cooling system | Air cooling | |||
| 15 | Output power stability | 0-4℃ | |||
| 16 | Power supply | AC220V±10%， 50hz/60hz | |||
| 17 | File format | BMP/DXF/PLT/JPEG/HPGL | |||
Laser Marking Samples
Frequently Asked Questions
Is the machine suitable for production lines?
Yes. The split portable design makes it easy to integrate into automated production lines or use for large stationary workpieces.
Does the software support QR codes and serial numbers?
Yes. The software supports automatic generation of QR codes, barcodes, serial numbers, variable data, and batch marking.
The Ultimate Portable Laser Engraver for Industrial Metal Marking
When working with oversized, heavy, or immovable metal parts, a standard desktop system simply won't work. Our split-design portable laser engraver gives you the freedom to bring the laser directly to the workpiece. By removing the constraints of a fixed cabinet, this machine doubles as a highly maneuverable handheld laser engraver, perfect for automotive chassis, large steel pipes, and heavy machinery components.
- Unmatched Flexibility: Use the handheld galvo head to mark from any angle, making it the most versatile fiber laser marking machine in your factory.
- High-Power Precision: Available in 20W to 200W, delivering deep, permanent marks on stainless steel, aluminum, and brass faster than any traditional desktop UV laser marking system.
- Zero Consumables: Air-cooled, maintenance-free, and designed for 100,000 hours of continuous industrial operation.
Stop struggling with bulky equipment. Upgrade your production line with a factory-direct portable marking solution that meets strict industrial standards and CE/FDA certifications.
