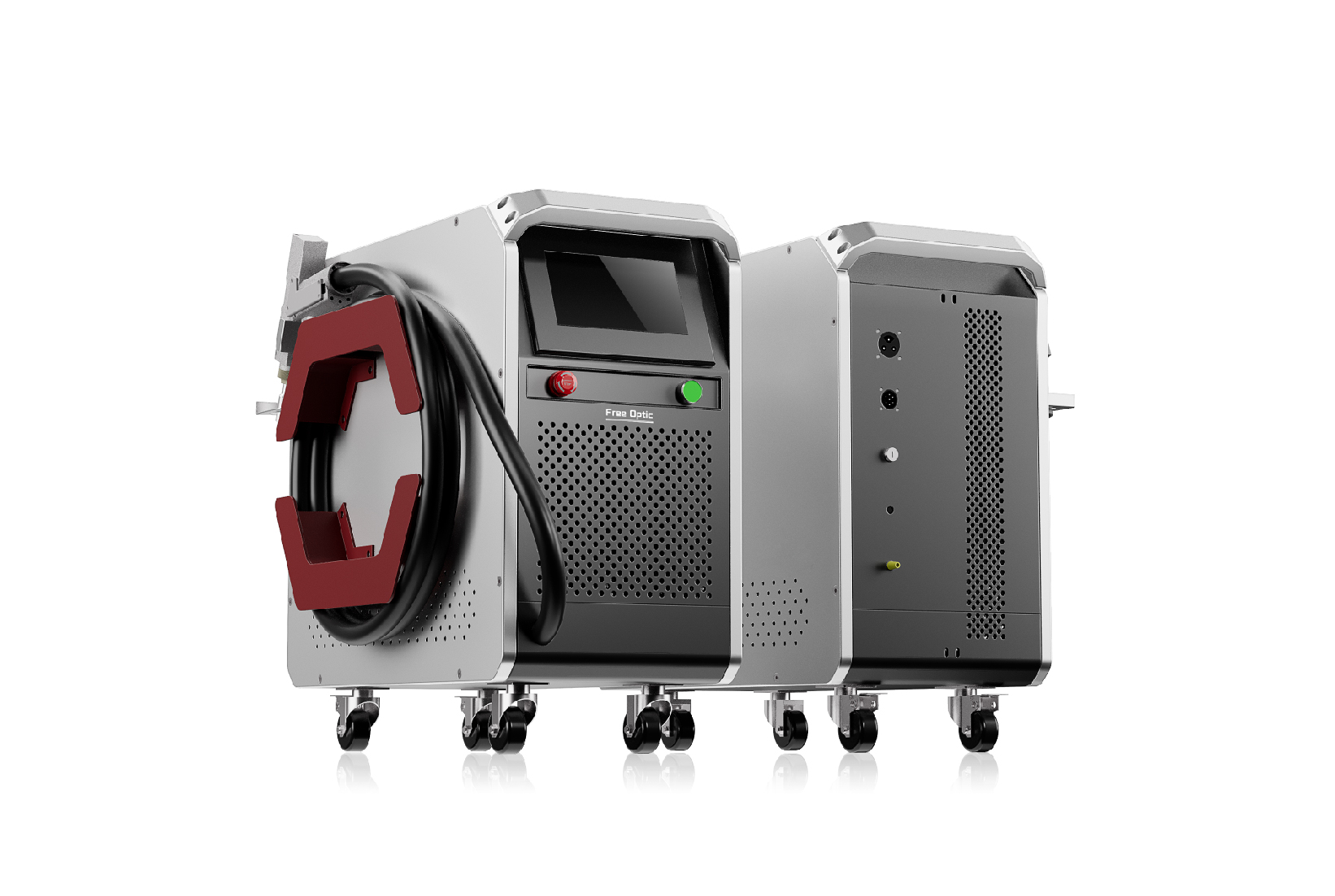

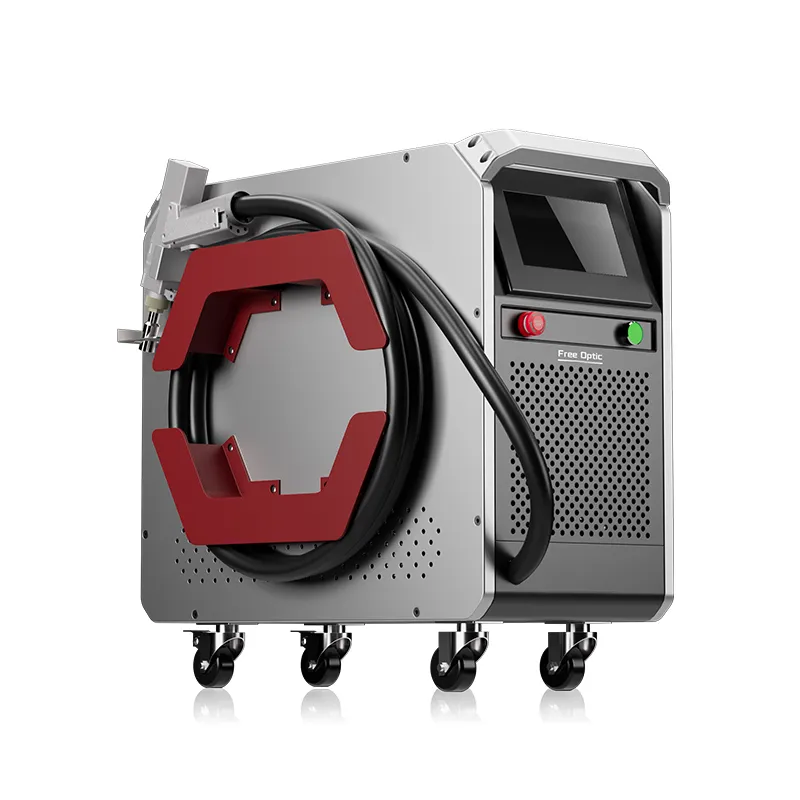

Air Cooling Small Portable Laser Welding Machine
Applicable materials: stainless steel, carbon steel, aluminum, iron, galvanized, copper.
Two different power: 750W/1200W
Penetration: stainless steel 3.5mm, carbon steel 3mm, aluminum alloy 3mm
| Air CoolingSmall Portable Laser Welding Machine | |||||
| 1 | Model | FP-750F(FP-1200F) | |||
| 2 | Average output power | 750W/1200W | |||
| 3 | Handheld type | Handheld laser welding head | |||
| 4 | Machine operating temperature | -20℃~45℃ | |||
| 5 | Penetration | Stainless steel 3.5mm, carbon steel 3mm, Aluminum alloy 3mm( 0.6M/min as an example) | |||
| 6 | Automatic welding wire | 0.8-1.6mm | |||
| 7 | Total power | ≈3.5KW | |||
| 8 | Cooling system | Air cooling | |||
| 9 | Power requirements | AV220V | |||
| 10 | Nitrogen or argon protection (prepared by customer) |
20ml/min | |||

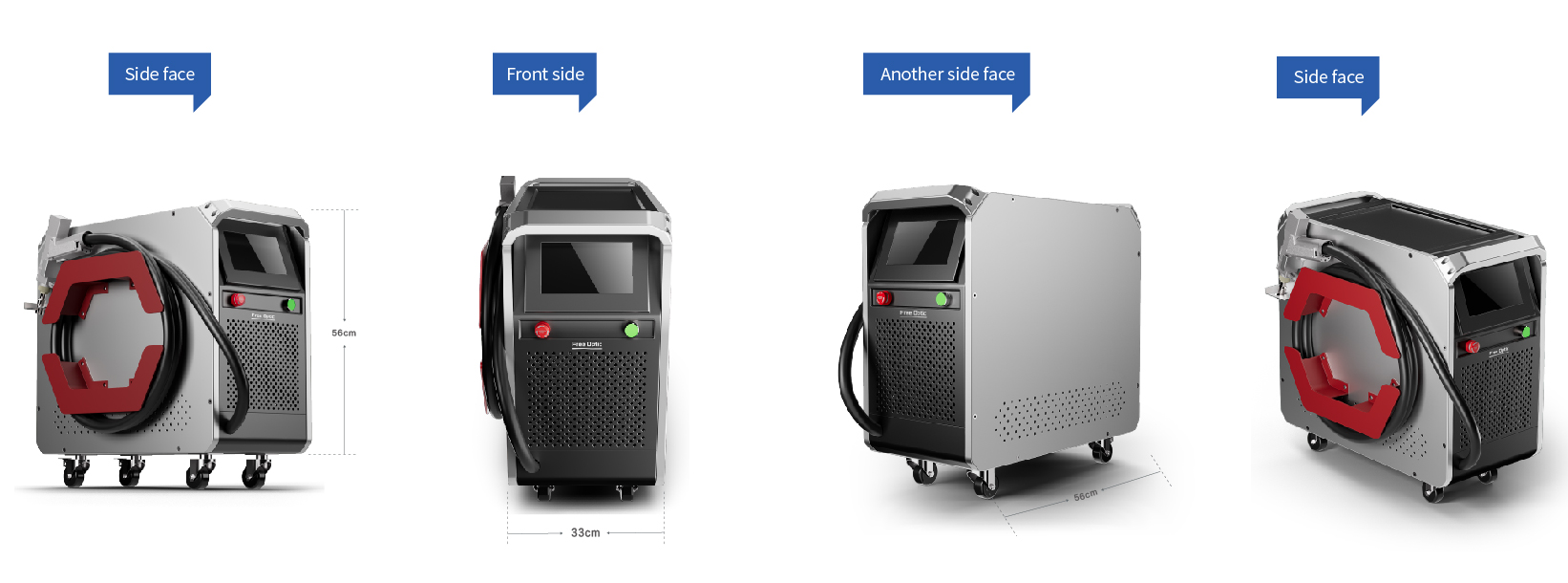

| 11 | Machine size | 56x33x53cm | |||
| 12 | Machine weight | ≈40kgs | |||
| 13 | Welding gun weight | 0.68kgs | |||
| 14 | Swing width | 5mm peak | |||
| 15 | Welding thickness | 3.5mm peak | |||
| 16 | Applicable materials | Stainless steel, carbon steel, Aluminum, iron, galvanized, copper |
|||
Application scope of fiber laser
marking materials
Operator safety
Multi-level sensing device ensures safe use.
Wobble Welding
Increase the width of the weld seam and improve the welding lap capacity

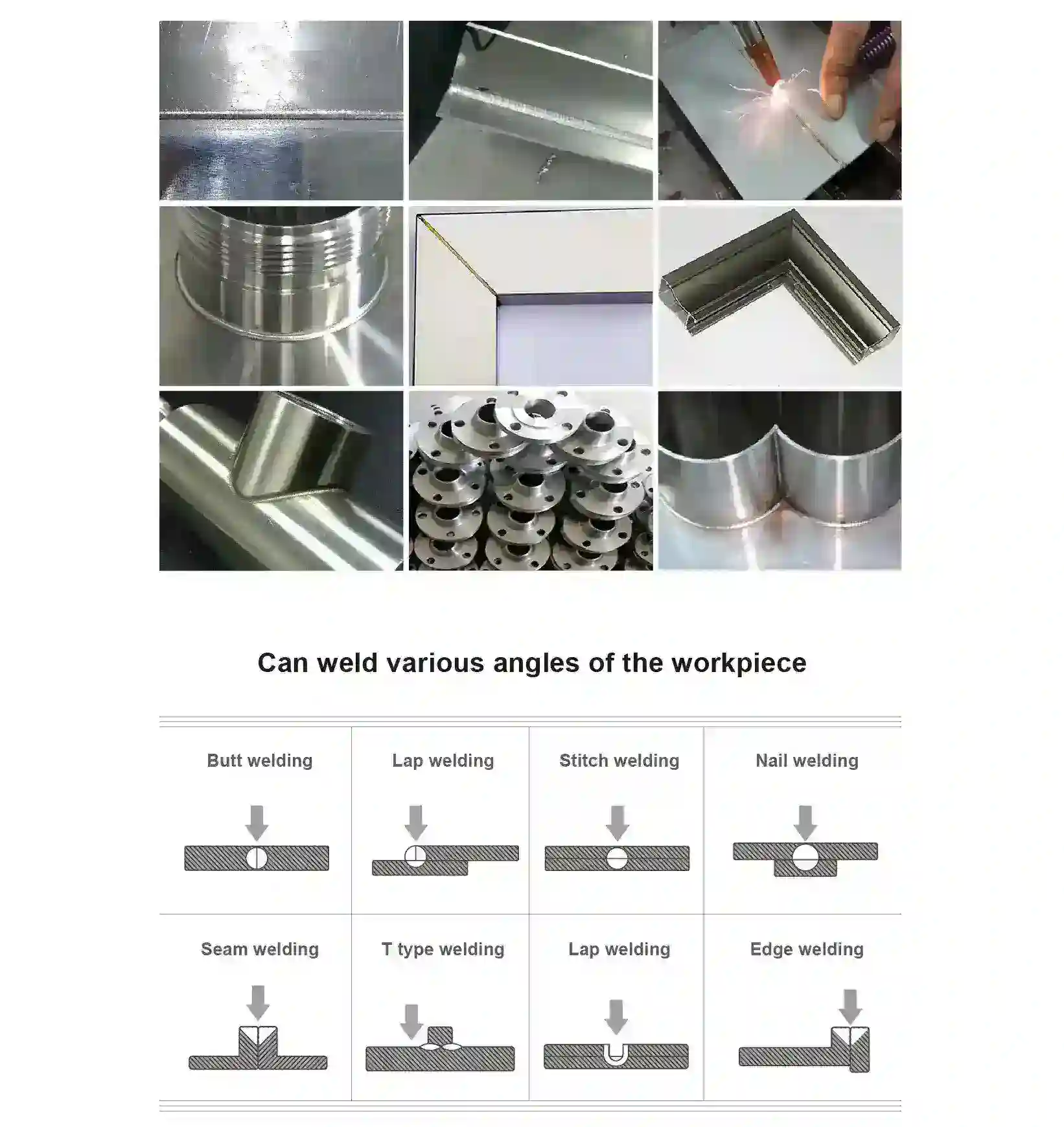

Wide range of welding materials
Carbon steel, stainless steel, galvanized sheet, aluminum sheet and other materials and different thicknesses can be welded
Low environmental requirements
1M², the whole machine is compact and can adapt to harsh processing environments.

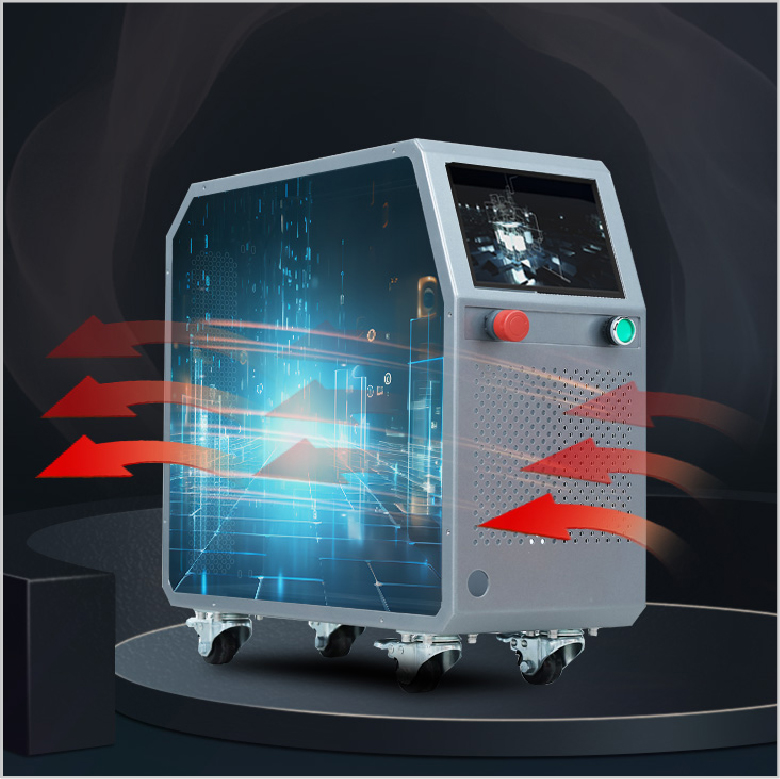

Air-cooled all-in-one machine, energy-saving and maintenance-free

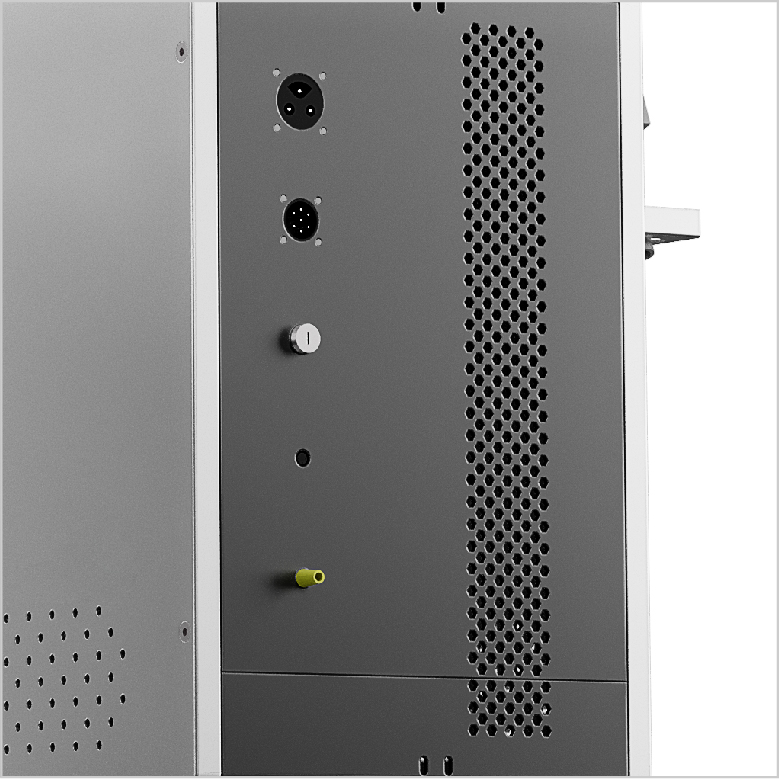

Heat dissipation device installed at the rear Compact components;
Low power consumption, reduce costs
No fear of any bad weather

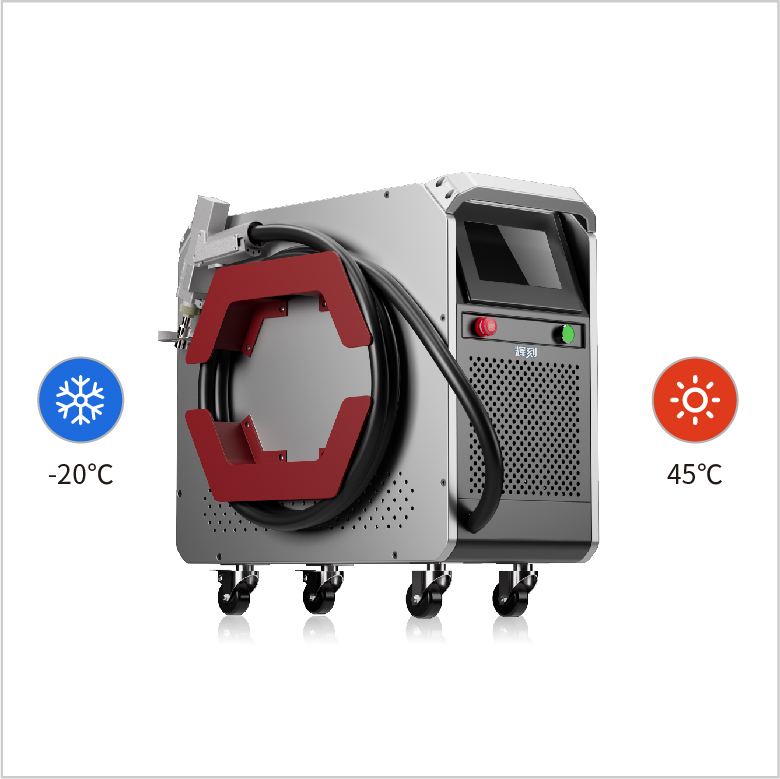

Adapt to ambient temperature

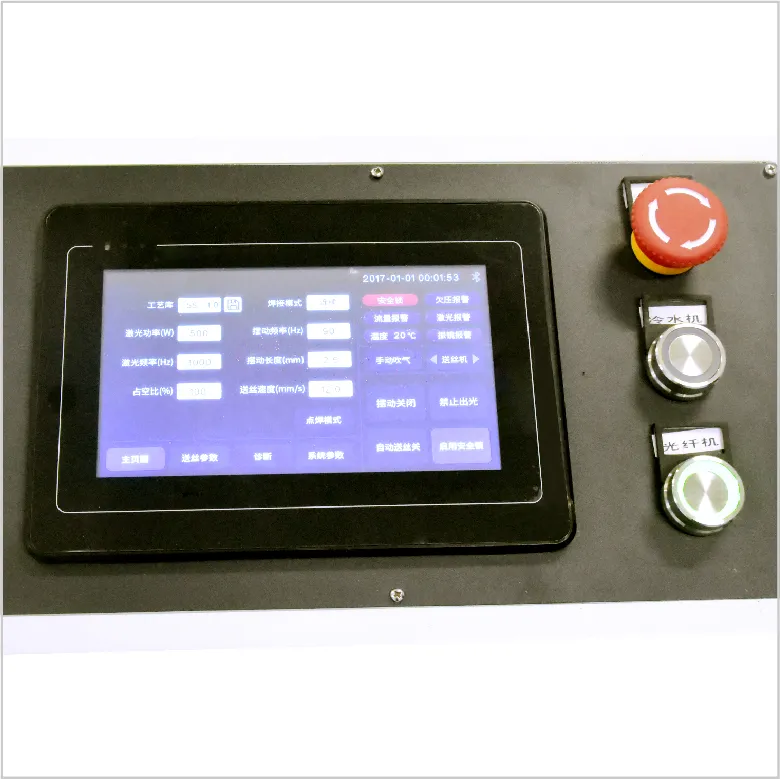

Intelligent operating system
Users with zero basic knowledge can get started quickly

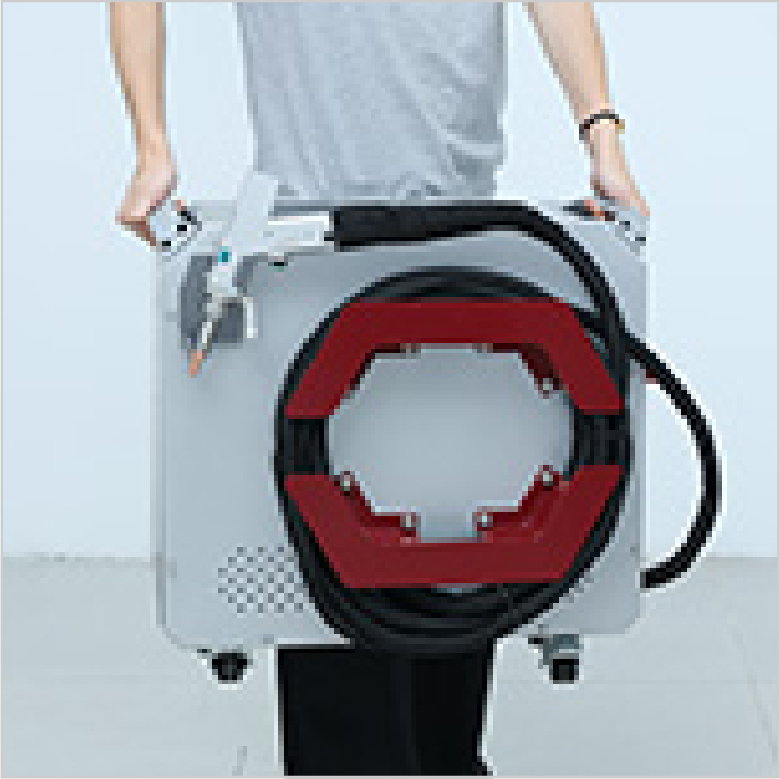

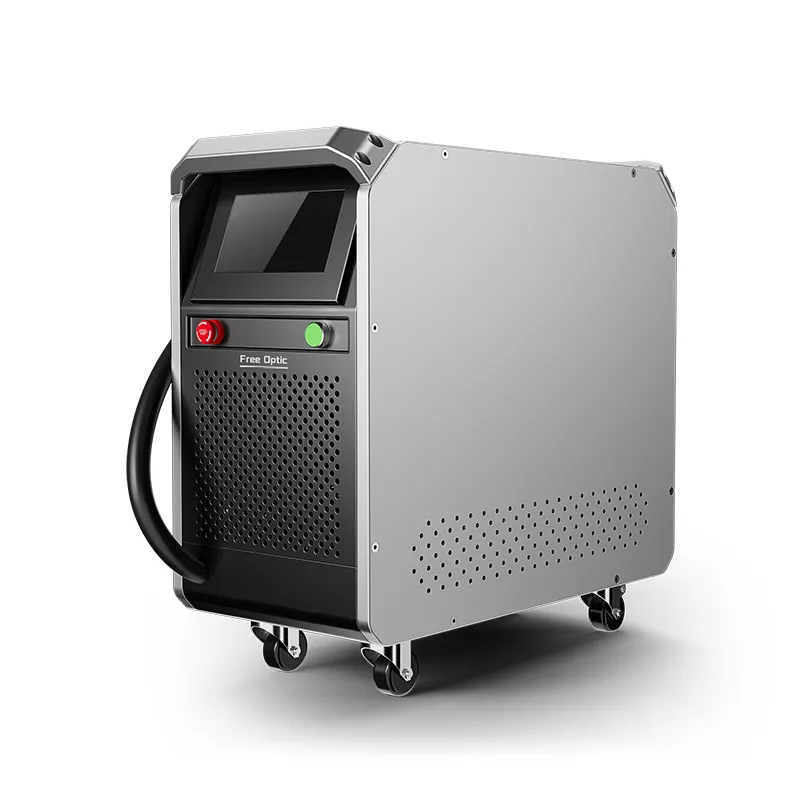

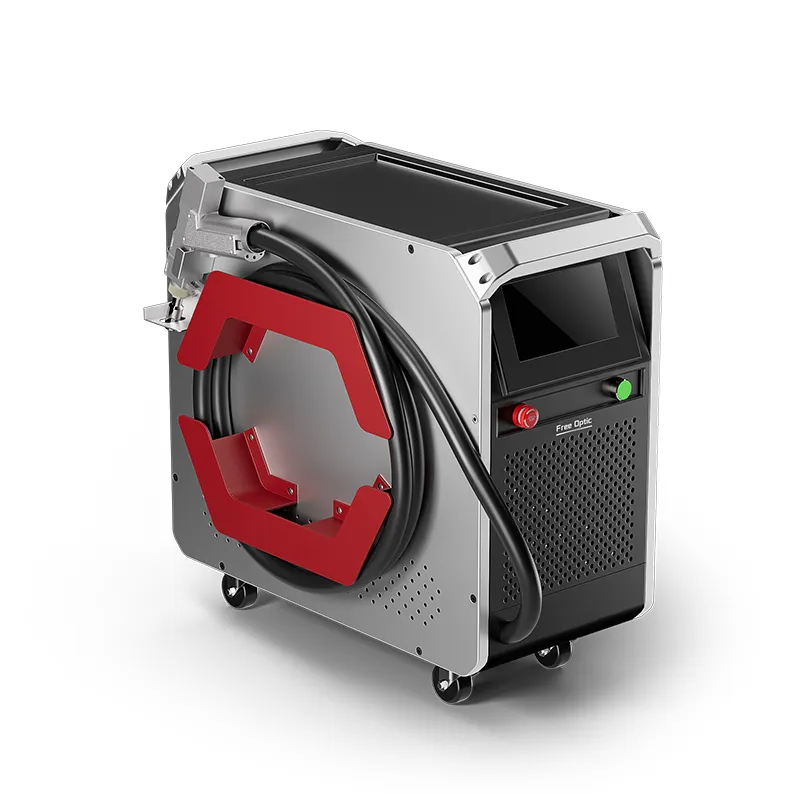

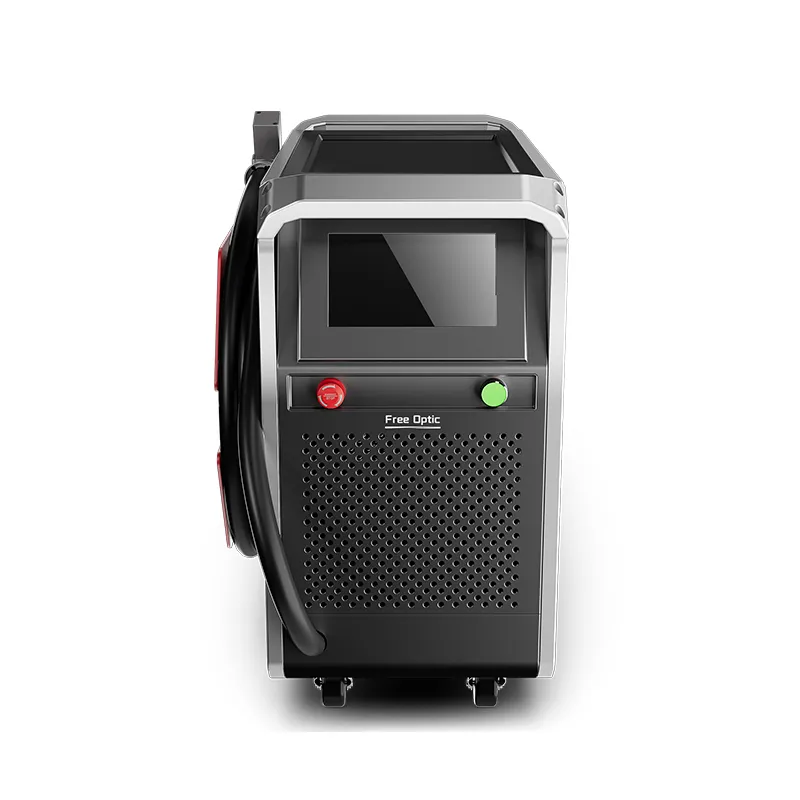

Portable and compact
1 person can carry it

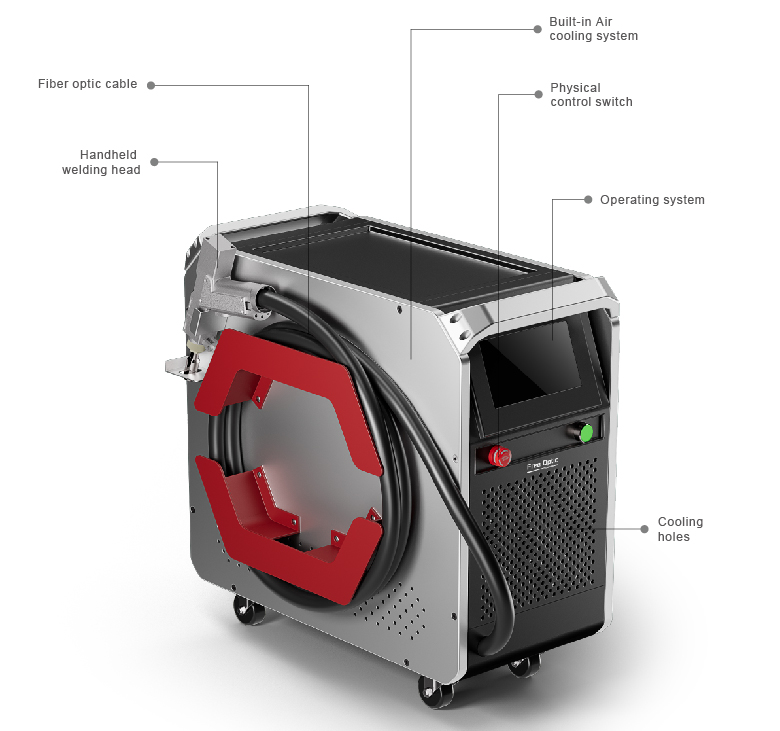

Built-in air cooling system
Easily cope with high temperature and high humidity working environment

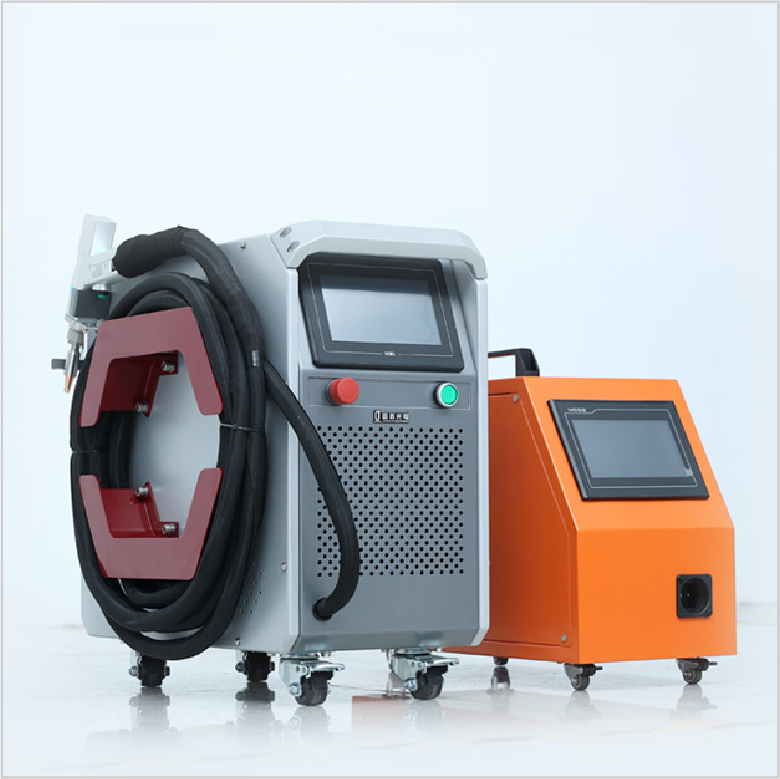

Welding wire 0.8-1.6mm
Equipped with a professional wire feeder
