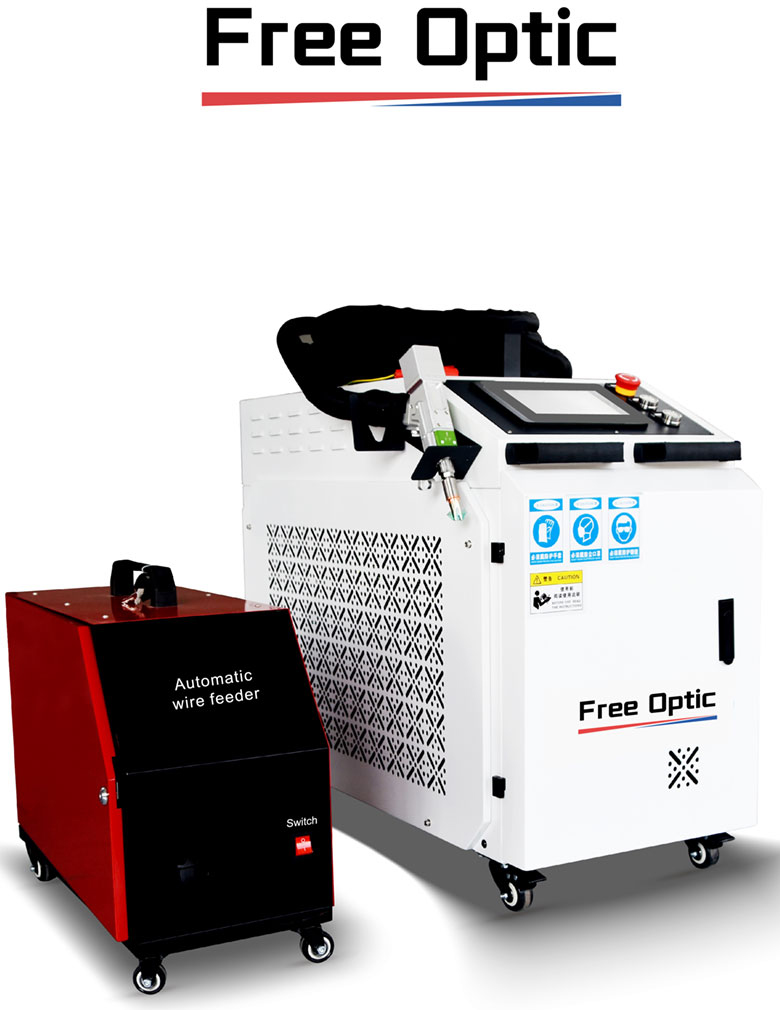

High Productivity Laser Welding Machine 1000W 1500W 2000W 3000W Fiber Laser Optic Welder Channel Handheld Laser Welding Machine

Short Description:

FP-1000S handheld fiber laser welding machine integrates the functions of welding, cutting and cleaning. Compared with traditional welding methods, it can significantly increase the welding speed, is easier to learn and operate, and can work on a wider range of materials and thicknesses. Higher-quality, uniform welds with virtually no distortion, undercut or burn-through.


Product Detail

Product Tags

Product Advantages

Fiber laser welding: Stainless steel, mild steel, aluminum and galvanized sheet up to 6mm
Fiber laser cleaning: The cleaning width can be adjusted up to 70mm
Fiber laser cutting: Cutting thickness can be adjusted up to 7mm

手持焊2.0_画板 1

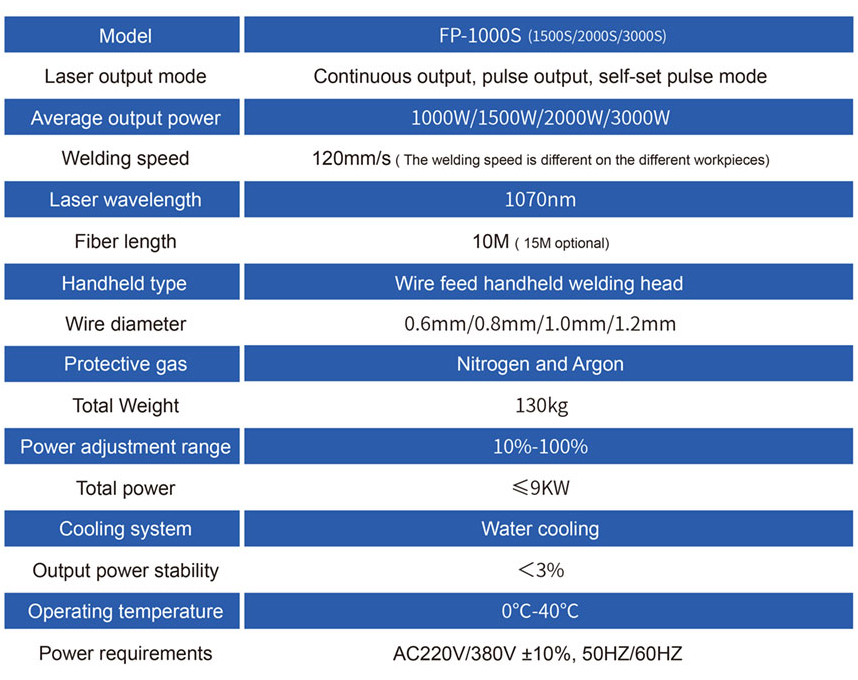

Technical Parameters

FP-1000S Series Handheld Fiber Laser Welding Integrated Cleaning and Cutting MachineTechnical Parameters
1 Model FP-1000S(1500S/2000S/3000S)
2 Laser output mode Continuous output, pulse output, self-set pulse mode
3  Average output power 1000W/1500W/2000W/3000W
4  Welding speed 120mm/s ( The welding speed is different on the different workpieces)
5  Laser wavelength 1070nm
6  Fiber length  10M ( 15M optional)
7  Handheld type Wire feed handheld welding head
8 Wire diameter 0.6mm/0.8mm/1.0mm/1.2mm
9  Protective gas Nitrogen and Argon
10 Total Weight 130kg
11  Power adjustment range 10%-100%
12  Total power ≤9KW
13  Cooling system Water cooling
14 Output power stability 3%
15 Operating temperature 0℃-40℃
16  Power requirements AC220V/380V ±10%, 50HZ/60HZ

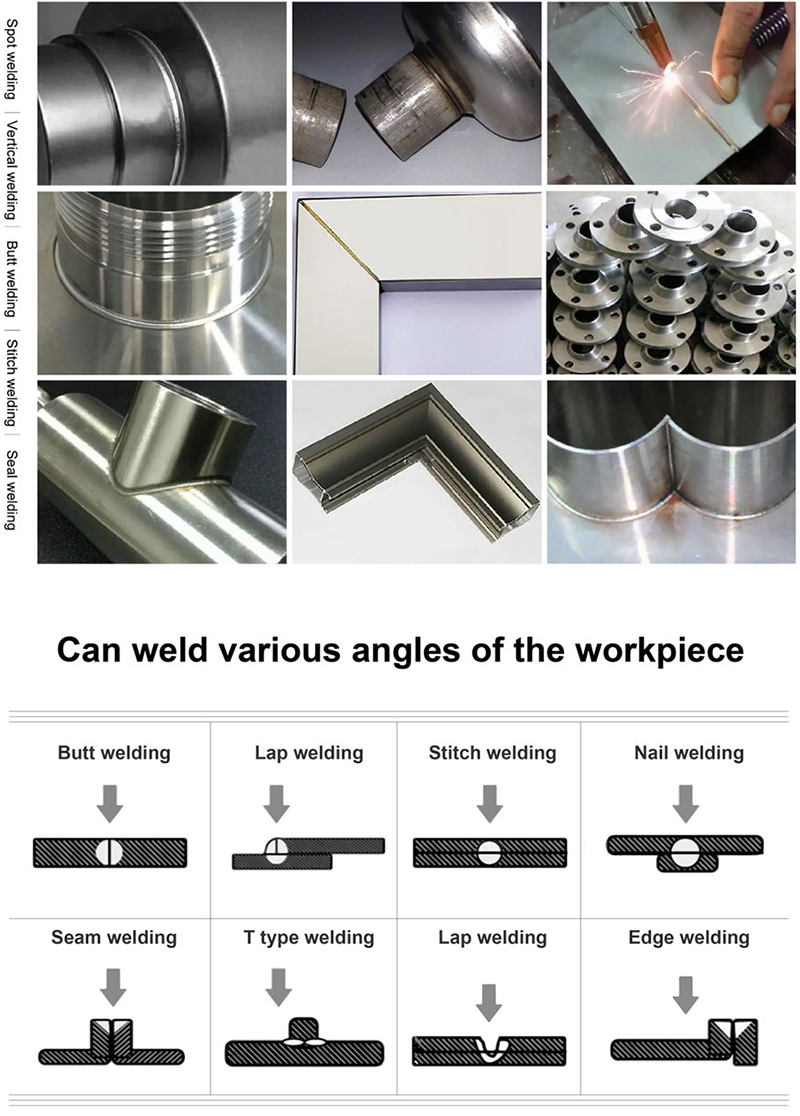

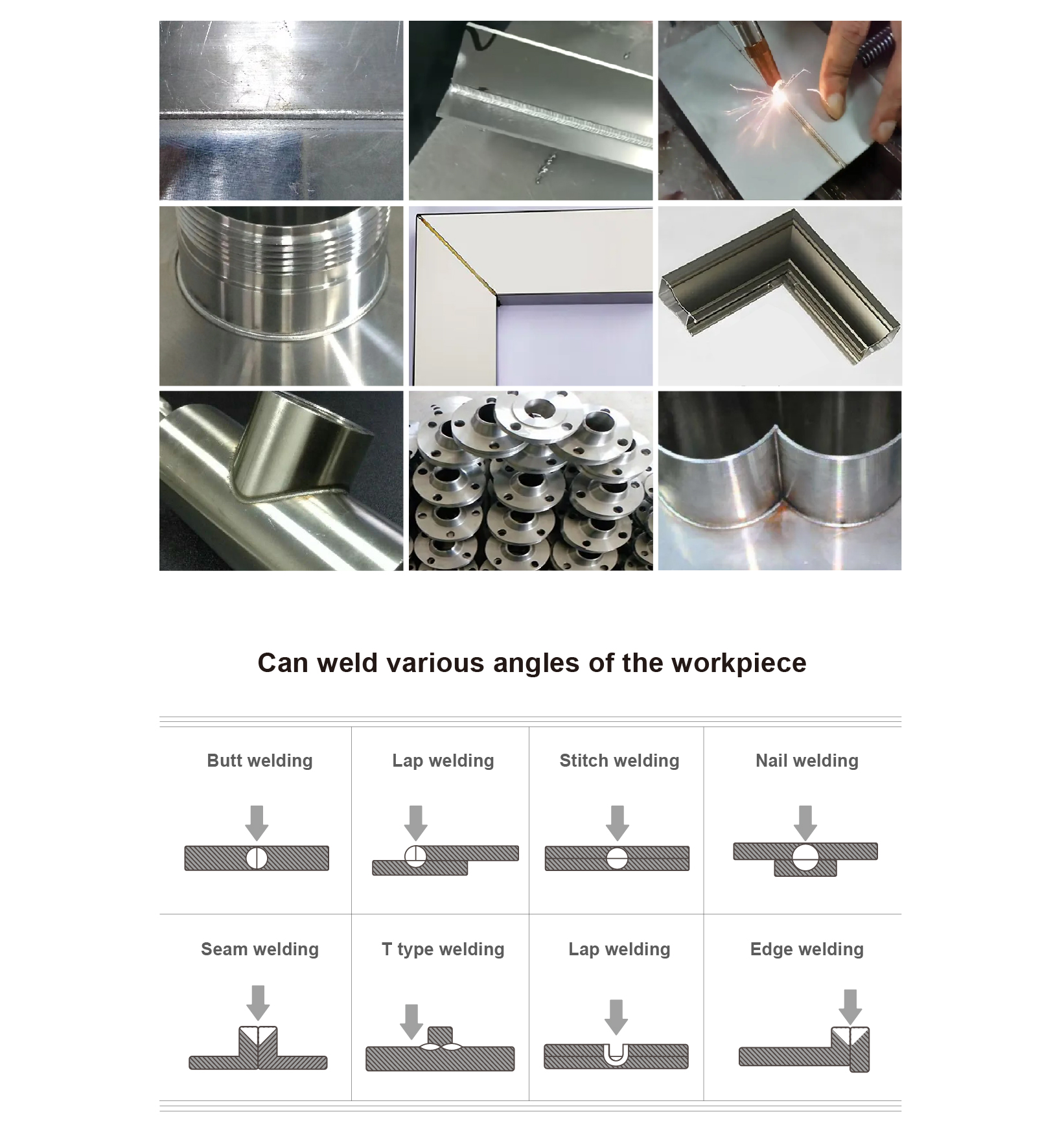

Scope Of Application

Application scope of fiber laser
marking materials

手持焊2.0_画板 1 副本

Product Characteristics

main (1)

High speed welding
The welding speed is 4-7 times that of the traditional welding method.

High welding quality
The heat-affected zone is small, the weld seam is uniform, and it is not easy to deform.

Easy to operate
Easy to learn, low requirements on workers' technical level, quick to learn.

Beautiful welding seam
After the welding is completed, there is almost no need for grinding, saving labor.

Product Detail

Operator safety
Multi-level sensing device ensures safe use.

Wobble Welding
Increase the width of the weld seam and improve the welding lap capacity

Wide range of welding materials
Carbon steel, stainless steel, galvanized sheet, aluminum sheet and other materials and different thicknesses can be welded

Low environmental requirements
1M², the whole machine is compact and can adapt to harsh processing environments.

手持焊

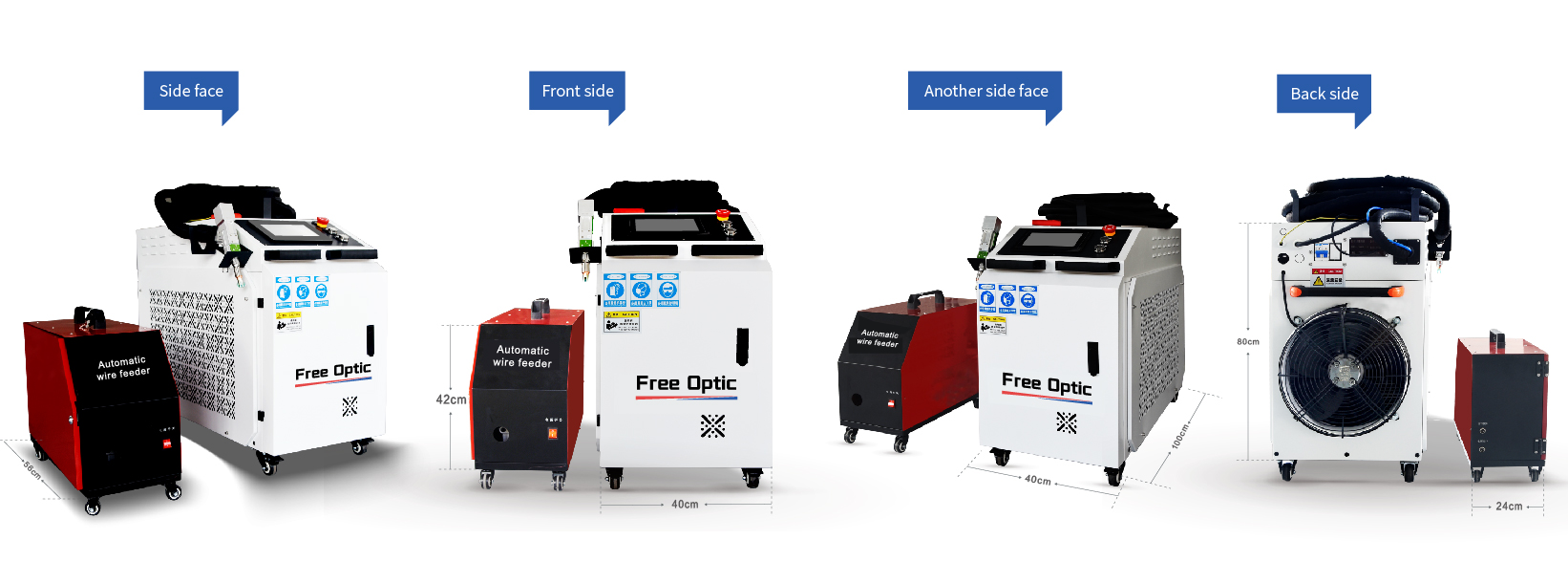

手持焊2.0_画板 1 副本 4

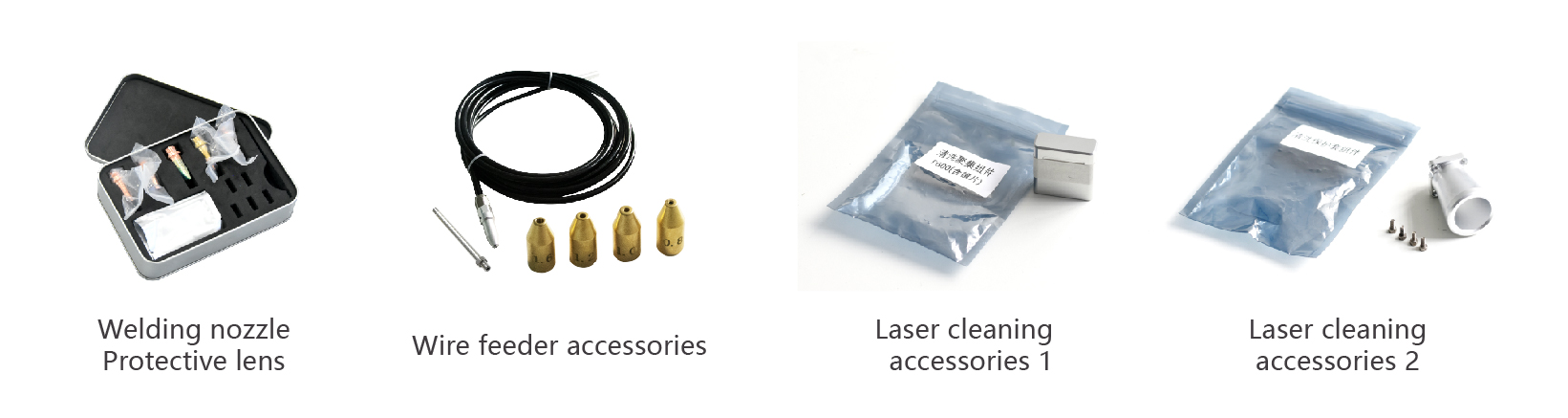

Configuration Options

手持焊2.0-06

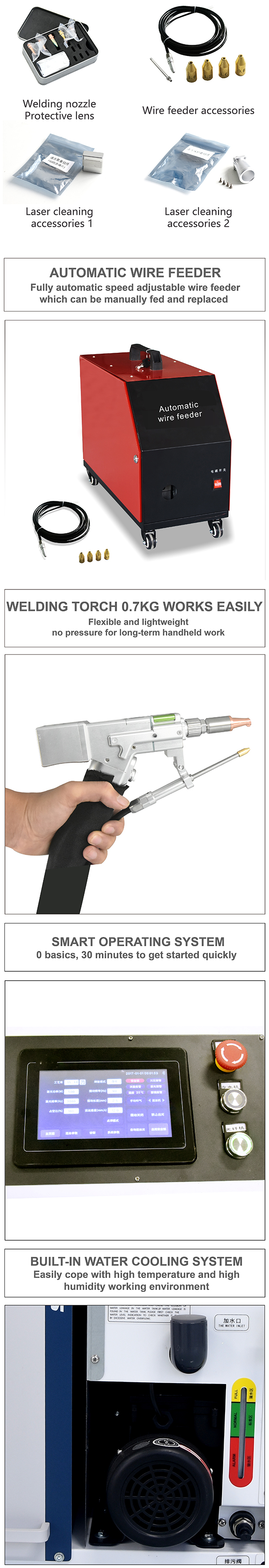

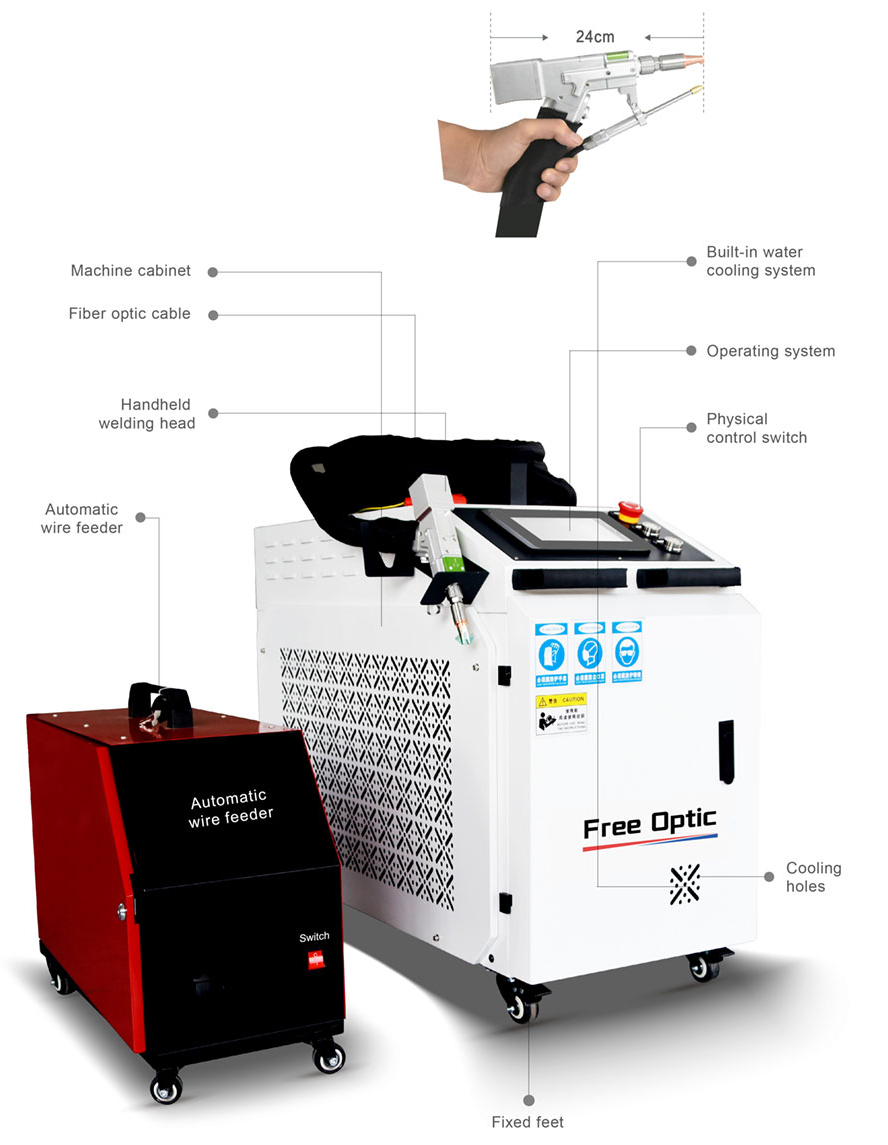

Machine Details Display

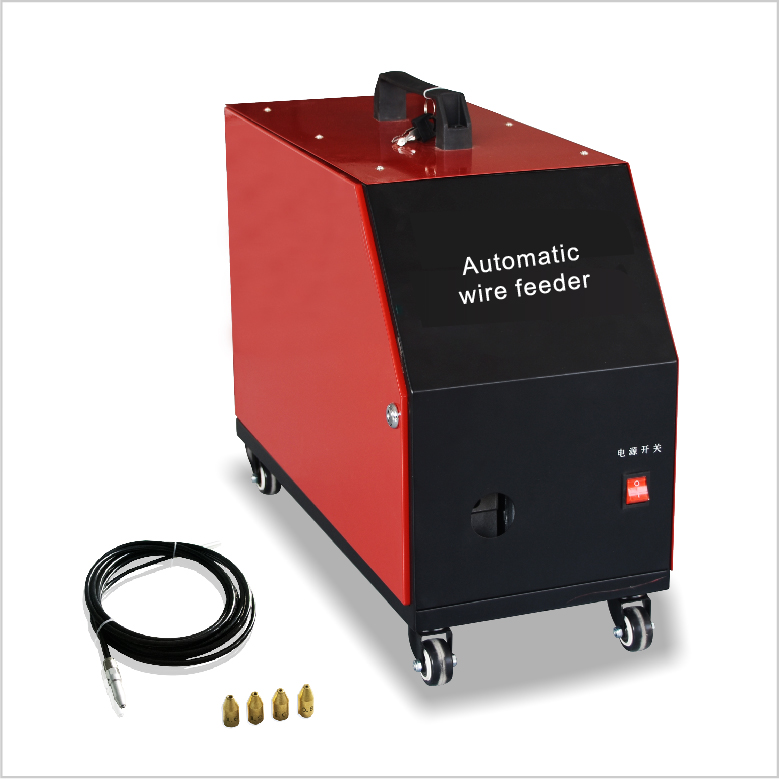

 Automatic wire feeder
Fully automatic speed adjustable wire feeder which can be manually fed and replaced

手持焊2.0_画板 1 副本 9
手持焊2.0_画板 1 副本 6

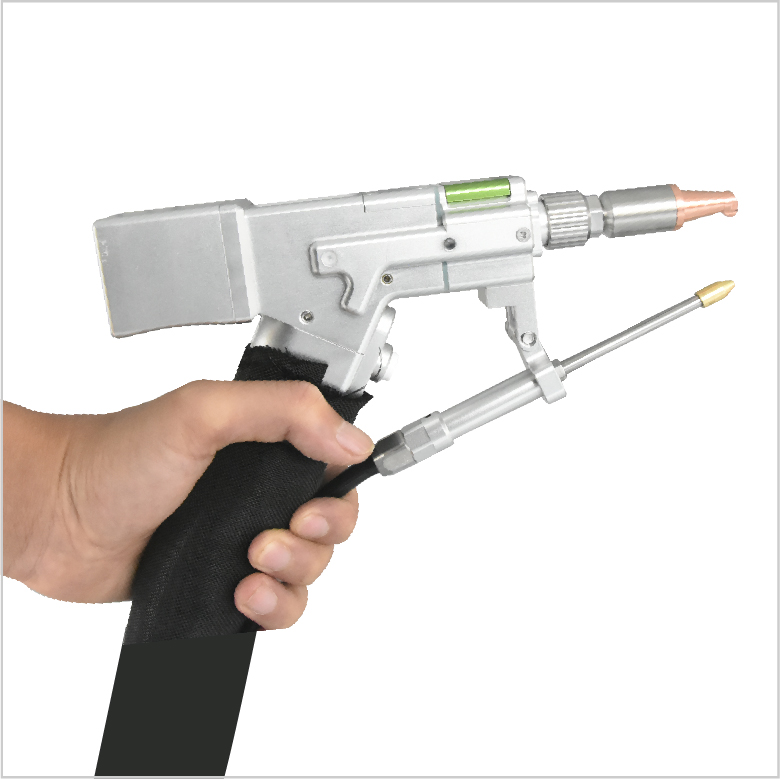

Welding torch 0.7KG works easily
Flexible and lightweight no pressure for long-term handheld work

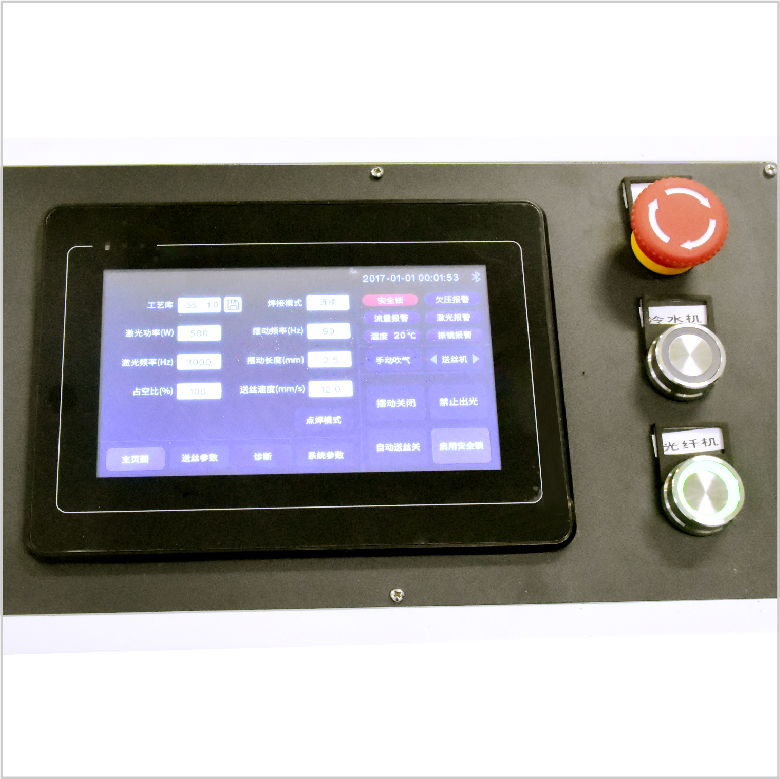

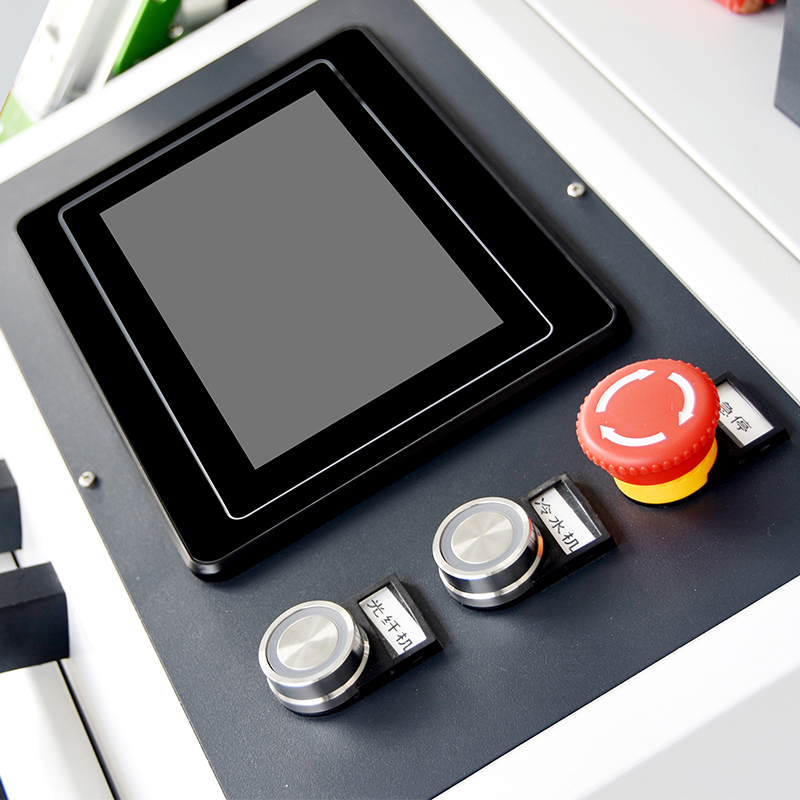

 Smart operating system
0 basics, 30 minutes to get started quickly

手持焊2.0_画板 1 副本 7
手持焊2.0_画板 1 副本 8

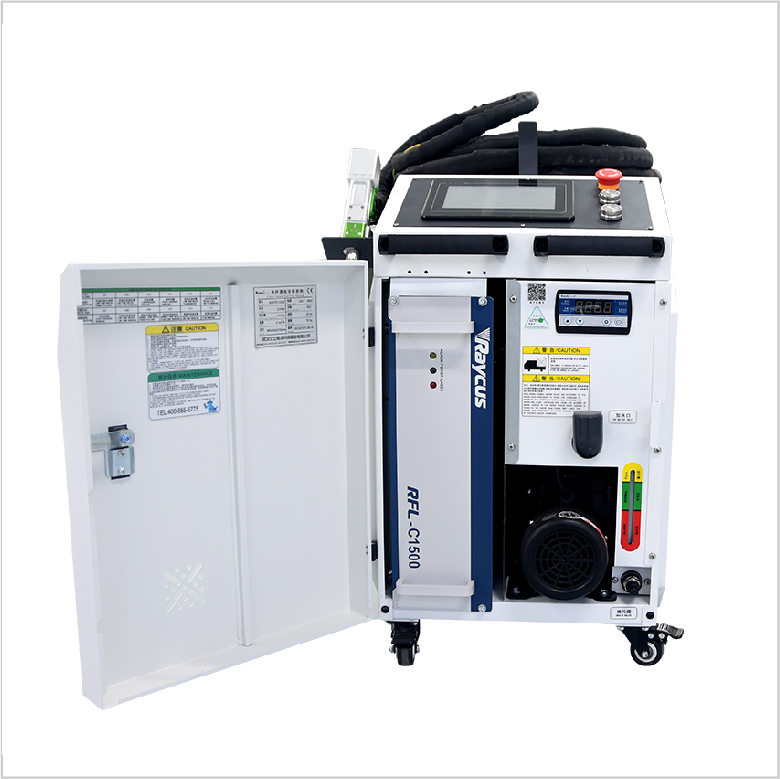

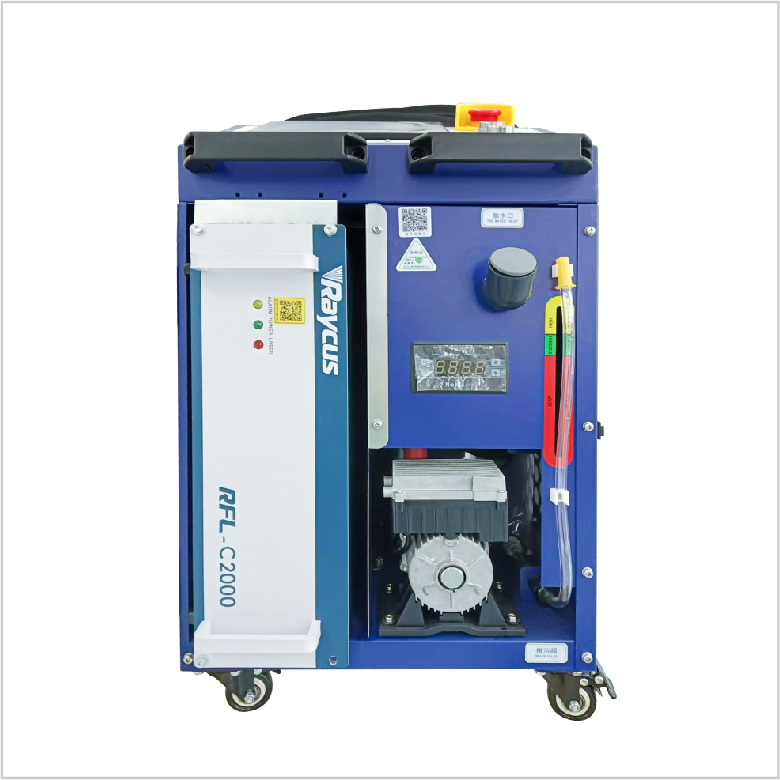

Built-in water cooling system
Easily cope with high temperature and high humidity working environment
