Best Price Wood Acrylic Plastic Foam Board 1390 1313 High Speed CO2 Laser Cutting And Engraving Machine

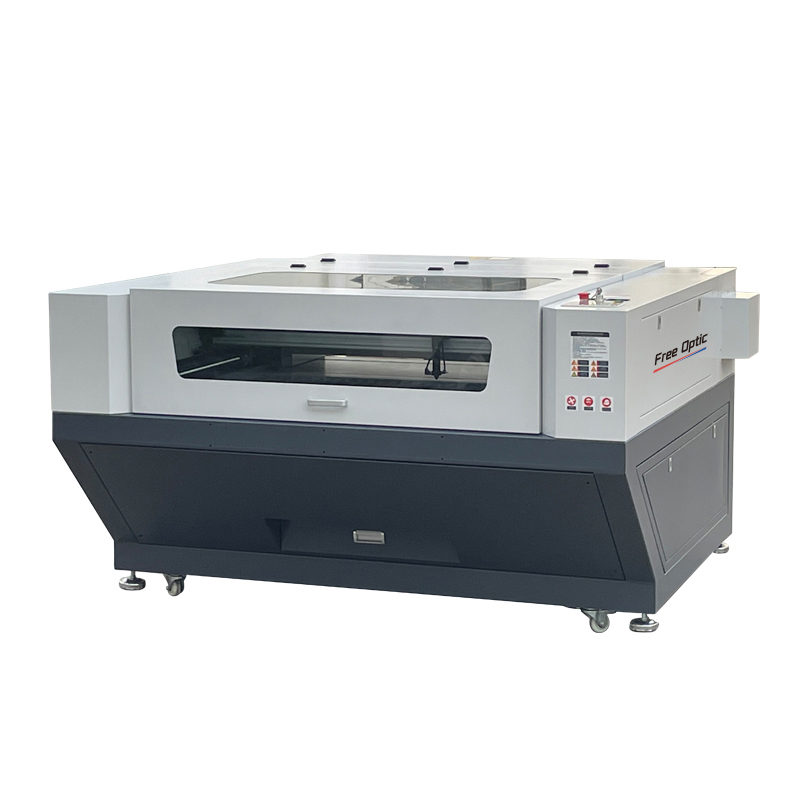

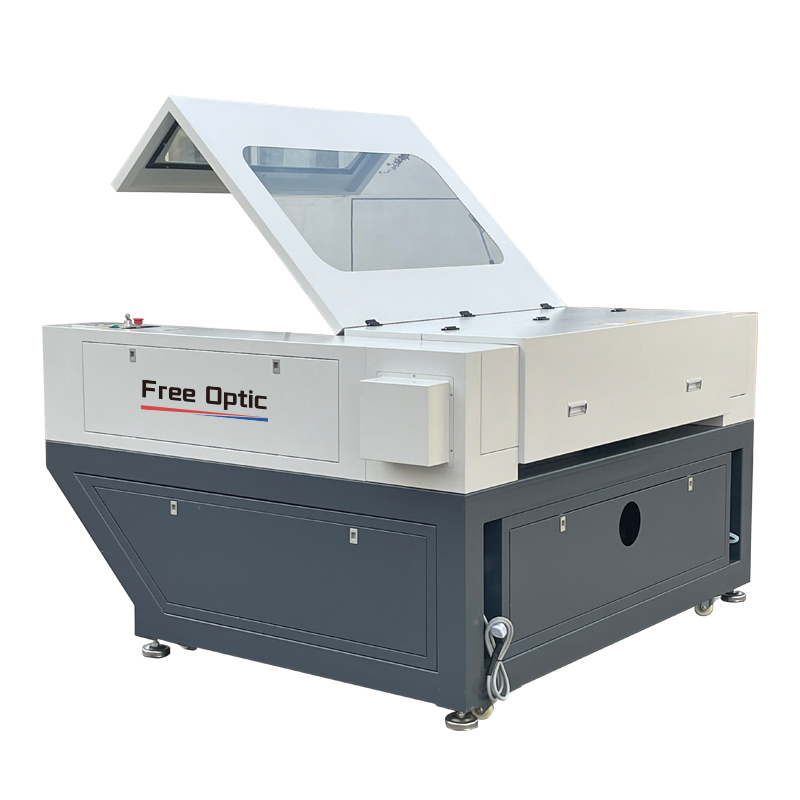

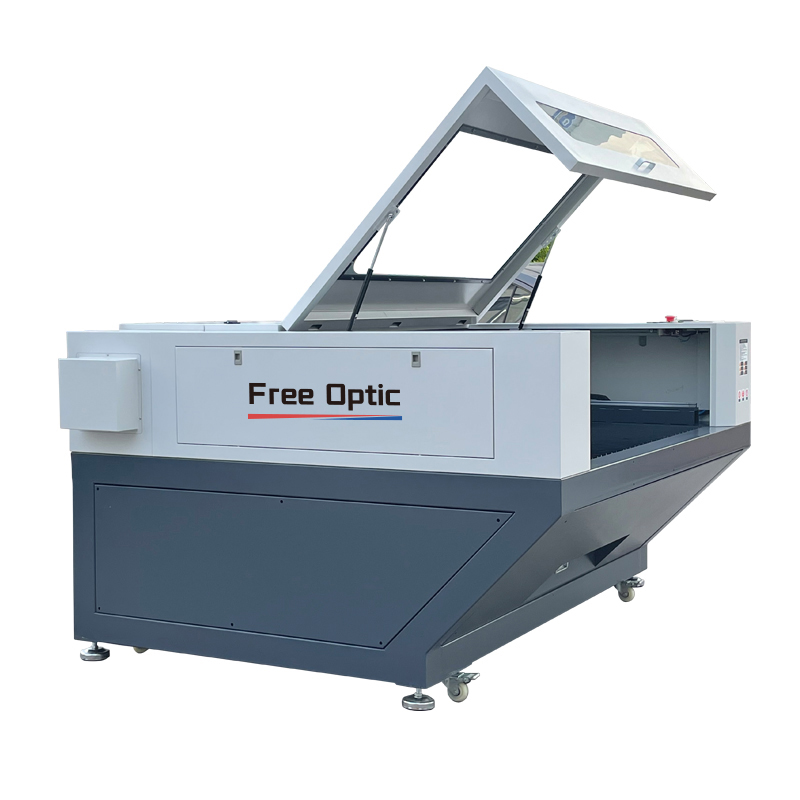

FP1390 1313 CO2 Laser Engraving Cutting Machine
XYZ axis all adopt ball screw drive
Machine tool level high precision,industrial reliability
Japanese brand servo motor,international first-line brand transmission accessories
Industrial design, developed by expert team
Meet the needs of whole plate precision cutting,optional CCD visual positioning fuction
FP1390 1313 CO2 Laser Engraving Cutting Machine
| 1 | Model | FP1390VS / 1313VS | |||||||||
| 2 | Laser type | Co2 Glass Inner Cavity Sealed Laser | |||||||||
| 3 | Laser power | 100W/130W/150W/180W/300W | |||||||||
| 4 | Max. processing range at one time | 1250*900mm / 1250 * 1250mm | |||||||||
| 5 | Max. running speed | 40000mm/min | |||||||||
| 6 | Max. working speed | 15000mm/min | |||||||||
| 7 | Machine Positioning accuracy | ±0.05mm | |||||||||
| 8 | Repetition accuracy | ±0.05mm | |||||||||
| 9 | Cutting material thickness | Acrylic 300W: 40mm/ 180W: 30mm | |||||||||
| 10 | Transmitting system | Guide screw transmission | |||||||||
| 11 | The thickest cutting depth | 20mm (acrylic as an example) | |||||||||
| 12 | power supply | AC220V±15% 50Hz/60Hz ( can customize 110V/60Hz) | |||||||||
| 13 | Total power | ≤3000W (300W laser source) | |||||||||
| 14 | Support software format | BMP PLT DST AI DXF DWG | |||||||||
| 15 | Working temperature | 0℃～45℃ | |||||||||
| 16 | Working environment humidity | 5%～95% | |||||||||
| 17 | Engraved countertops | Push-pull working platform honeycomb or blade two options (lifting platform) | |||||||||
| 18 | Software language | Simplified Chinese, Traditional Chinese, English | |||||||||
| 19 | Application | Cutting, engraving, punching, hollowing out, etc. | |||||||||
| 20 | Applicable material | Acrylic, stone, wool, cloth, paper, wood, bamboo, plastic, glass, film, ceramics and other non-metallic materials | |||||||||
| 21 | Machine size | 2100x1650x1200mm / 2100x1950x1200mm | |||||||||

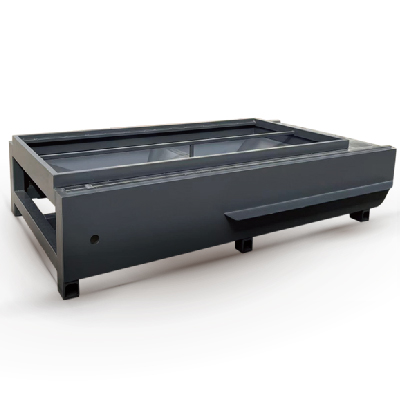

The platform blade supports the CNC gantry milling process

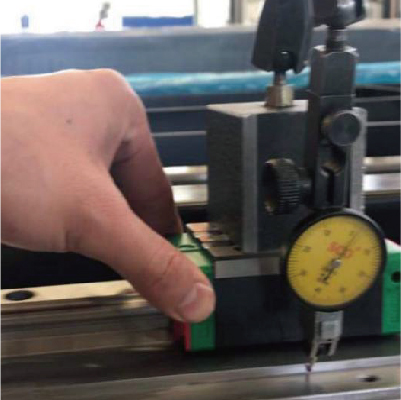

Precision meter making and assembly of machine tools

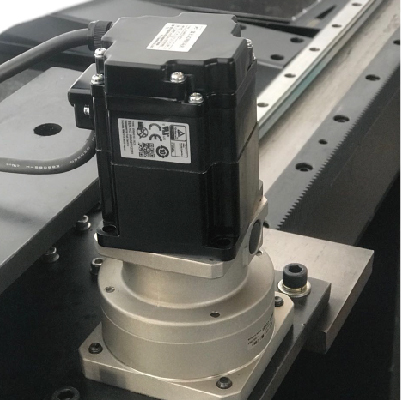

Industrial-grade servo gear motor to ensure processing speed

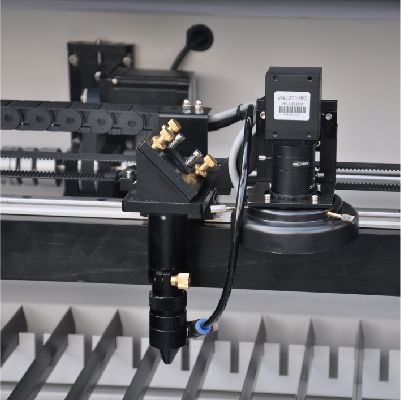

CCD positioning and edge cutting kinetic energy

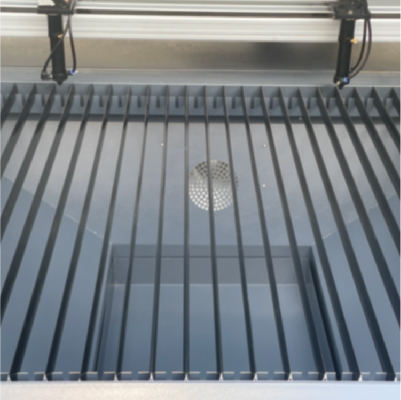

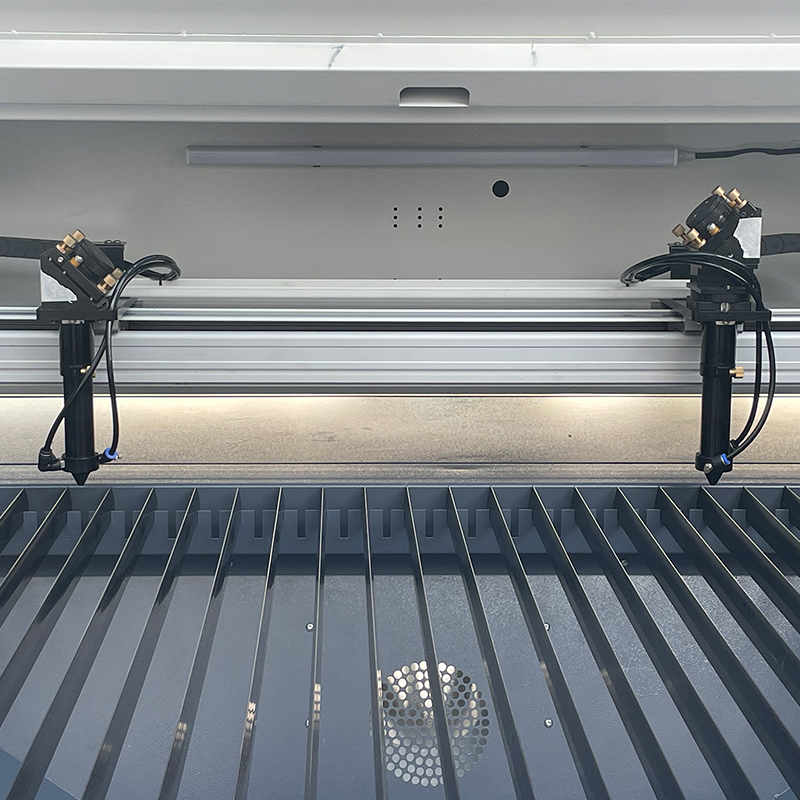

Cutting blade platform

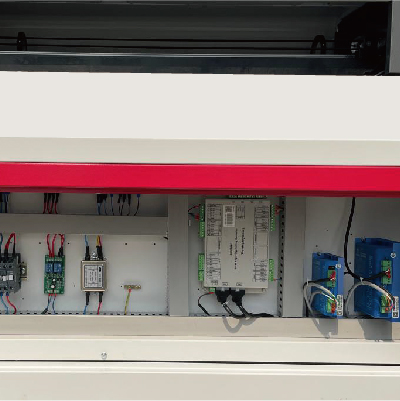

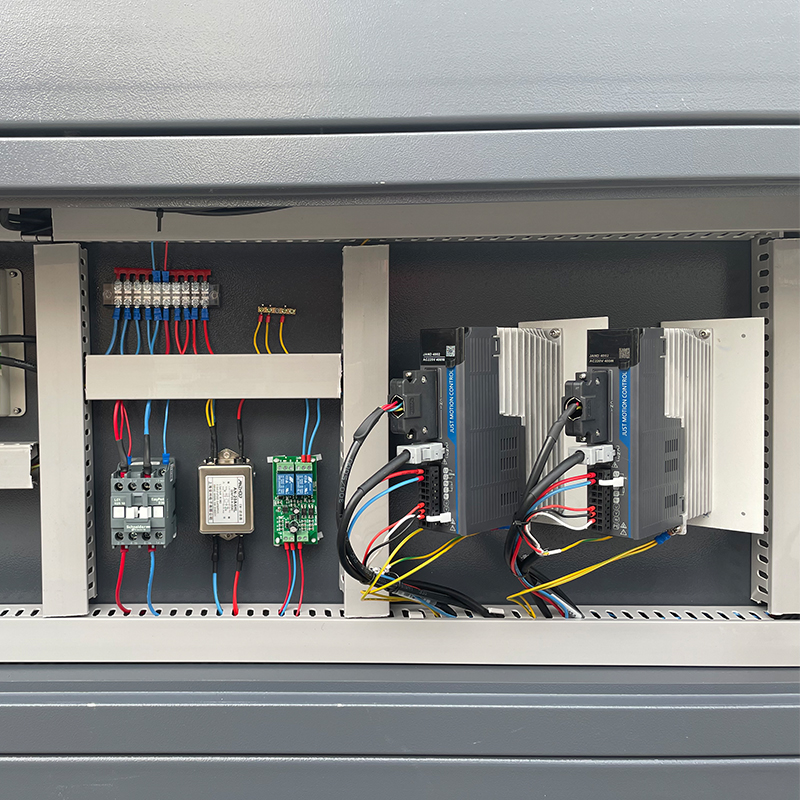

Ropean Industrial Standard Electrical Cabinet
