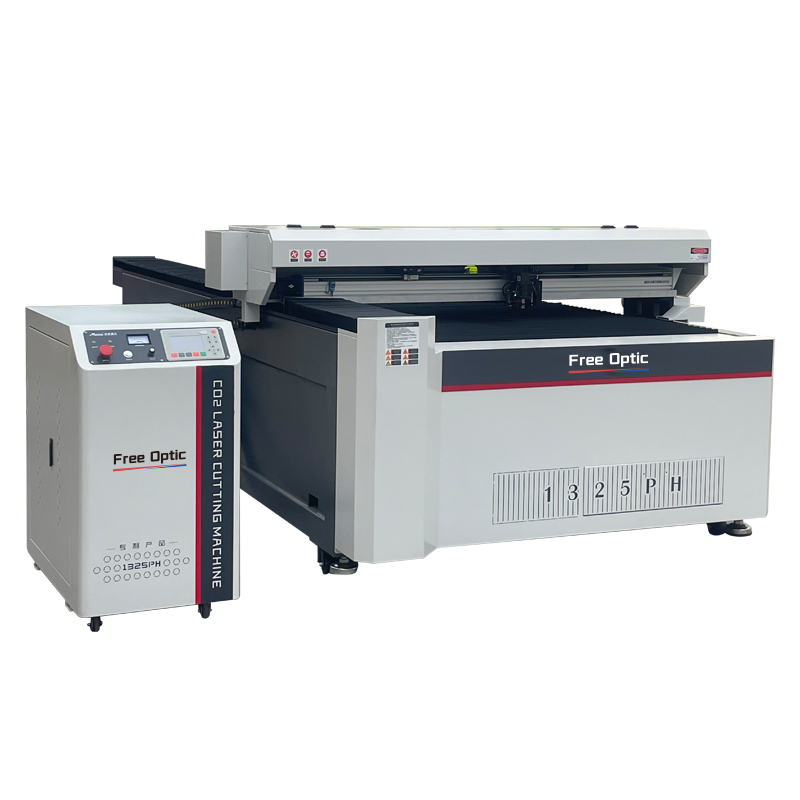

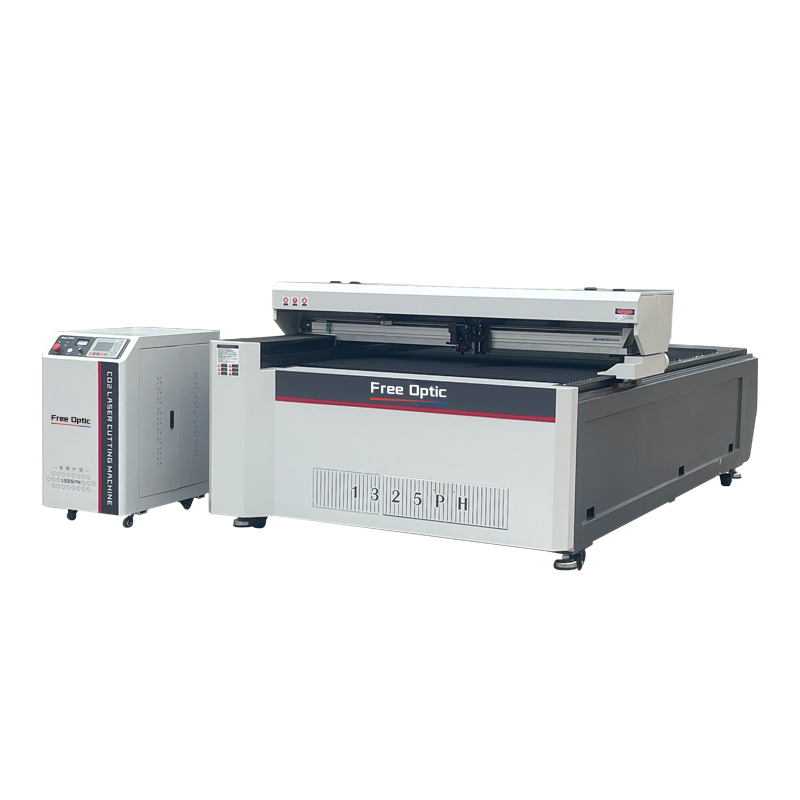

FP1325 PH High Efficiency 300W Acrylic/Rubber/Leather Engraver Wood Router CO2 Laser Cutting Engraving Machine
FP1325PH CO2 laser engraving cutting machine
1. High strength heavy steel frame welded structure, after aging and high temperature annealing treatment. Precision welding frame coupled with heavy frame ensure the high strength and high reliability of the bed.
2. The frame guide plane goes through CNC planer milling by fiber laser cutting machine standard to ensure the levelness and parallelism of the machine tool.
3. Excellent transmission components, Y axis double motor drive, ensure the high speed machining performance of the machine.
4. Optical mirror stand, more stable optical path.
5. The whole machine is equipped with leakage overload protector.
6. Excellent transmission components, precision screw drive, original screw nut, higher cutting accuracy, acrylic cutting has a smoother finish.
7. Optical mirror stand, more stable optical path.
8. Full edge search for 1CM square error is small.
9. Exclusive patent: double blowing and anti-fire function.
10. It is equipped with two sets of suction system: double fans down function system and auxiliary upper suction system, better smoke extraction effect.
11. The fan and air pump are automatically switched on and off to save electricity and less noisy.
FP1325 CO2 Laser Engraving Cutting Machine Specification Sheets
| 1 | Model | FP1325PH | |||||||||
| 2 | Laser type | Co2 Glass Inner Cavity Sealed Laser | |||||||||
| 3 | Laser power | 300W | |||||||||
| 4 | Max. processing range at one time | 1250*2450mm | |||||||||
| 5 | Max. Feeding width | 1350mm | |||||||||
| 6 | Weight | 950kgs | |||||||||
| 7 | Max. movement speed of machine | 60m/min | |||||||||
| 8 | Max working speed | 40m/min | |||||||||
| 9 | Speed control | 0-100% | |||||||||
| 10 | Laser energy control | 2 options: Software control／Manual adjustment | |||||||||
| 11 | Laser tube cooling | Forced water cooling（Industrial chiller） | |||||||||
| 12 | Machine resolution | 0.025mm | |||||||||
| 13 | Min. shaping character | Chinese 2mm , English 1mm | |||||||||
| 14 | Max. cutting deepth | 30mm (For Example: acrylic) | |||||||||
| 15 | setting positioning accuracy | ±0.1mm | |||||||||
| 16 | Power supply | AC220V±15% 50Hz | |||||||||
| 17 | Total power | ≤1500W | |||||||||
| 18 | File format supported | BMP PLT DST AI DXF DWG | |||||||||
| 19 | Driving | Servo motor drive XYZ screw drive |
|||||||||
High strength reinforced steel frame welding machine bed
The platform blade supports the CNC gantry milling process to ensure the levelness of different positions of the platform during processing, and the platform error of the whole board is less than 0.1mm, ensuring the cutting effect of the entire format.

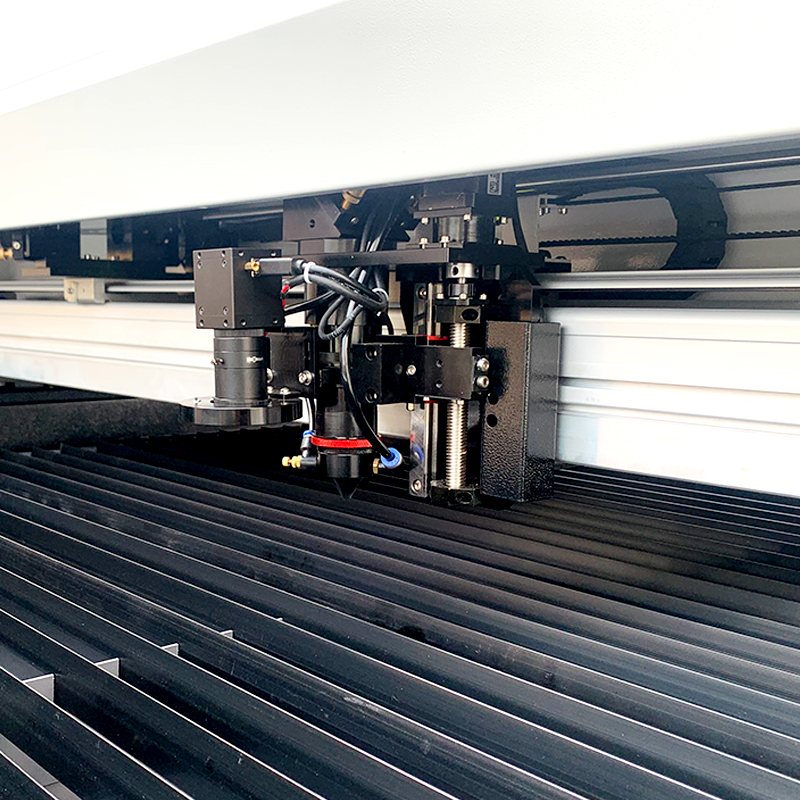

The X-axis screw drive assembly adopts a sealed industrial linear module.
Higher precision, longer life of dust-proof structure, less maintenance.
Use 300W high power laser tube
Double-tube folding balance cavity structure, laser tube light output adjustment head design better laser mode.

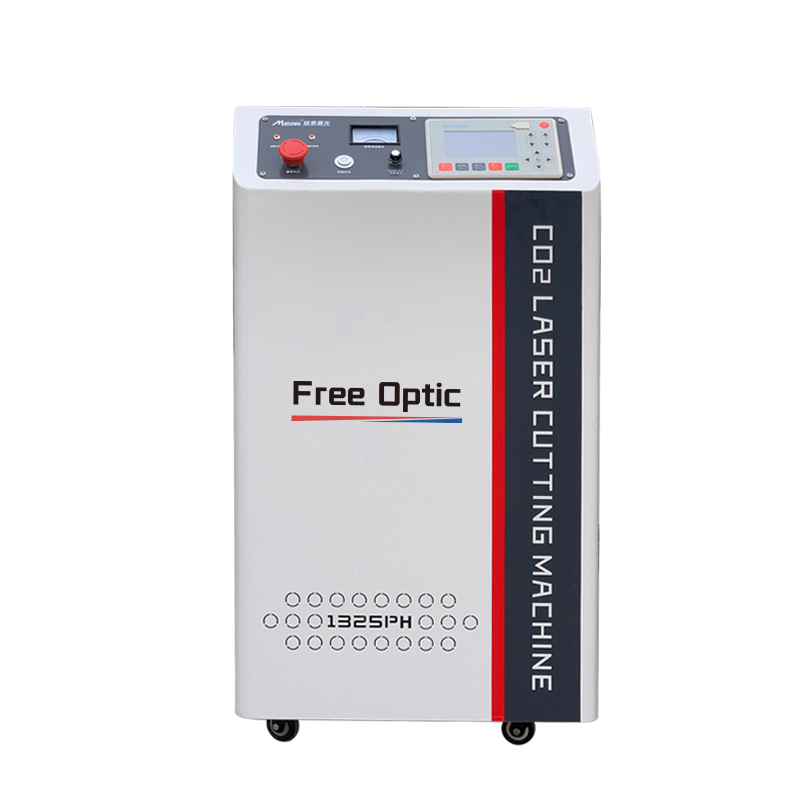

Marble stand, double high-voltage design, dual power supply synchronous power supply, long life and stability.
Unique laser tube mounting platform architecture designed for high power.
Support high-power and more reliable optical lenses.
The silicon-based gold-plated material of the reflector has a diameter of 30mm, and the industrial-grade precision optical bracket is equipped with a lens water cooling function.

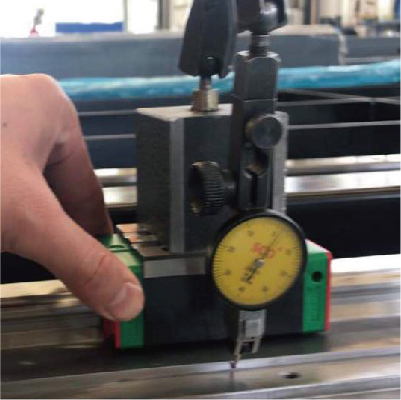

Precision assembly of machine tools, straightness and parallelism guarantee
Patented double blowing anti-fire function
Reduce the fire probability when cutting flammable materials such as acrylic, and solve the application pain points.

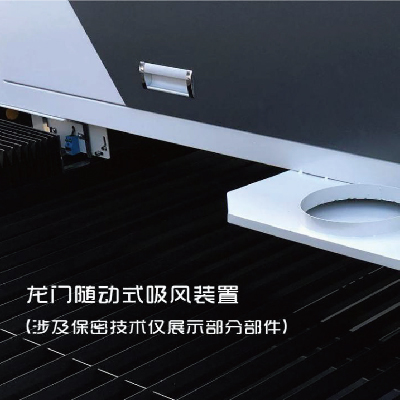

Gantry follow-up suction + double bottom suction = triple suction design.
Supporting three-dimensional suction device.
Better solve the exhaust and environmental problems of the open structure of the large-format cutting bed.
| Material | Material thickness | 300W Cutting parameter | 150-180W Cutting parameter | ||
| Cutting speed | Best cutting speed | Cutting Speed | |||
| Acrylic | 3mm | 80-100mm/s | 80mm/s | 40-60mm/s | |
| 5mm | 40-50 mm/s | 40mm/s | 20-28mm/s | ||
| 8mm | 20-25mm/s | 20mm/s | 10-15mm/s | ||
| 15mm | 8-12mm/s | 8mm/s | 2-4mm/s | ||
| 20mm | 5-7mm/s | 4mm/s | 1-1.5mm/s | ||
| 30mm | 2-3mm/s | 2mm/s | 0.6-1mm/s | ||
| Note: The above speed is for reference only. The fastest cutting speed will be different due to material difference, environment difference, voltage and other influences. The optimal cutting speed refers to the speed at which the new laser tube is taken as an example to ensure the cutting effect. |
|||||
