This series of laser marking machines has a very small focused spot and a small processing heat-affected zone. It will not produce thermal effects or cause problems such as material burning. It has fast marking speed, high efficiency, stable performance, small size and low power consumption. and other advantages, it is the first choice product for customers who have higher requirements for marking effects.
FP-5FE UV Laser Marking Machine Technical Parameters | |||||
1 | Model | FP-5FE | |||
2 | Beam quality | TEMoo,M2<1.3 | |||
3 | Average output power | 3W@30kHz >5W@30kHz >8W@40kHz >10W@40kHz >15W@40kHz | |||
4 | Marking speed | ≤12000mm/s | |||
5 | Wavelength | 355nm±1nm | |||
6 | aser repetition frequency range | 20khz-500khz (adjustable) | |||
7 | Single pusle energy | ~100uj@30kHz ~160uJ@30kHz ~200uJ@40kHz ~250uJ@40kHz ~300uJ@40kHz | |||
8 | Output spot diameter | 0.017mm | |||
9 | Marking range | 110x110mm (standard and optional) | |||
10 | Repeatability | 0.01mm | |||
11 | Pulse width(ns) | ~15ns@30kHz/40kHz | |||
12 | Power adjustment range | 10%-100% | |||
13 | Total Power | ≤500W | |||
14 | Cooling system | Water cooling | |||
15 | Pulse stability | <3% rms | |||
16 | Equipment operating temperature | 0℃-40℃ | |||
17 | Power requirements | AC220V土10%,50HZ/60HZ | |||
18 | File Format | BMP/DXF/PLT/JPEG/HPGL |
Wide range of applications
Can mark all metals, rigid plastics, various coated products. It can mark graphics, QR codes, serial number marking, support all fonts, support network communication and secondary development of some special functions.
Permanent marker
Laser marking is a marking method that uses a high-energy-density laser to locally irradiate the workpiece to vaporize the surface material or undergo a chemical reaction of color change, thereby leaving a permanent mark.
Marking speed is fast
Using high-speed digital galvanometer, it can carry out assembly line flight marking.
Maintenance free
Because the equipment uses advanced fiber lasers, it has high photoelectric conversion efficiency, is easy to use, does not require optical adjustment or maintenance, has a compact structure, high system integration, and fewer failures.
Easy Operation
With the basics of computer use, you can start to operate the machine within 30 minutes of training.e use.
Easy maintenance
The whole machine adopts a modular assembly method, and each component can be disassembled independently, which is convenient for fault diagnosis and later maintenance.
Low failure rate
Each component adopts the domestic first-line brand to ensure the stability of the product, and the 48-hour aging test method can be packaged and shipped before leaving the factory.
Red light positioning
Using red light positioning system, convenient positioning and high positioning accuracy.
Extensions
Can be extended with additional functions. Such as circular marking, X Y electric workbench, automatic feeding flight marking, etc.
Computer program
Marking is carried out automatically, marking English, numbers, Chinese characters, graphics, and the printing content can be changed arbitrarily.

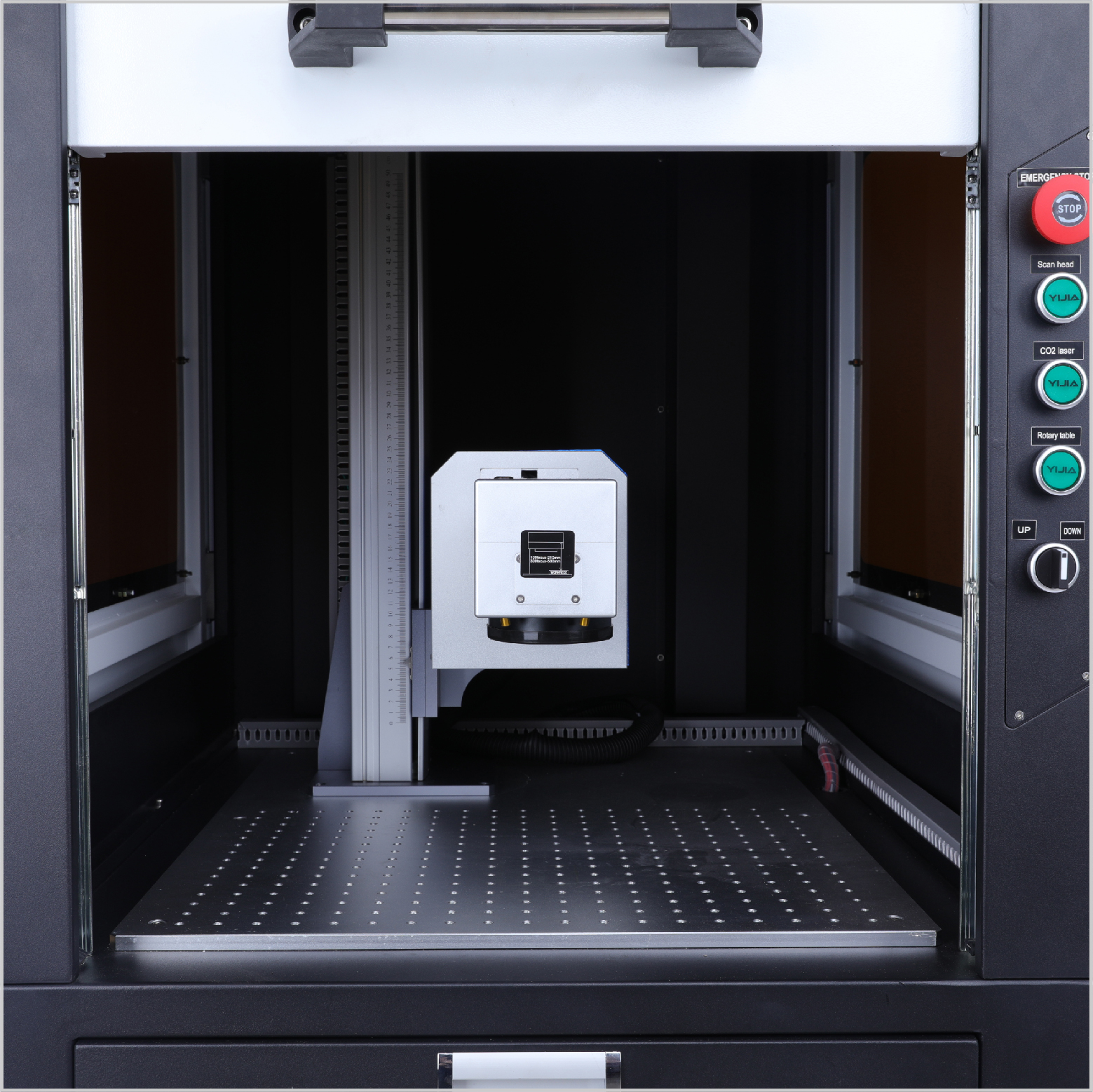

Built-in enough operating space for marking work, making the working environment safer and more environmentally friendly.
We use China made first-class brand UV laser source, which have stable performance and long service life. The water-cooled cooling system makes the machine performance more stable and the beam quality better!

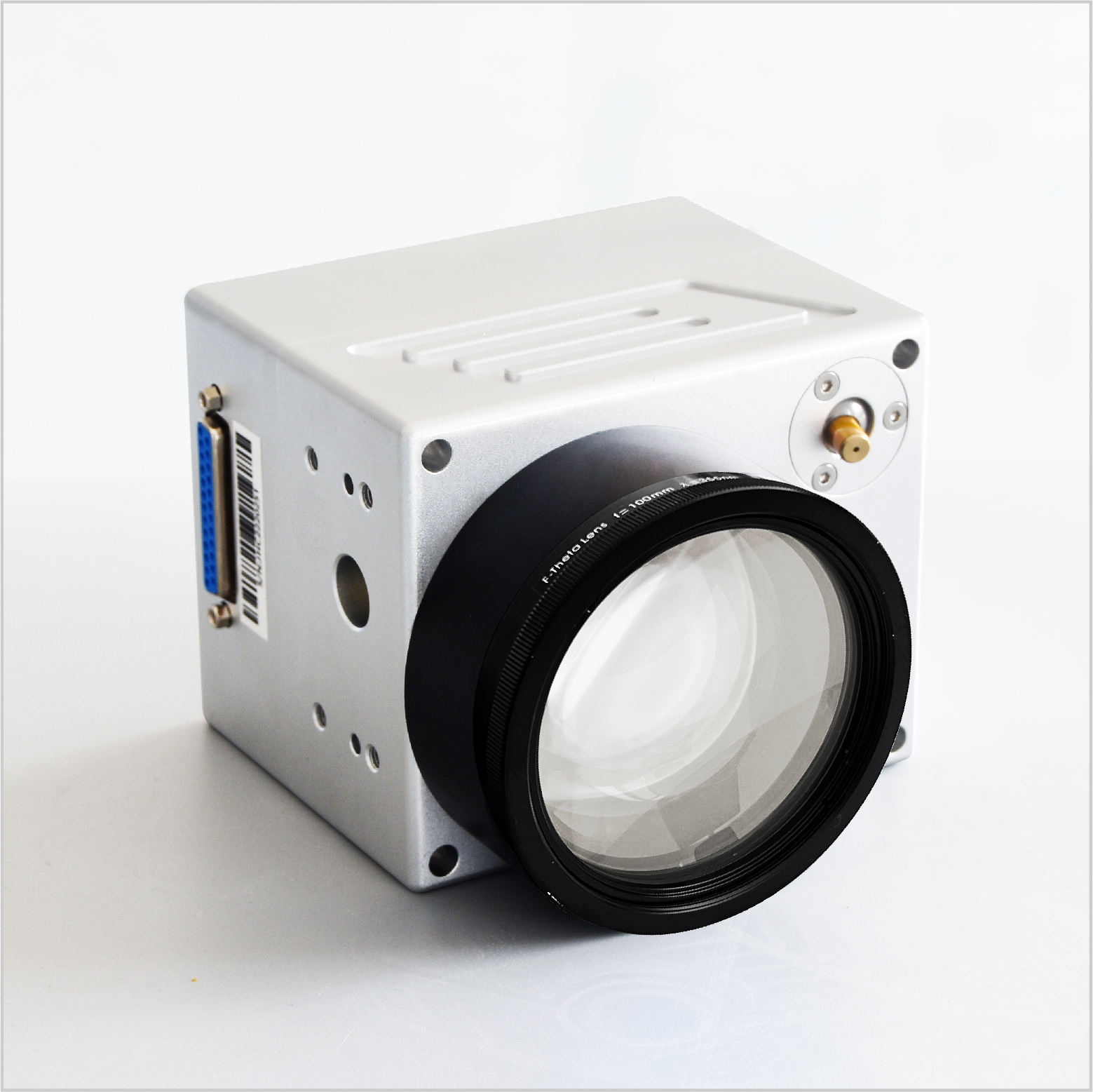

High-speed digital galvanometer with dual red lights, making finding focus easier and marking speed more efficient and precise
High Transparency F-theta Lens
The light spot is finer, the anti-dirty coating is wear-resistant and anti-corrosion, and the focus is clear
Anodized aluminum working table
Full anodized aluminum technology, fine polishing, stable work, craftmanufacturing

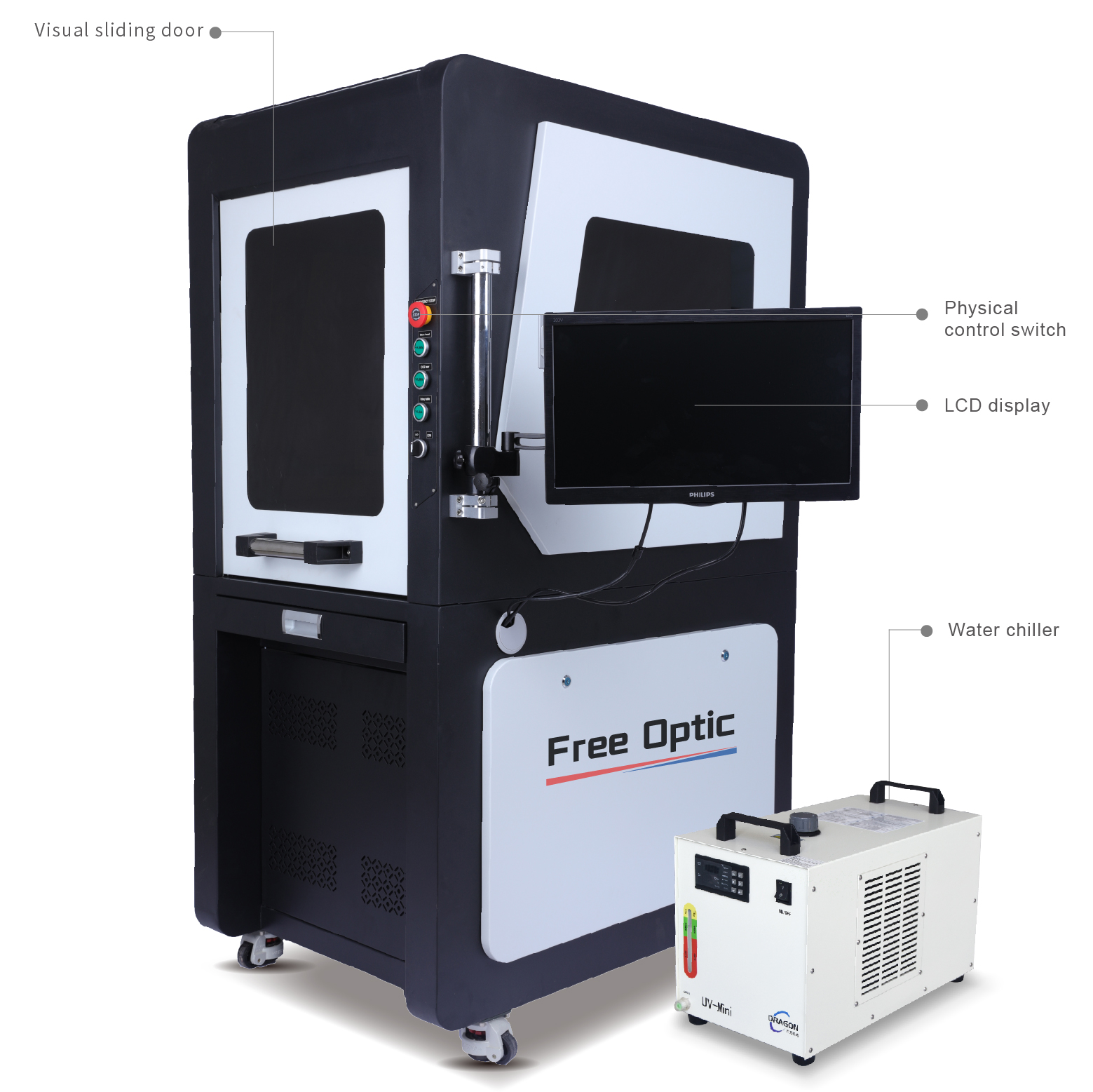

Equipped with a professional industrial-grade water cooler to reasonably control the working temperature
Modular chassis design
Easily troubleshoot and resolve equipment failures
