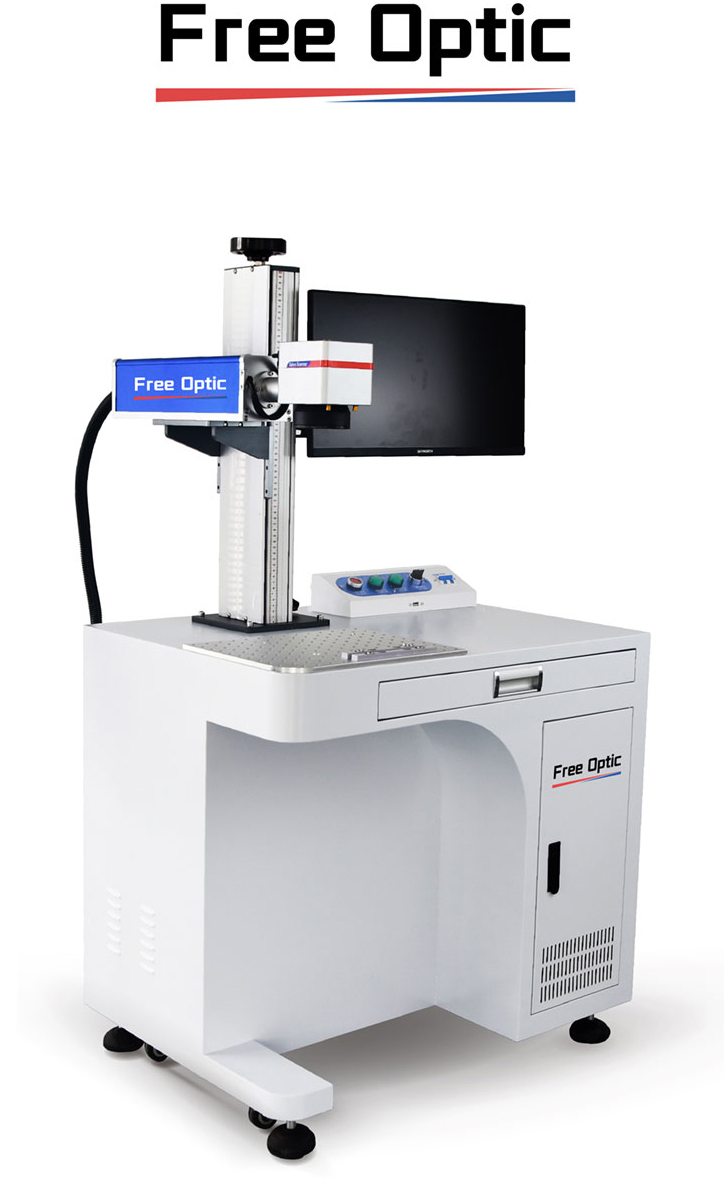

Laser Marking Engraving Machine 20W 30W 50W 100W Metal Steel 2.5d 3d Marking Engraving Fiber Laser Marking Engraving Machine

Short Description:

The 2.5D deep carving control system software has a simple operation interface and smooth operation, making it easy for users to learn and understand. The system is optimized for large-size files, and can support the same STL to switch between negative and positive carvings. It has a variety of filling methods, and can also customize filling methods for users to choose. The 2.5D deep carving control system can reduce the production cost of the equipment.


Product Detail

Product Tags

Product Advantages

2.5D engraving system, using the new version of Ezcad3 software and DLC2-M4-2D control card, combined with 2D digital scanning galvanometer, electric (stepping) lifting, compared with traditional methods, laser metal deep engraving has no pollution, high precision, and engraving content Flexible, can meet the advantages of complex engraving process, etc., applied to the laser deep engraving of molds, signs, hardware accessories and other products.

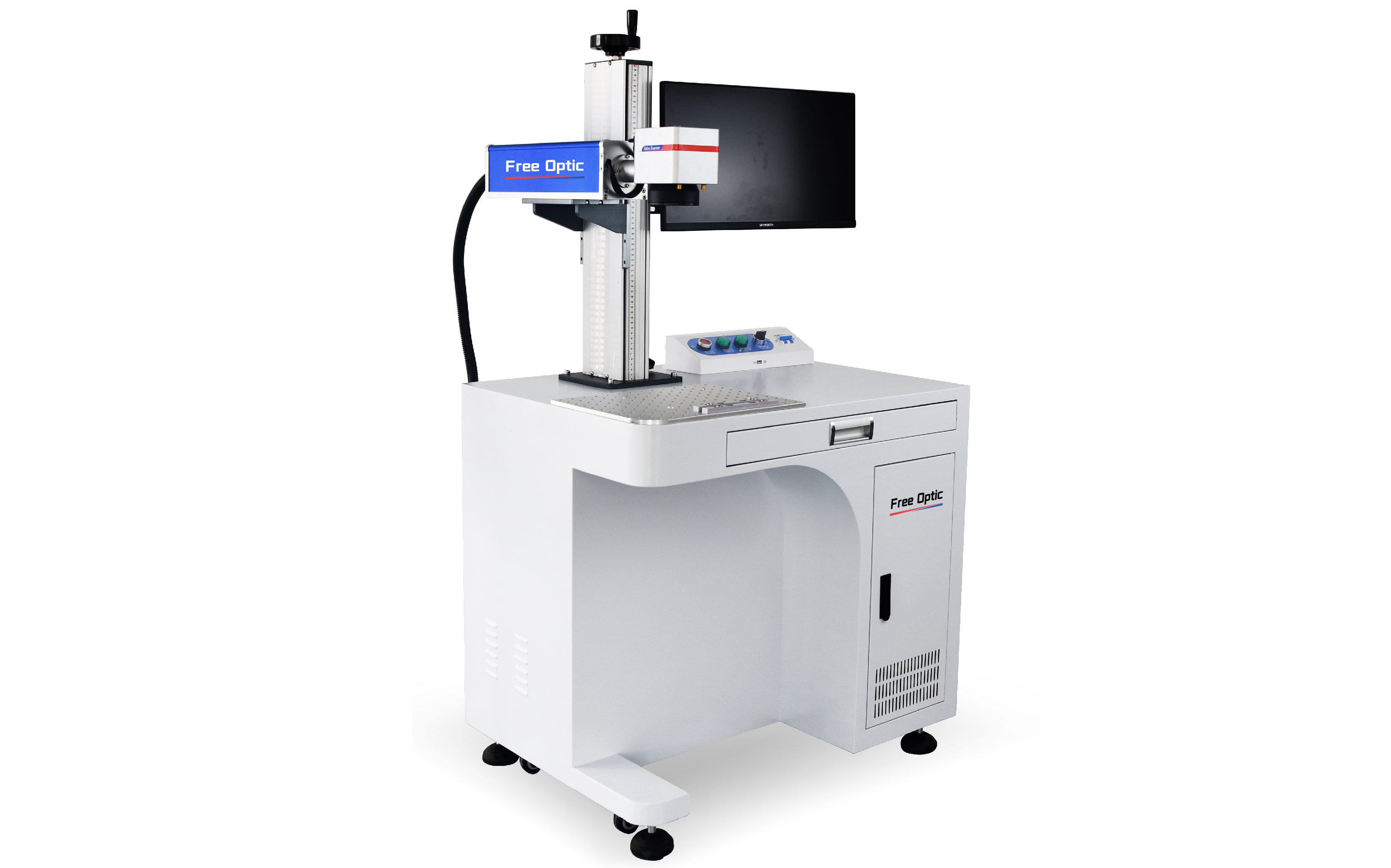

2.5D标准台式2023_画板 1

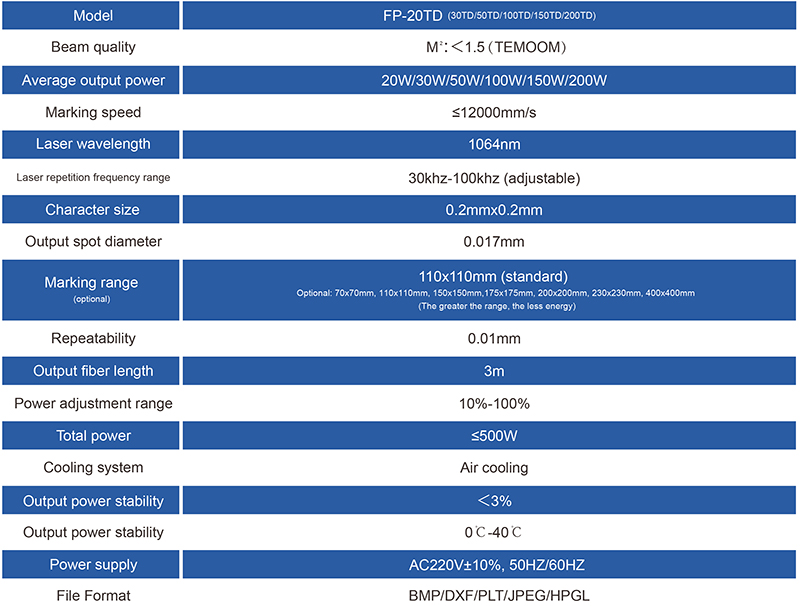

Technical Parameters

FP-50TD Fiber Laser Marking Machine Technical Parameters
1 Model FP-50TD
2 Beam quality M': < 1.5 (TE MOO M)
3 Average output power 20W/30W/50W/100W/150W/200W
4 Marking speed  ≥12000mm/s
5 Laser wavelength 1064nm
6 Laser repetition frequency range 30khz-100khz (adjustable)
7 Character size 0.2mmx0.2mm
8 Output spot diameter 0.017mm
9 Marking range 110x110mm (standard)
Optional: 150x150mm, 175x175mm, 200x200mm, 230x230mm
10 Repeatability 0.01mm
11 Output fiber length 3M
12 Power adjustment range 10-100%
13 Total power  ≤500W
14 Cooling system Air cooling
15 Output power stability 0-4℃
16 Power supply AC220V±10%, 50hz/60hz
17 File format BMP/DXF/PLT/JPEG/HPGL

Scope Of Application

Application scope of 2.5D fiber laser
marking materials

2.5D标准台式2023_画板 1 副本

Product Characteristics

main

Wide Range Of Applications
Can mark all metals, rigid plastics, various coated products. It can mark graphics, QR codes, serial number marking, support all fonts, support network communication and secondary development of some special functions.

Permanent Marker
Laser marking is a marking method that uses a high-energy-density laser to locally irradiate the workpiece to vaporize the surface material or undergo a chemical reaction of color change, thereby leaving a permanent mark.

Marking speed is fast
Using high-speed digital galvanometer, it can carry out assembly line flight marking.

Maintenance free
Because the equipment uses advanced fiber lasers, it has high photoelectric conversion efficiency, is easy to use, does not require optical adjustment or maintenance, has a compact structure, high system integration, and fewer failures.

Product Detail

Easy Operation
With the basics of computer use, you can start to operate the machine within 30 minutes of training.

Easy maintenance
The whole machine adopts a modular assembly method, and each component can be disassembled independently, which is convenient for fault diagnosis and later maintenance.

Low failure rate
Each component adopts the domestic first-line brand to ensure the stability of the product, and the 48-hour aging test method can be packaged and shipped before leaving the factory.

Low environmental requirements
0.5M², the whole machine is small and compact, and can adapt to harsh processing environments.

No consumables required
No need for any consumables, non-toxic, no environmental pollution, high environmental protection

Red light positioning
Using red light positioning system, convenient positioning and high positioning accuracy.

Extensions
Can be extended with additional functions. Such as circular marking, X Y electric workbench, automatic feeding flight marking, etc.

Computer program
Marking is carried out automatically, marking English, numbers, Chinese characters, graphics, and the printing content can be changed arbitrarily.

2.5D标准台式2023_画板 1 副本 3

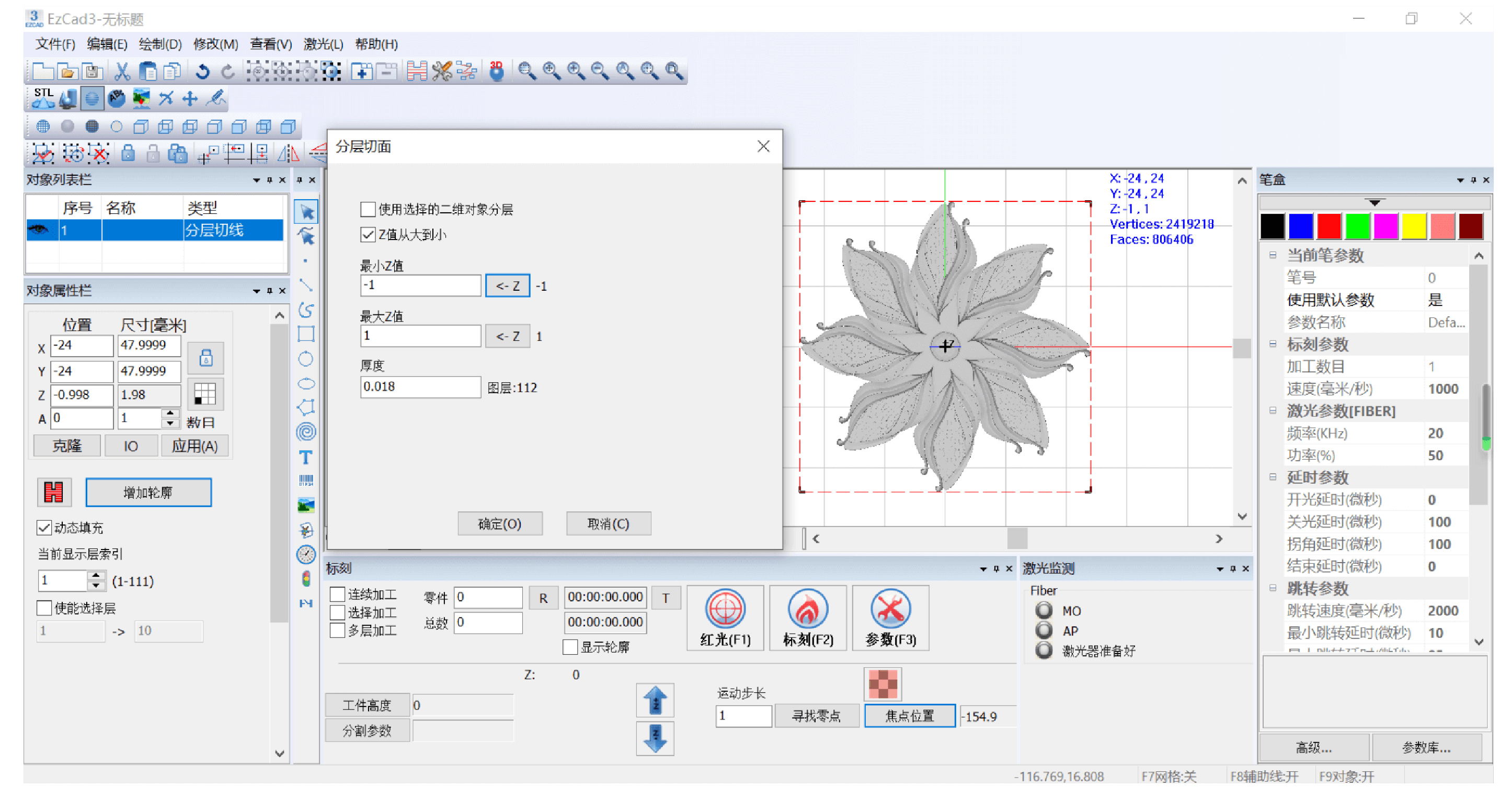

Software Interface

2.5D标准台式2023_画板 1 副本 5

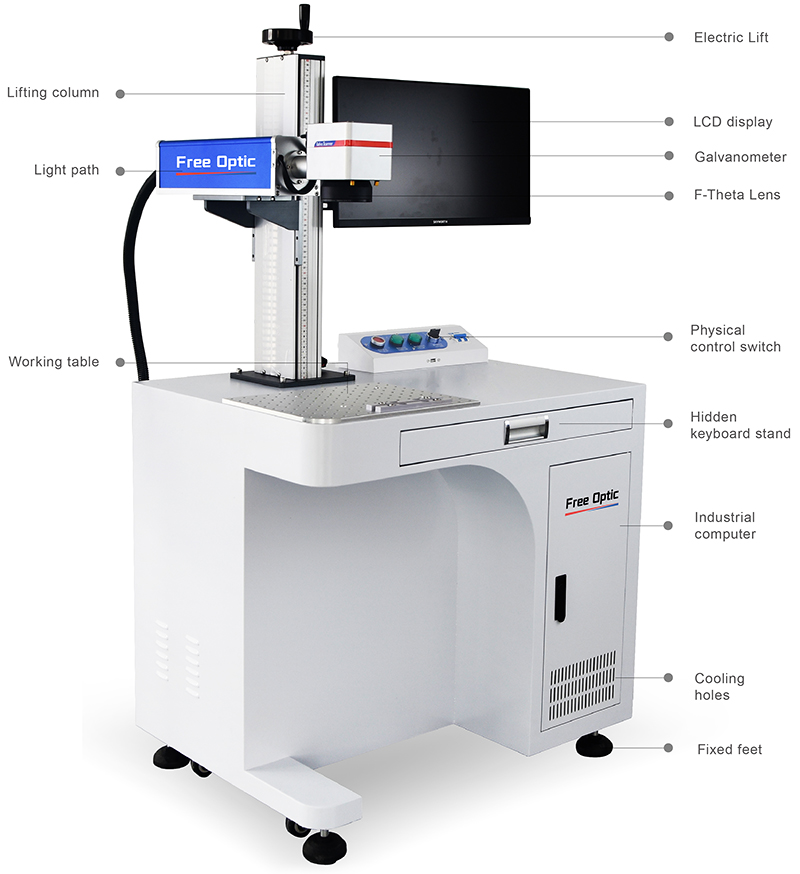

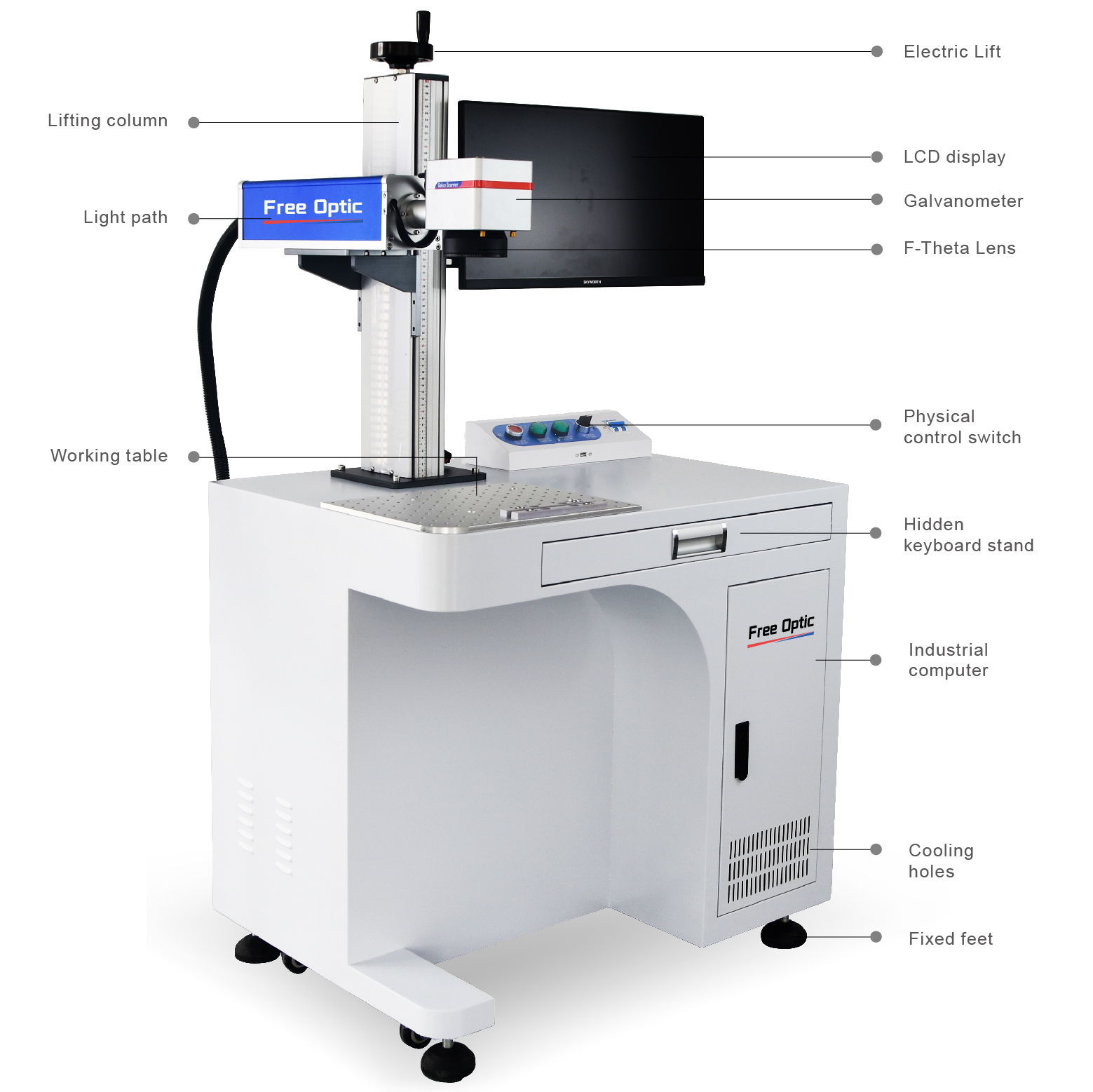

System Structure

2.5D标准台式2023_画板 1 副本 11

Configuration Options

手持台式2023_画板 1 副本 5

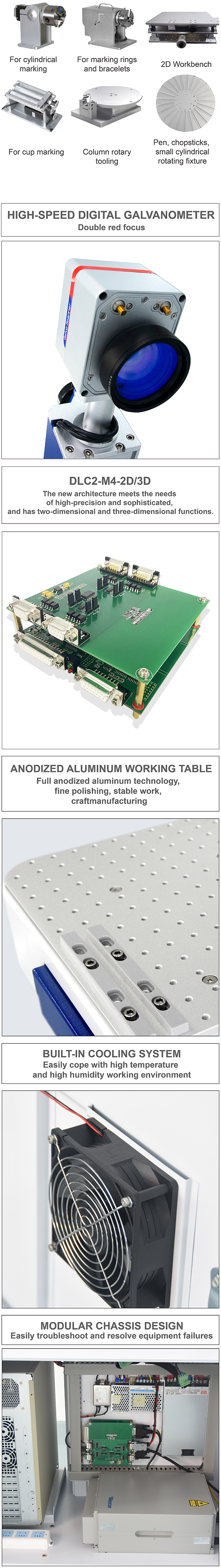

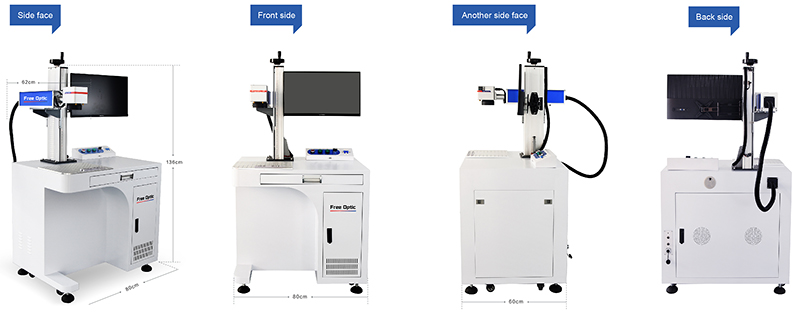

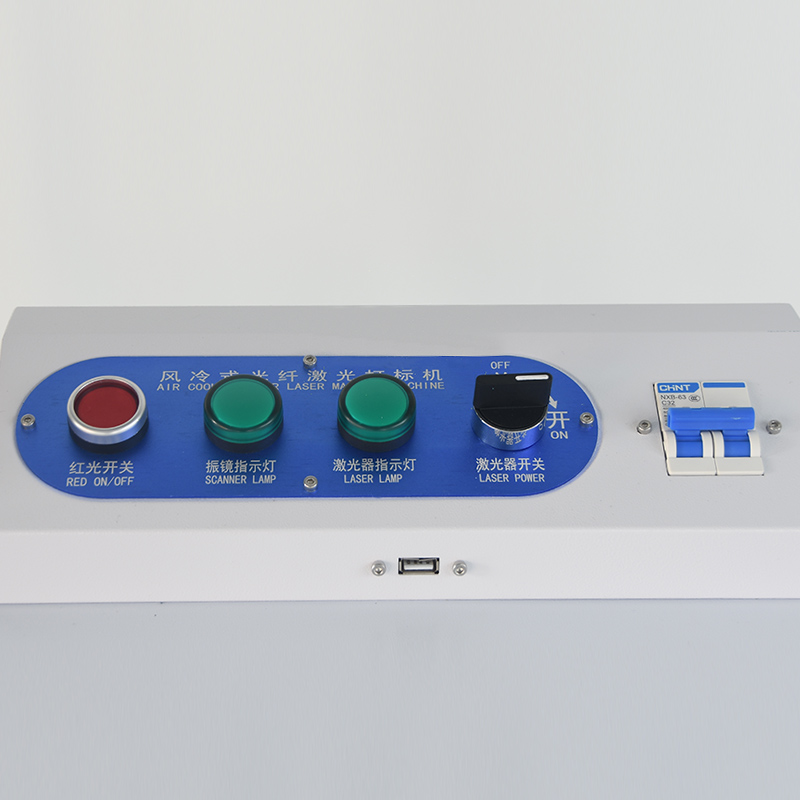

Machine Details Display

2.5D标准台式2023_画板 1 副本 6

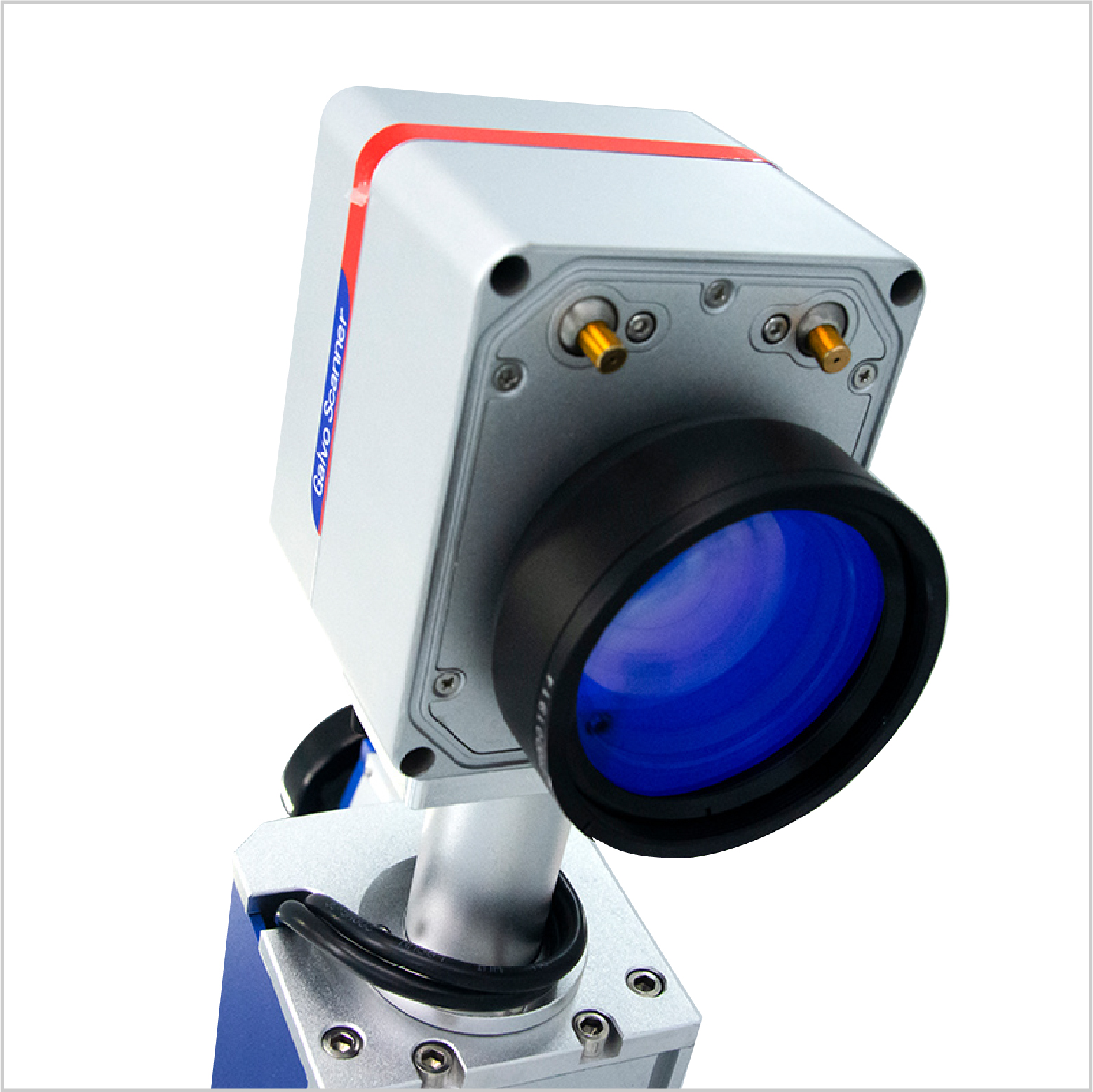

High-speed digital galvanometer
Double red focus

DLC2-M4-2D/3D
The new architecture meets the needs of high-precision and sophisticated, and has two-dimensional and three-dimensional functions.

2.5D标准台式2023_画板 1 副本 7
2.5D标准台式2023_画板 1 副本 8

Anodized aluminum working table
Full anodized aluminum technology, fine polishing, stable work, craftmanufacturing

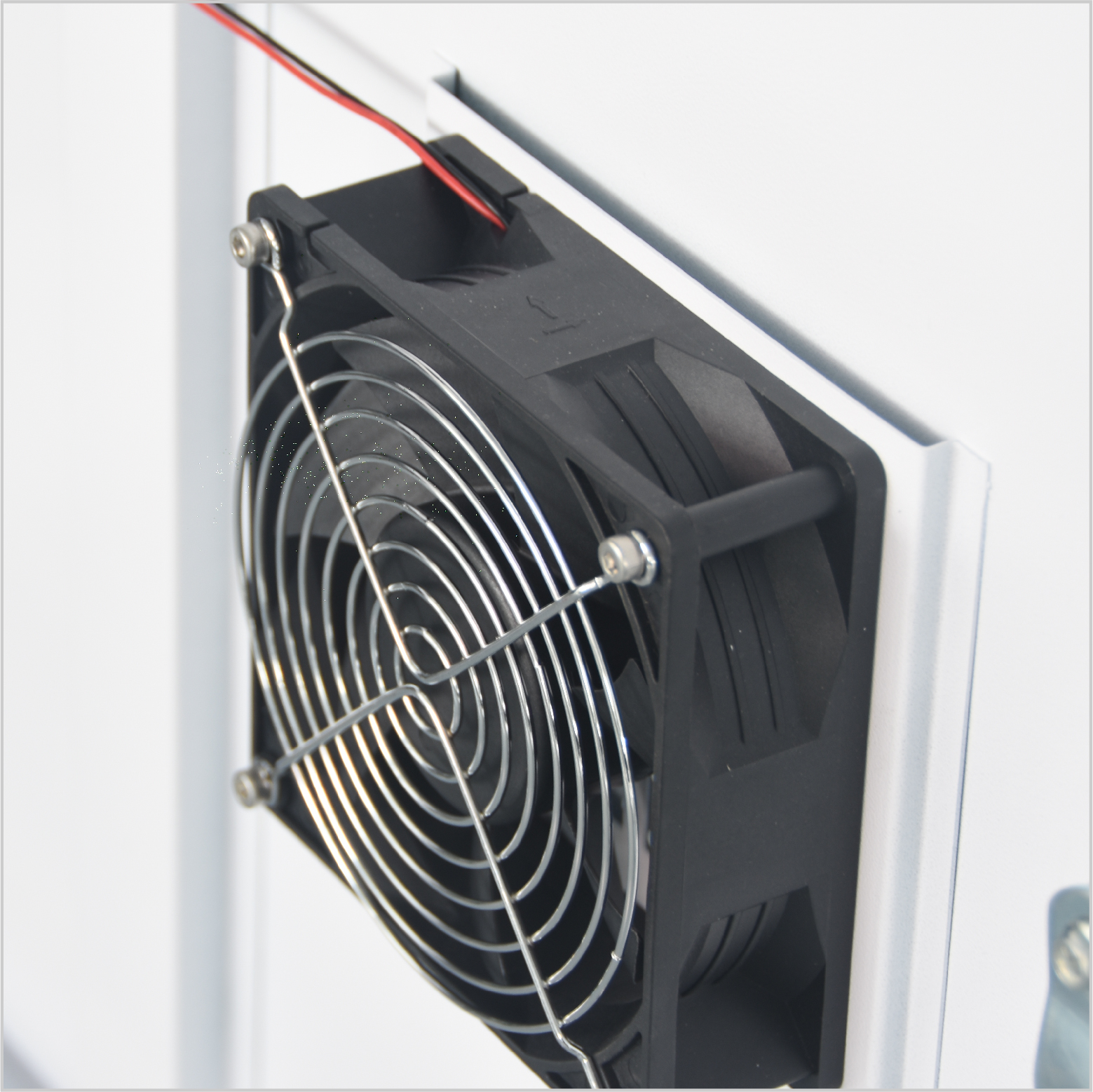

Built-in cooling system
Easily cope with high temperature and high humidity working environment

2.5D标准台式2023_画板 1 副本 9
2.5D标准台式2023_画板 1 副本 10

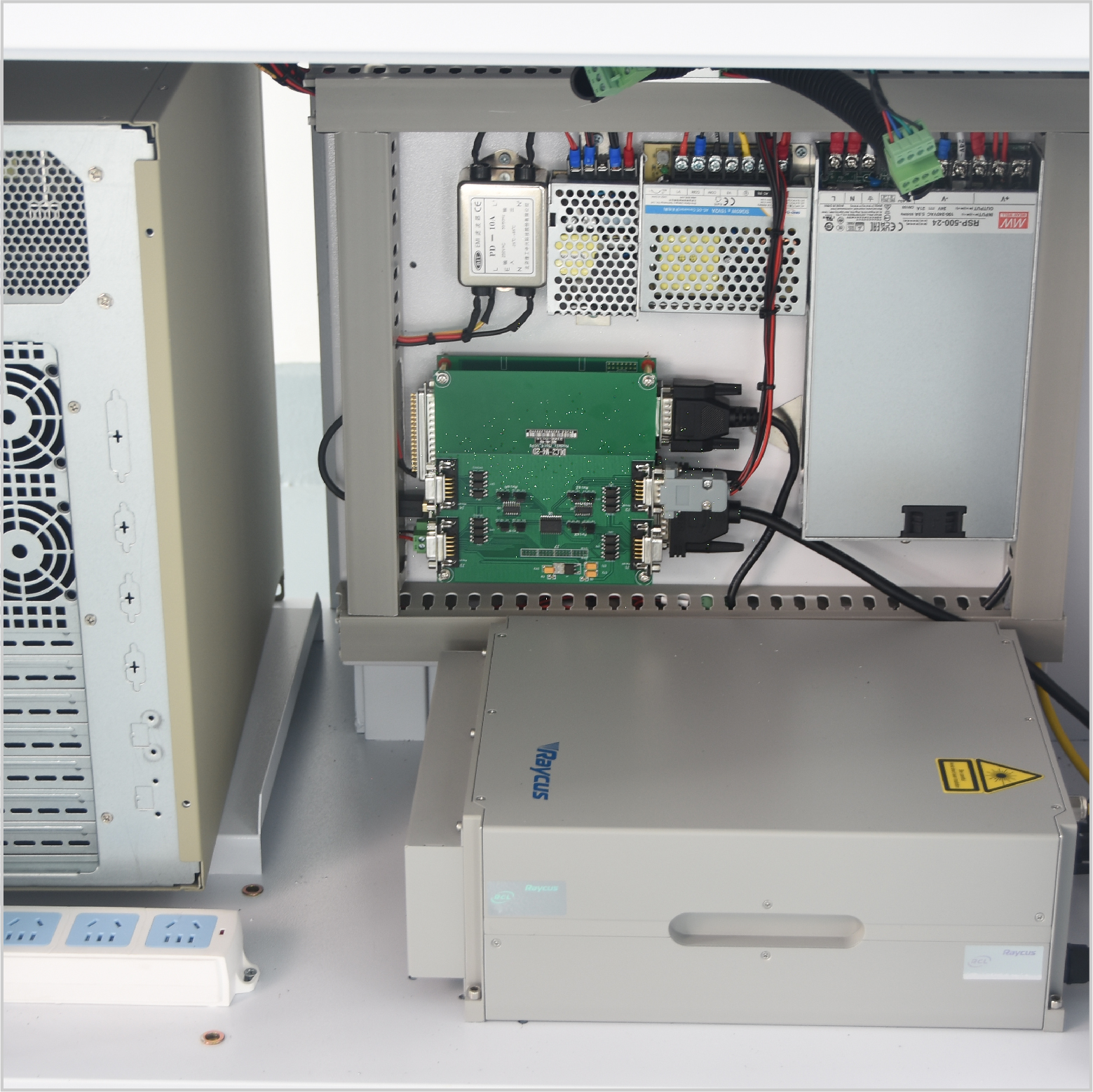

Modular chassis design
Easily troubleshoot and resolve equipment failures
