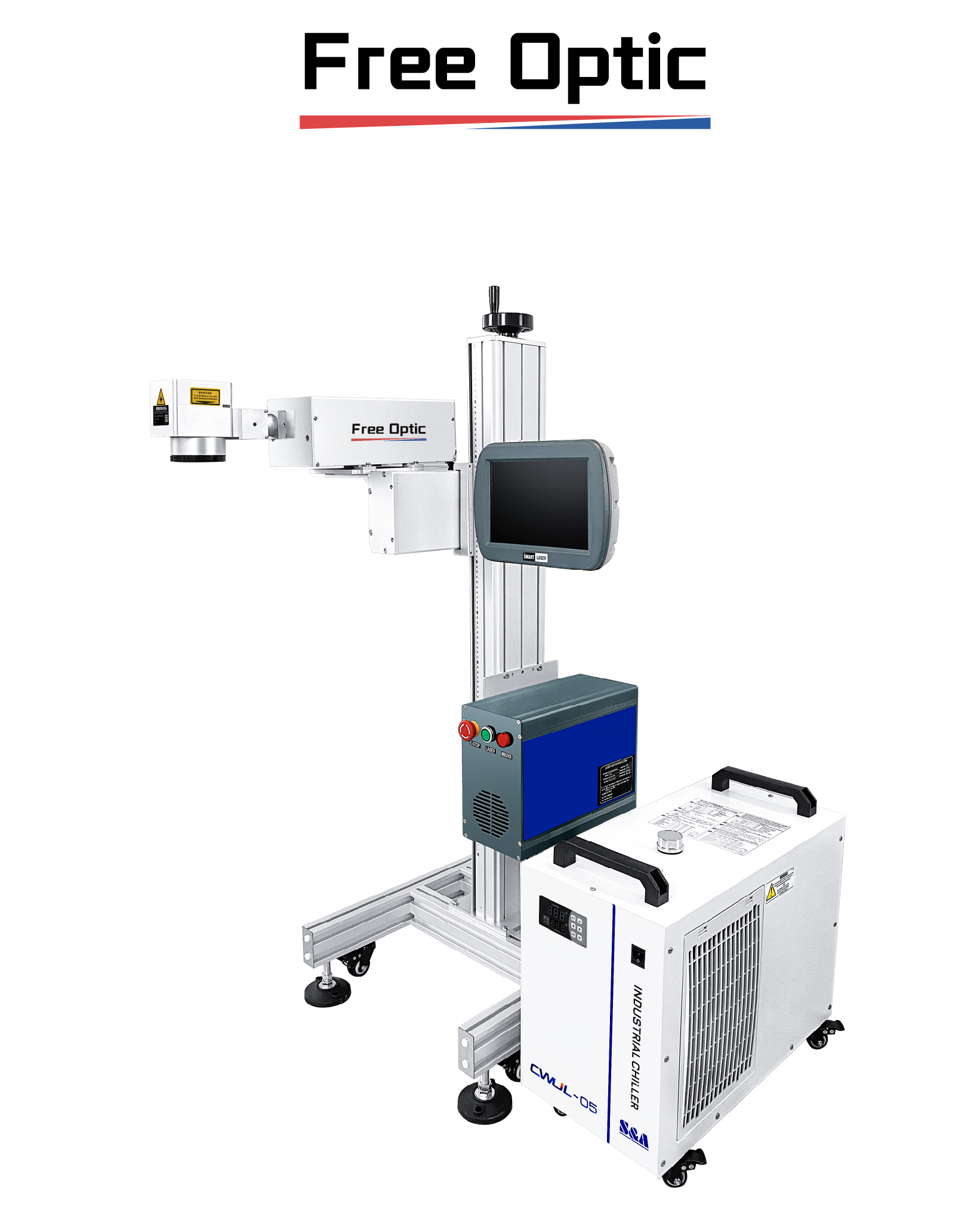

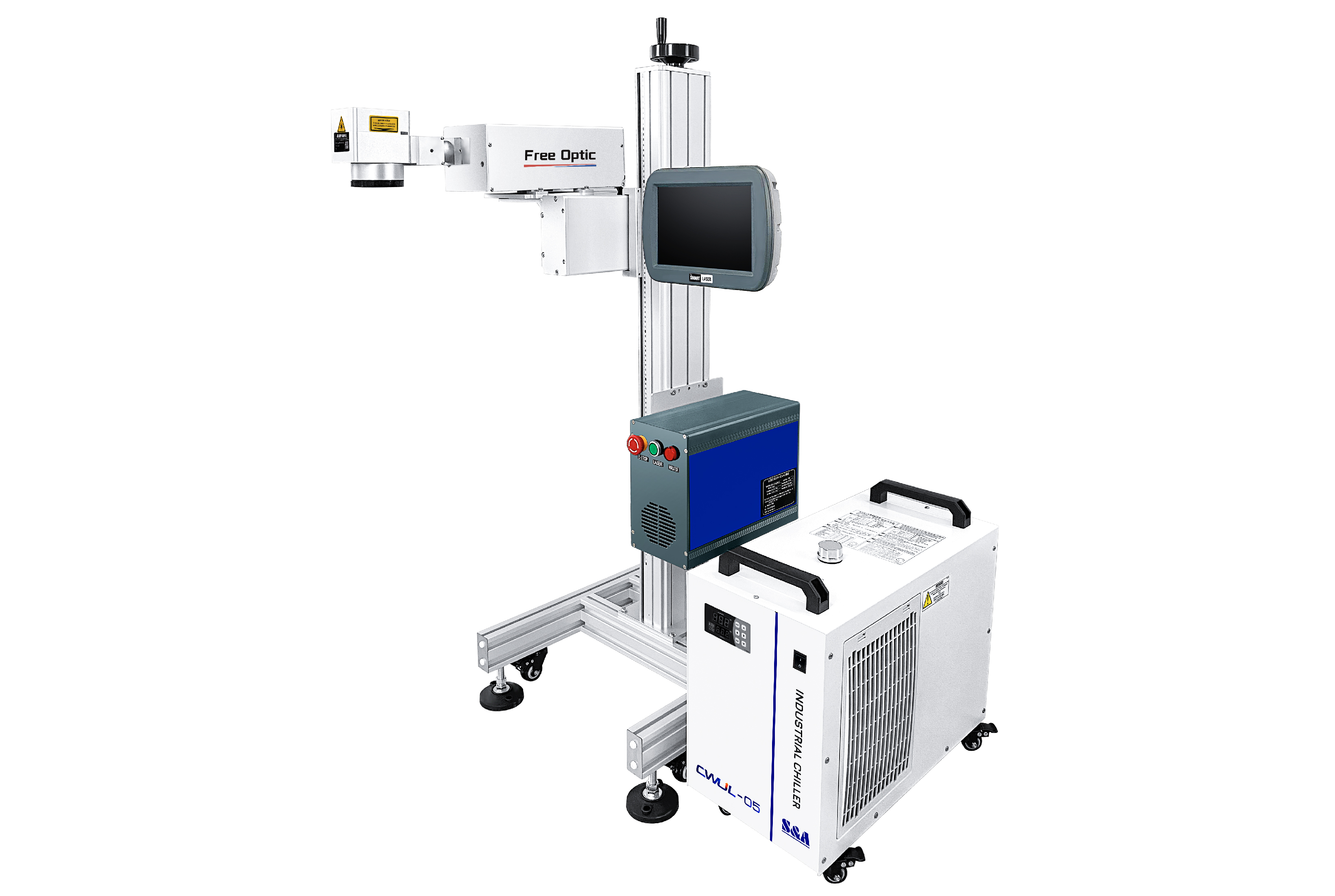

Laser Marking Machine 3W 5W 10W 15W 20W Fiber Co2 UV Laser Marking Machine Online Flying Laser Engraving Printing Machine
This series of laser marking machines has a very small focused spot and a small processing heat-affected zone. It will not produce thermal effects or cause problems such as material burning. It has fast marking speed, high efficiency, stable performance, small size and low power consumption. and other advantages, it is the first choice product for customers who have higher requirements for marking effects.

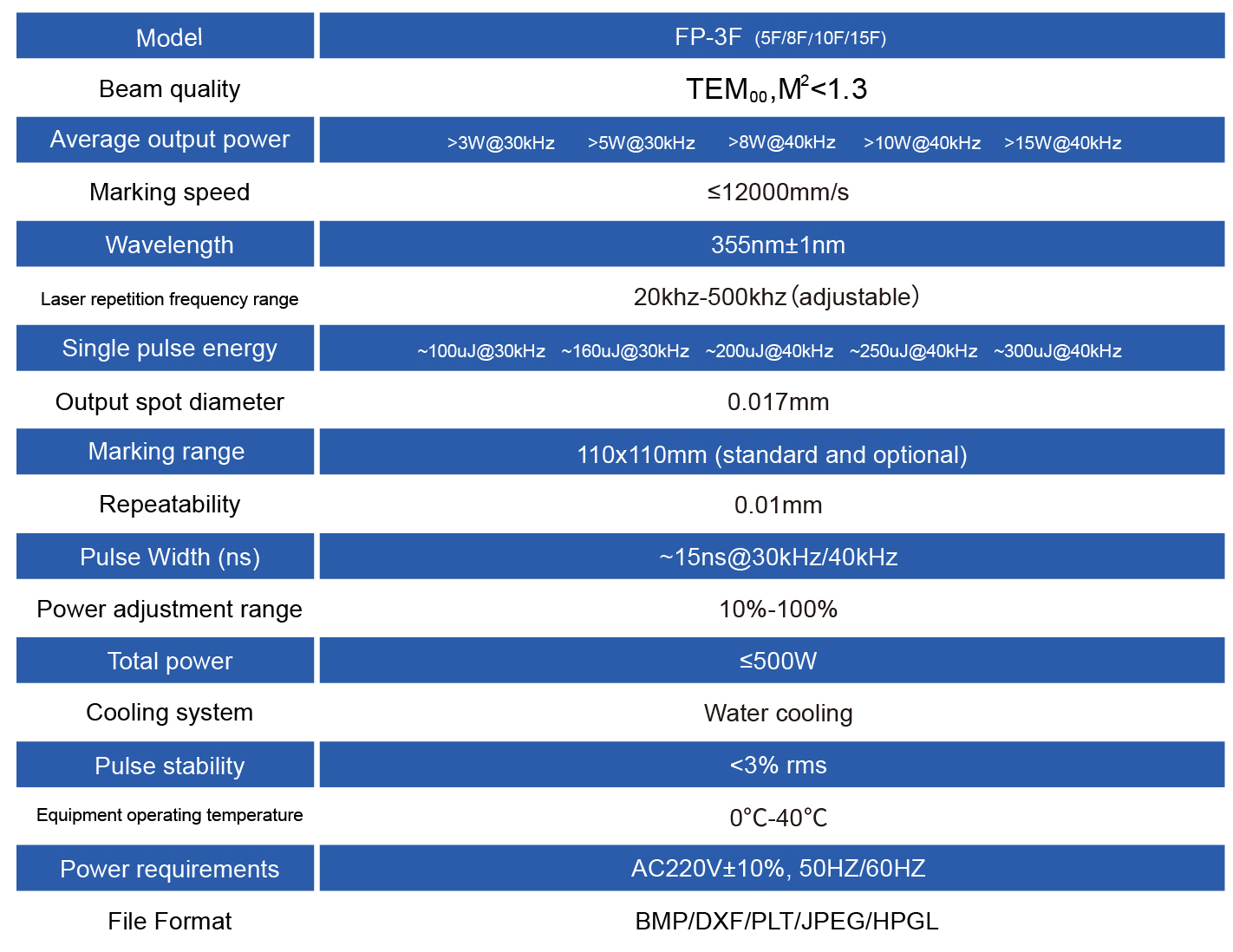

| FP-10F UV Laser Marking Machine Technical Parameters | |||||
| 1 | Model | FP-10F | |||
| 2 | Beam quality | TEMoo,M2<1.3 | |||
| 3 | Average output power | 3W@30kHz >5W@30kHz >8W@40kHz >10W@40kHz >15W@40kHz | |||
| 4 | Marking speed | ≤12000mm/s | |||
| 5 | Wavelength | 355nm±1nm | |||
| 6 | aser repetition frequency range | 20khz-500khz (adjustable) | |||
| 7 | Single pusle energy | ～100uj@30kHz ~160uJ@30kHz ~200uJ@40kHz ~250uJ@40kHz ~300uJ@40kHz | |||
| 8 | Output spot diameter | 0.017mm | |||
| 9 | Marking range | 110x110mm | |||
| 10 | Repeatability | 0.01mm | |||
| 11 | Pulse width(ns) | ~15ns@30kHz/40kHz | |||
| 12 | Power adjustment range | 10%-100% | |||
| 13 | Total Power | ≤500W | |||
| 14 | Cooling system | Water cooling | |||
| 15 | Pulse stability | <3% rms | |||
| 16 | quipment operating temperature | 0℃-40℃ | |||
| 17 | Power requirements | AC220V土10%，50HZ/60HZ | |||
| 18 | File Format | BMP/DXF/PLT/JPEG/HPGL | |||
Easy Operation
With the basics of computer use, you can start to operate the machine within 30 minutes of training.e use.
Low failure rate
Each component adopts the domestic first-line brand to ensure the stability of the product, and the 48-hour aging test method can be packaged and shipped before leaving the factory.
Low environmental requirements
0.5M², the whole machine is small and compact, and can adapt to harsh processing environments.
Red light positioning
Using red light positioning system, convenient positioning and high positioning accuracy.
Extensions
Can be extended with additional functions. Such as circular marking, X Y electric workbench, automatic feeding flight marking, etc.
Computer program
Marking is carried out automatically, marking English, numbers, Chinese characters, graphics, and the printing content can be changed arbitrarily.
1. What should I do if there is a problem with the machine during use?
Cooperate with Free Optic, please don't worry about after-sales problems. Once there is any problem with the machine, please contact us at the first time, we have a professional technical team to solve it for you at the first time.
2. What should I do if I can't operate the machine for the first time?
Please don’t worry, the machine operation is very simple.
The operation video and usage manual will be provided with the machine together.
Our engineer will do training online if you need.

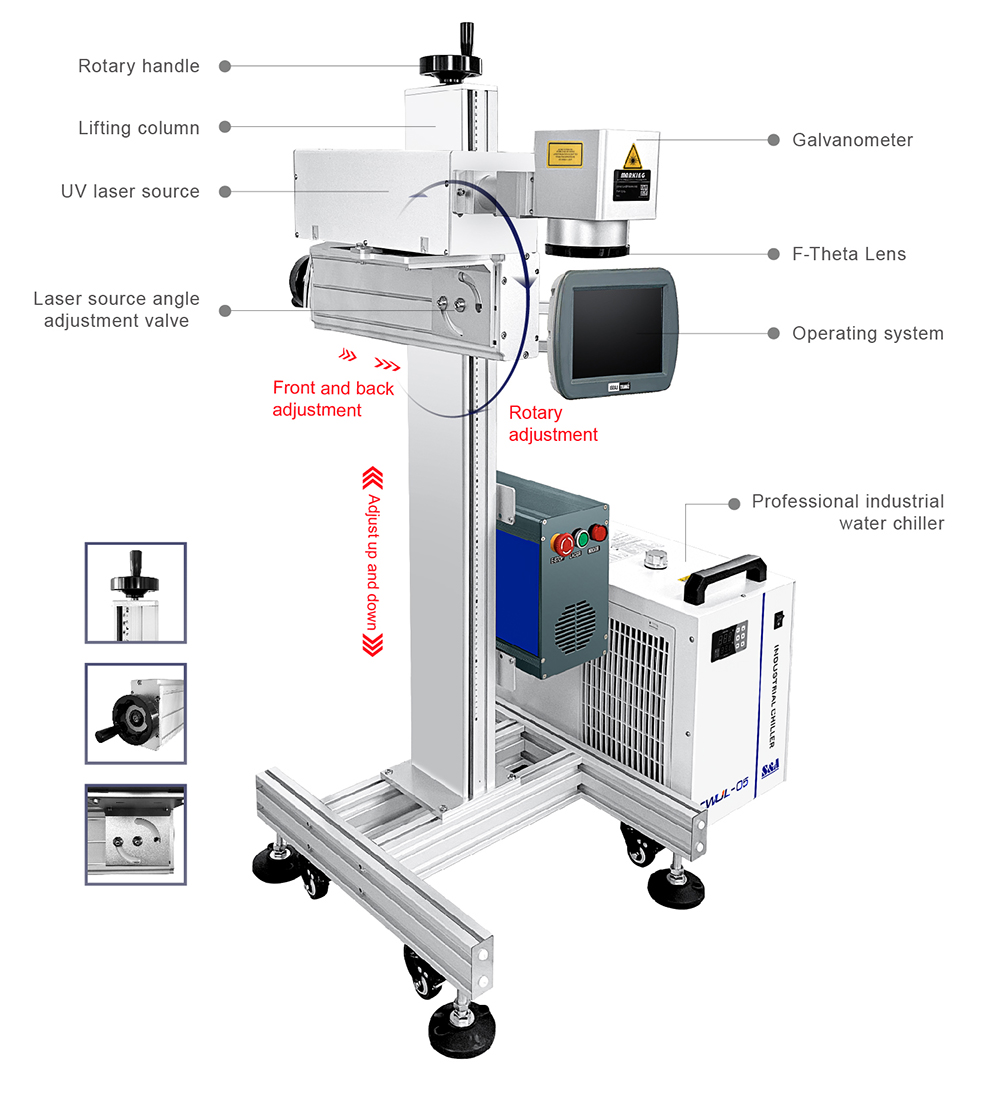

We use China made first-class brand UV laser source, which have stable performance and long service life. The water-cooled cooling system makes the machine performance more stable and the beam quality better!

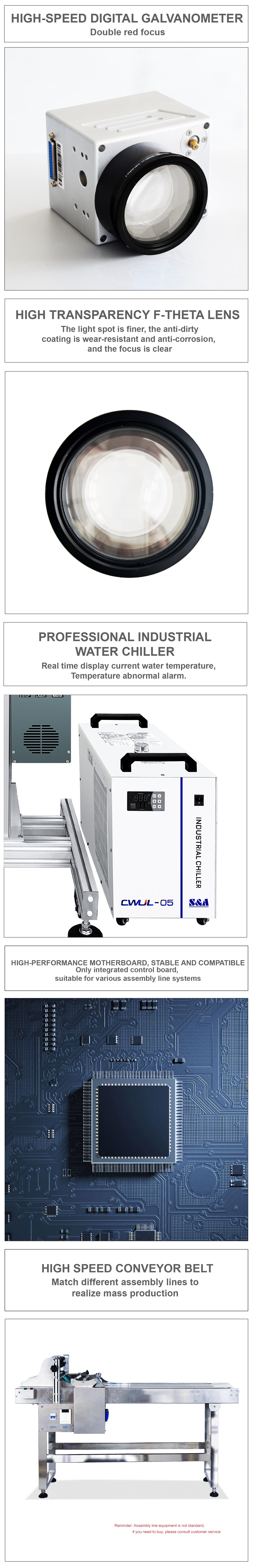

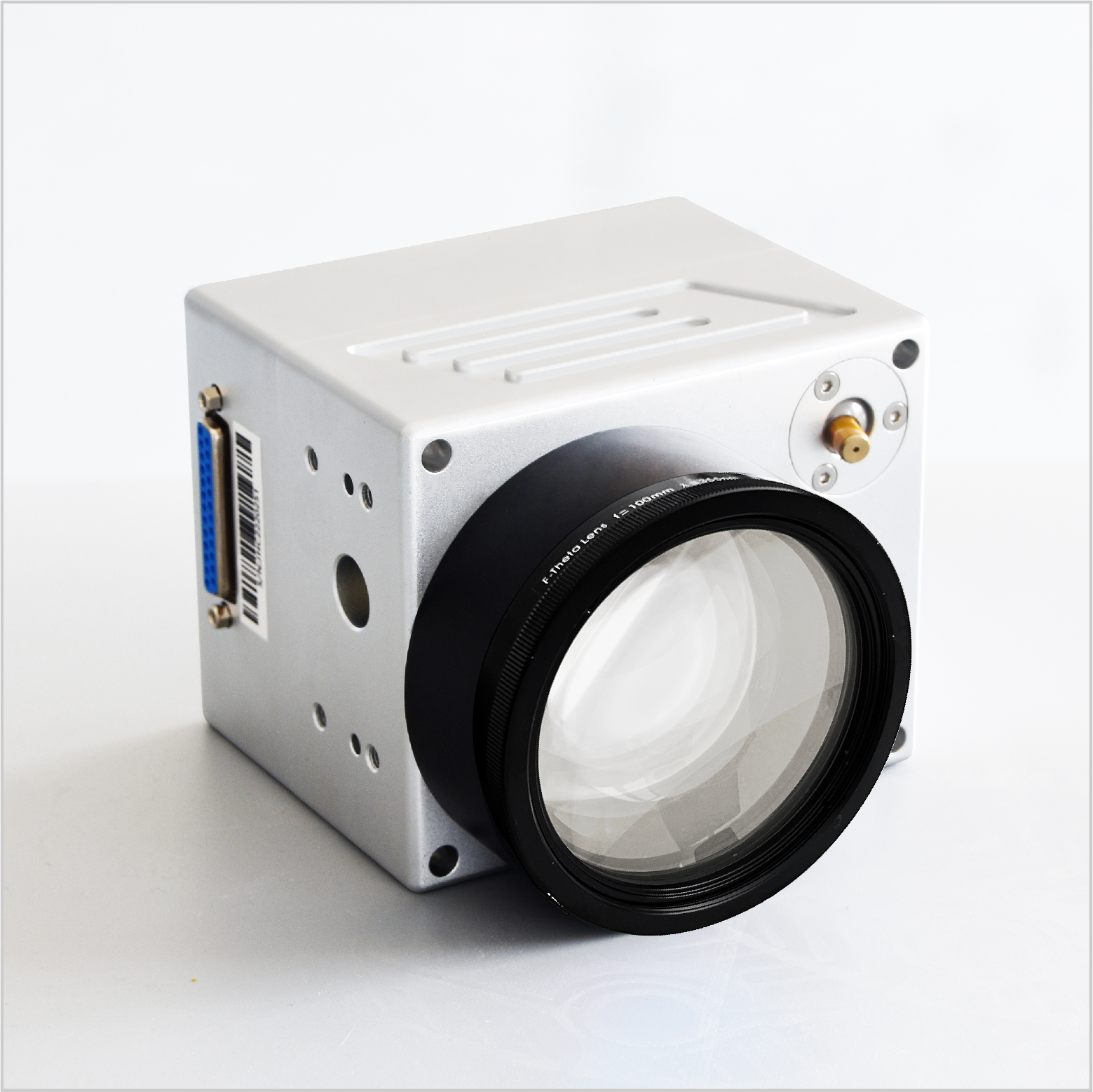

High-speed digital galvanometer with dual red lights, making finding focus easier and marking speed more efficient and precise

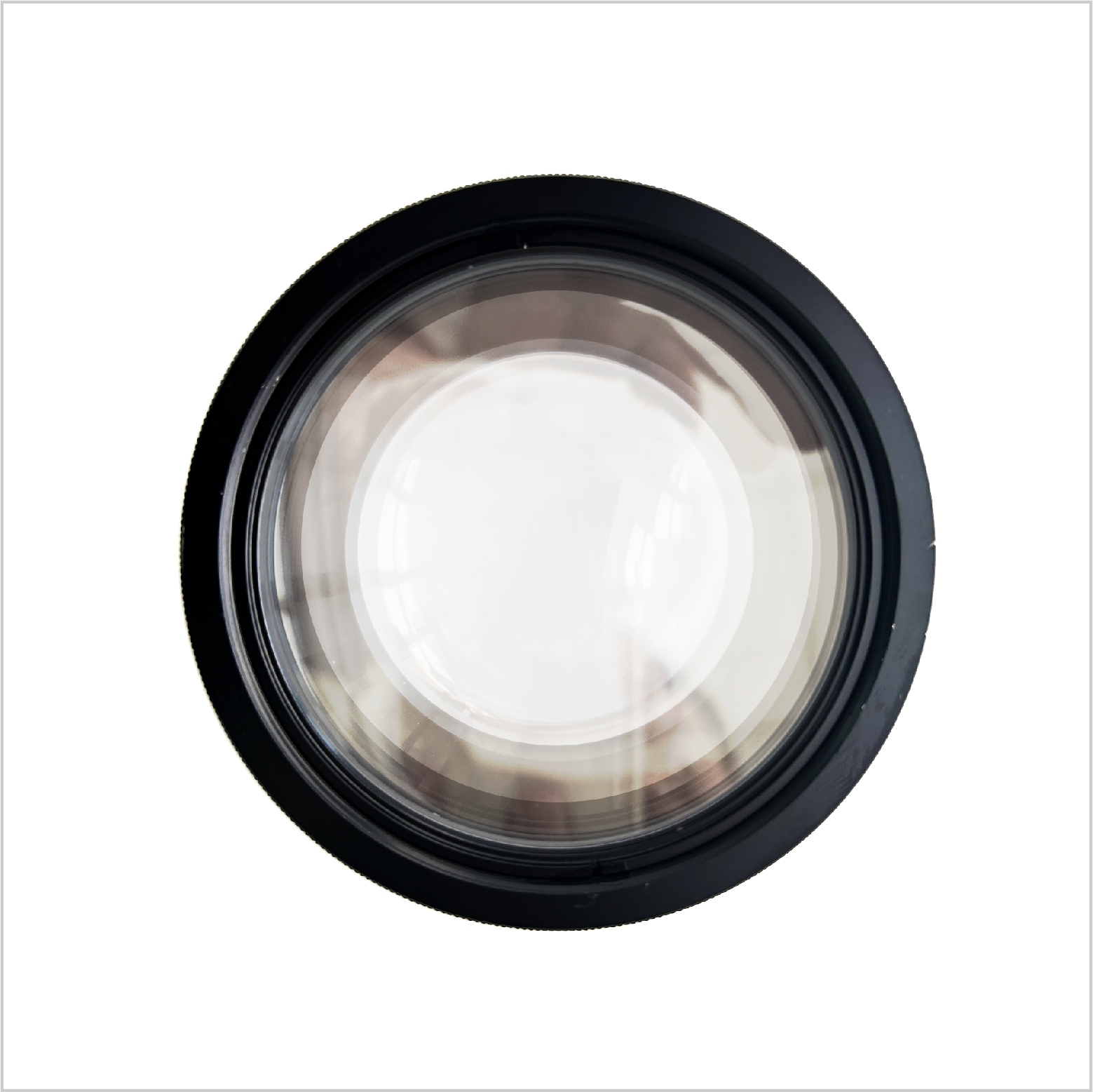

High Transparency F-theta Lens
The light spot is finer, the anti-dirty coating is wear-resistant and anti-corrosion, and the focus is clear

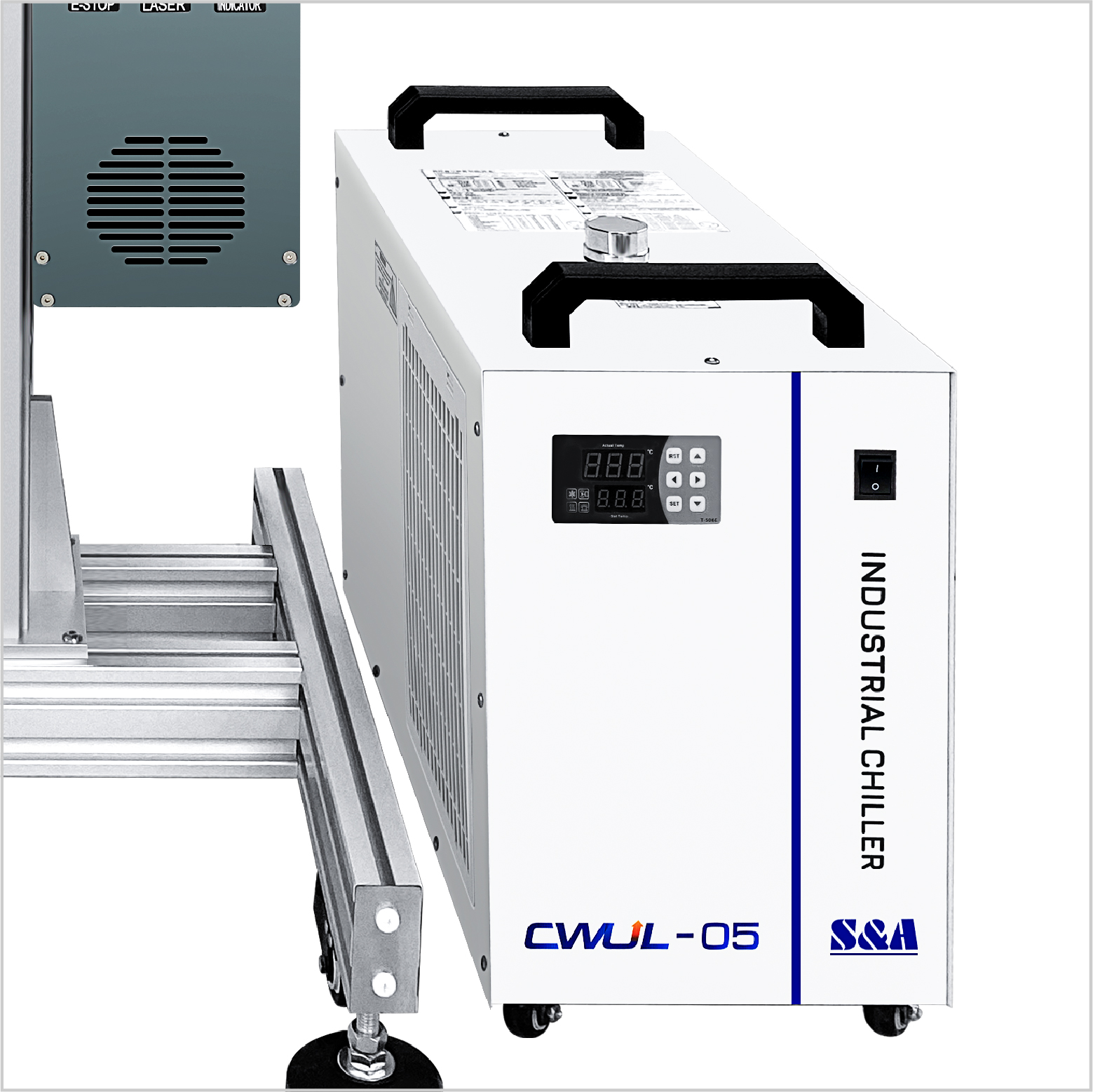

Professional industrial water chiller
Real time display current water temperature, Temperature abnormal alarm.

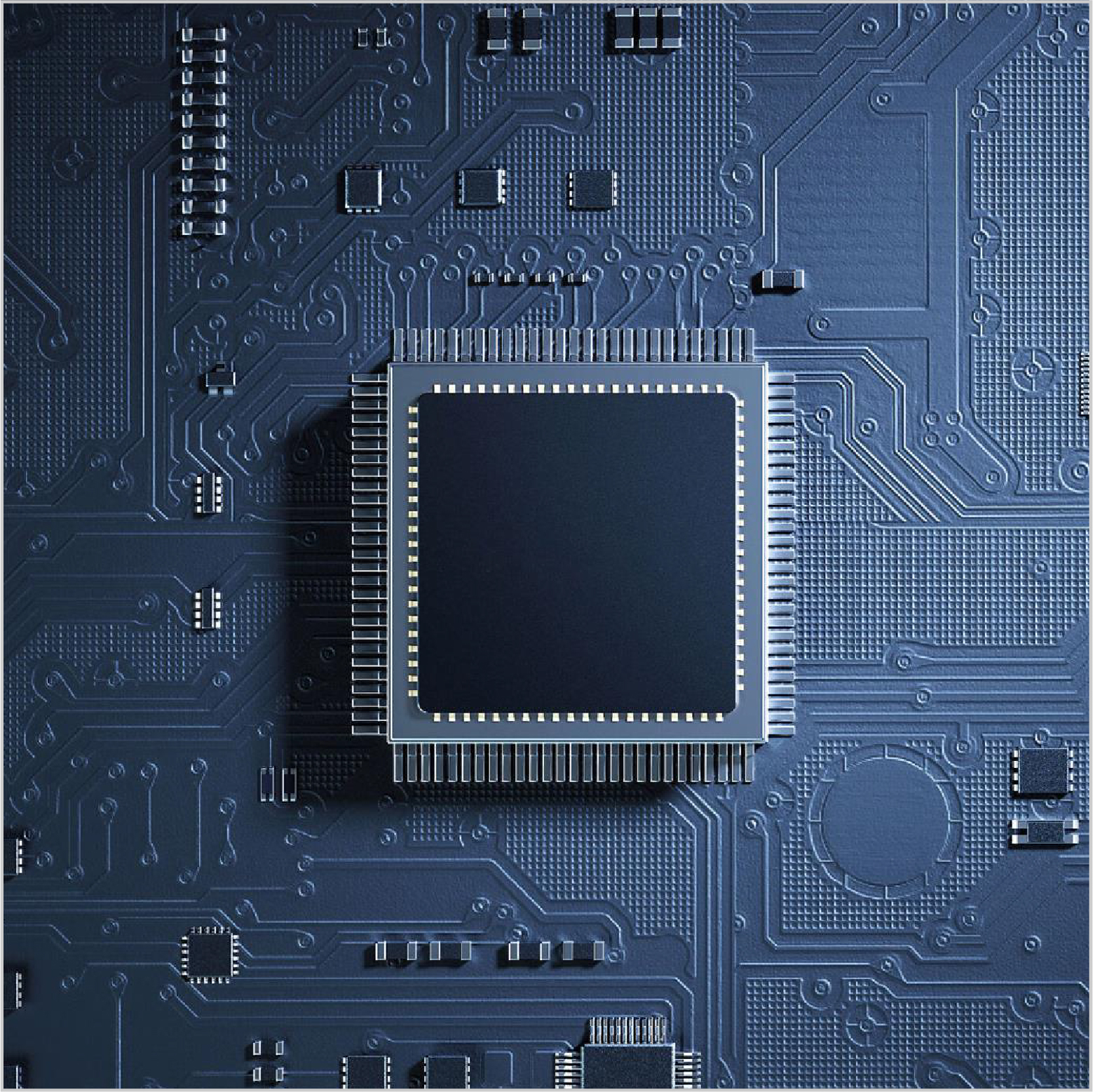

High-performance motherboard, stable and compatible
Only integrated control board, suitable for various assembly line systems

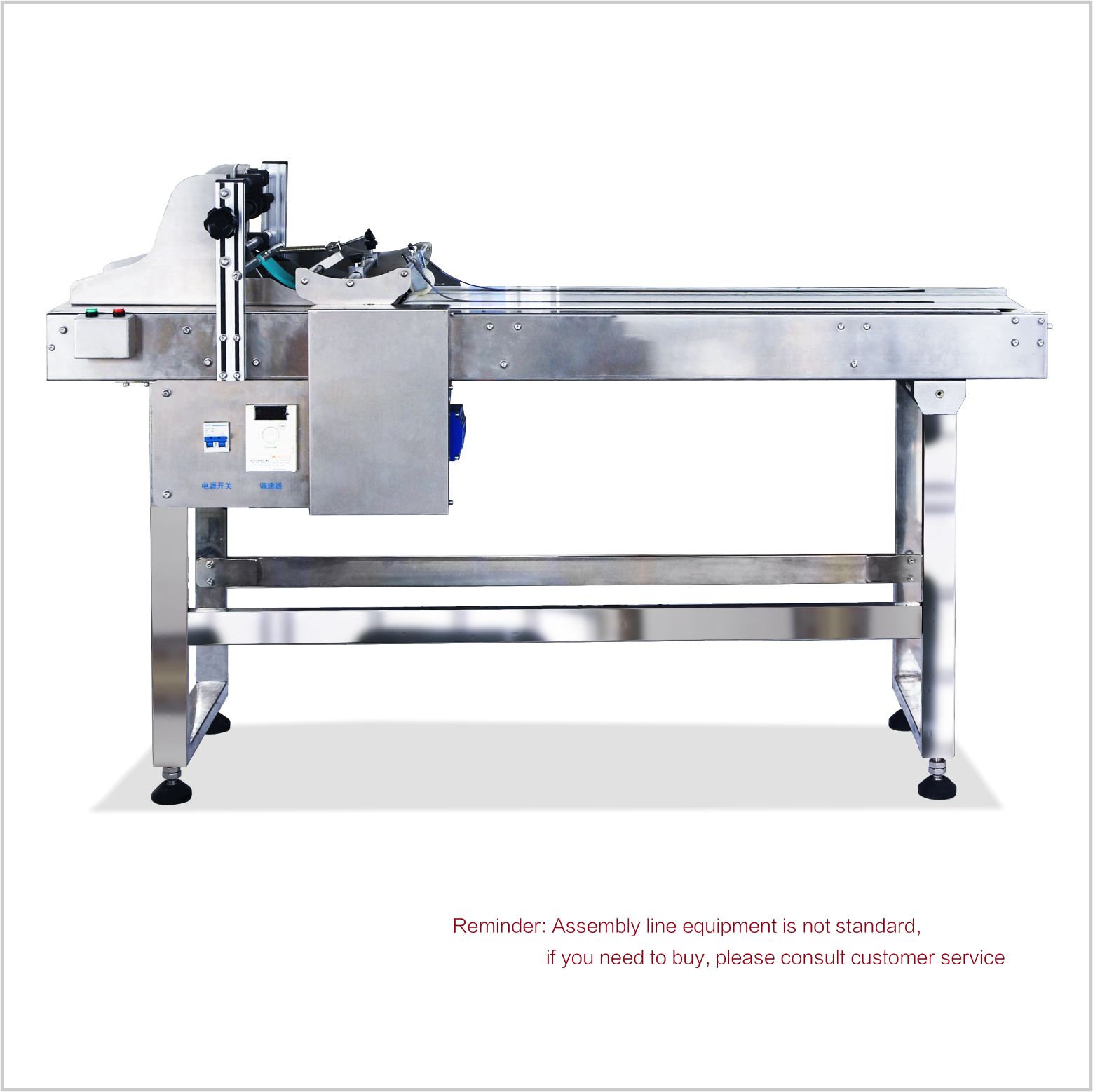

High speed conveyor belt （Optional）
Match different assembly lines to realize mass production
